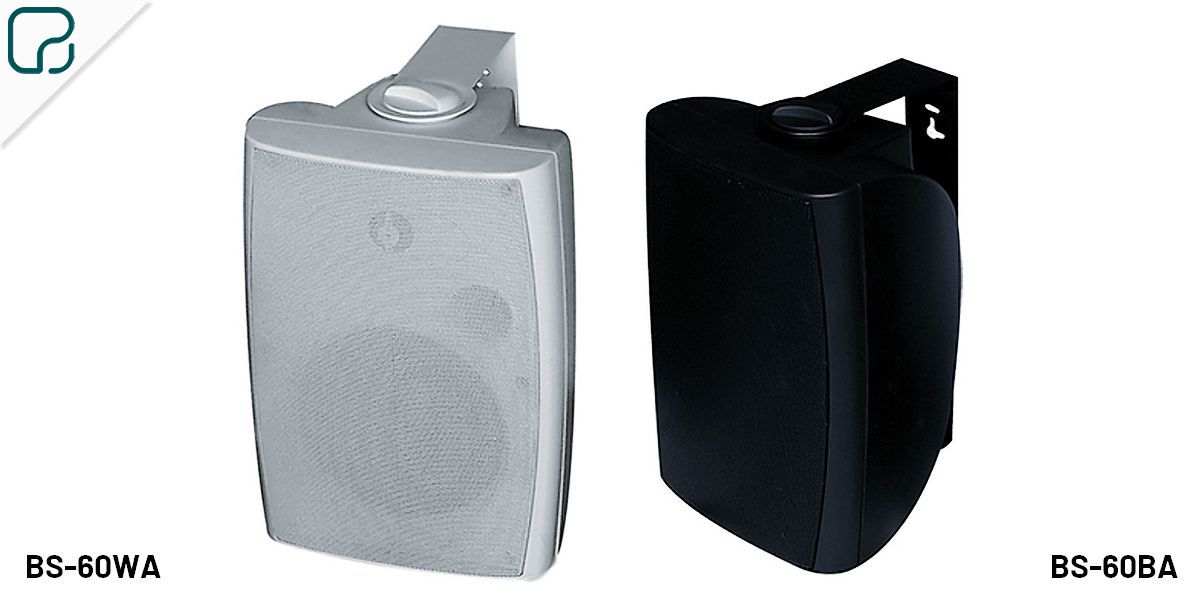

BS-60WA

Product Code : BS-60WA

Brand Category : Low and medium powerS

Description

Two-way speaker with 8” woofer and 1” twitter, maximum power of 60 W RMS in 100 V line, with power taps of 30, 15 & 7.5 W. Also available the low impedance connection of 8 ohms. BS-60BA Black colour BS-60WA White colou

Technical Specification

Speaker	Woofer 8”, tweeter 1”
Output power RMS	60 W
Power taps 100 V	60, 30, 15 & 7.5 W
Power taps 70 V	60, 30, 15, 7.5 & 3.75 W
Sensitivity	88 dB SPL(1 W, 1 m, 1 kHz)
Sound Pressure	106 dB SPL (60 W, 1 m, 1 kHz)
Frequency Range	40 ~ 20.000 Hz
Dimensions (mm)	289 (width) x 417 (height) x 255 (depth)
Weight	6,6 kg
Finish	Box in ABS & powder coated iron grille
Colour	Black (BS-60BA), White (BS-60WA)
Mounting	U type mounting bracket
