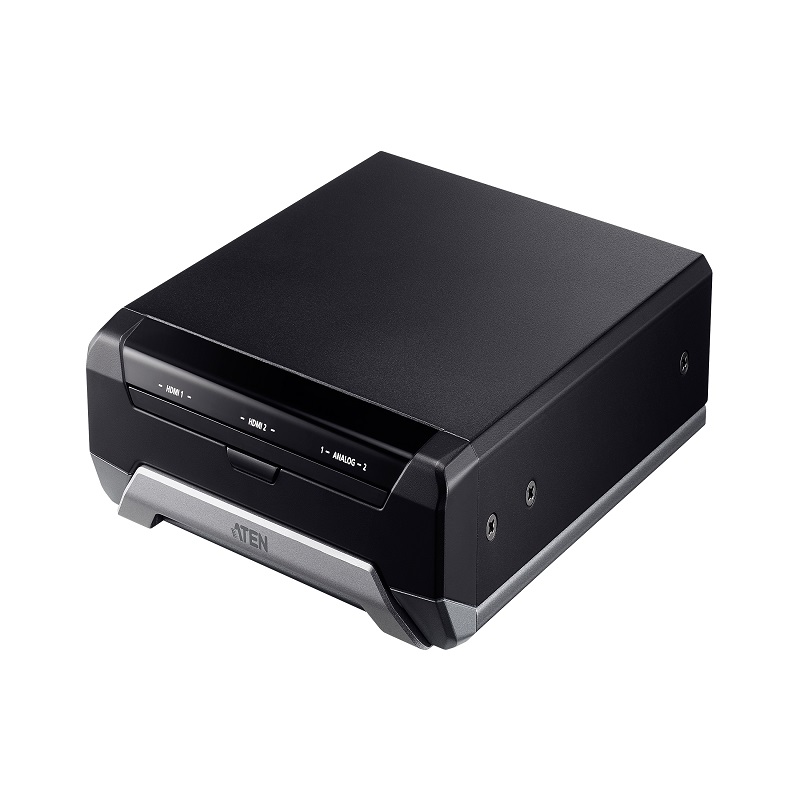

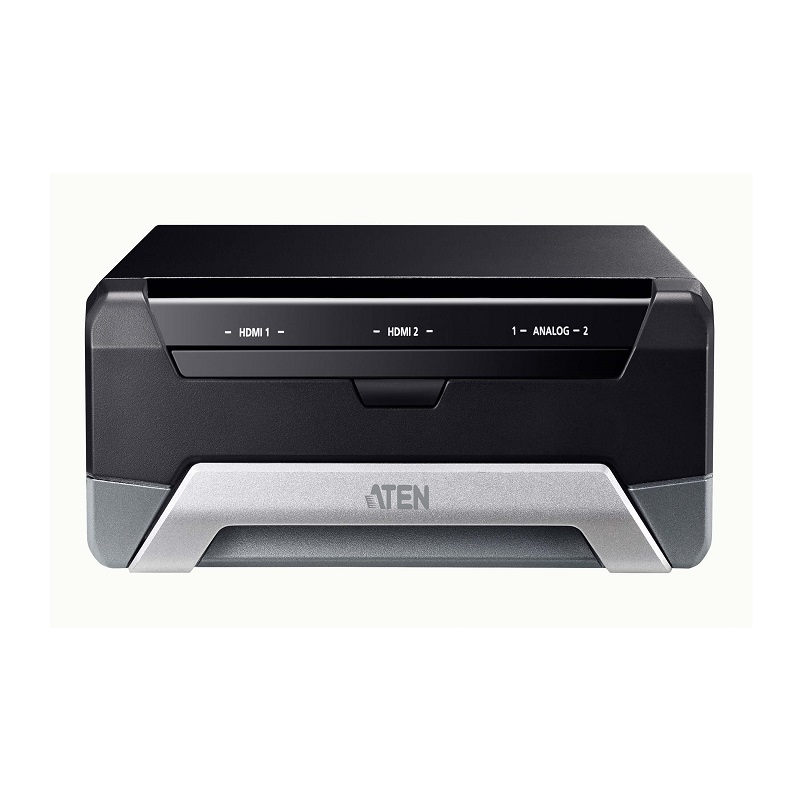

CAMLIVE™ PRO (Dual HDMI to USB-C UVC Video Capture)

Product Code : UC3022

Brand Category : Capture

Description

Mix and capture two non-HDCP 4K live videos at 1080P UVC format on PC or mobile device via USB 3.x interface with seamless transition
Intuitive Android / iOS App control –
- set up your camera gear and direct your show from anywhere
- Multi-Crop function with 4K resolution input capability, users can crop multiple images from the connected HDMI inputs, resize and insert them into different scenes
- Remote Deck function customize up to 18 hotkey buttons to fully control the OBS or other streaming software installed on the host device
Supports real-time HDMI program video preview
Easily identifi able chroma keys – allows users to appear anywhere they want by changing the background
Provides audio mixer with additional dual analog audio inputs
Supports protected video switching mode for regular event usage
Compatible with USB & Thunderbolt 3 (USB-C) specification specification

Technical Specification

Connectors
Video In	2 x HDMI Type A Female (Black)
USB Port	USB 3.2 Gen1 Type-B Male (Blue) (USB-B to USB-C and USB-B to USB-A cable package included)
Video Output	1 x HDMI Type A Female (PGM Video, Black)
Audio Inputs	1x balanced analog audio via XLR connectors 1x unbalanced audio via RCA connectors.
Video Resolution	Video input: 2160p30/25/24, 1080p60/50/30/25/24, 720p60/50 , HDMI unencrypted PGM video out: 1080p60/50/30/25/24, 720p60/50, HDMI unencrypted (Support encrypted PGM output at 2160p30/25/24, 1080p60/50/30/25/24, 720p60/50 with UVC capture disabled)
Audio Sampling	16-bit PCM audio, 44.1KHz and 48KHz
Output	Uncompressed 1080p60 & 720p60 UVC video stream with UAC audio (Uncompressed video stream is only available on USB3.1 connection)
Environmental
Operating Temperature	0 - 40 ºC
Storage Temperature	-20 – 60 ºC
Humidity	0 - 80% RH, Non-Condensing
Minimum Hardware Requirements	PC/Mac: CPU: Intel® i3 Dual Core 2.8Ghz or higher RAM: 4GB or more One USB-C interface or USB-A interface Smartphone: Android device with UVC support and USB-C interface* *For detail UVC compatible device list, please refer to following info revealed by third party App. https://www.camerafi.com/supported-devices/
Connection	Bluetooth Low Energy(BLE) technology
OS Support	Windows 10 and above * Mac OS X 10.13 and above Android 5.x and above or iOS 10.1 and above , with Bluetooth 4.2 or higher supporting Bluetooth Low Energy (BLE) *Window 7 requires driver installation
Physical Properties
Housing	Metal
Weight	0.68 kg ( 1.5 lb )
Dimensions (L x W x H)	13.00 x 15.18 x 4.25 cm (5.12 x 5.98 x 1.67 in.)
