DA-4PM/0F2

DA-4PM/0F2

Product Code : DA-4PM/0F2

Brand Category : Modular class D amplifiers


Description

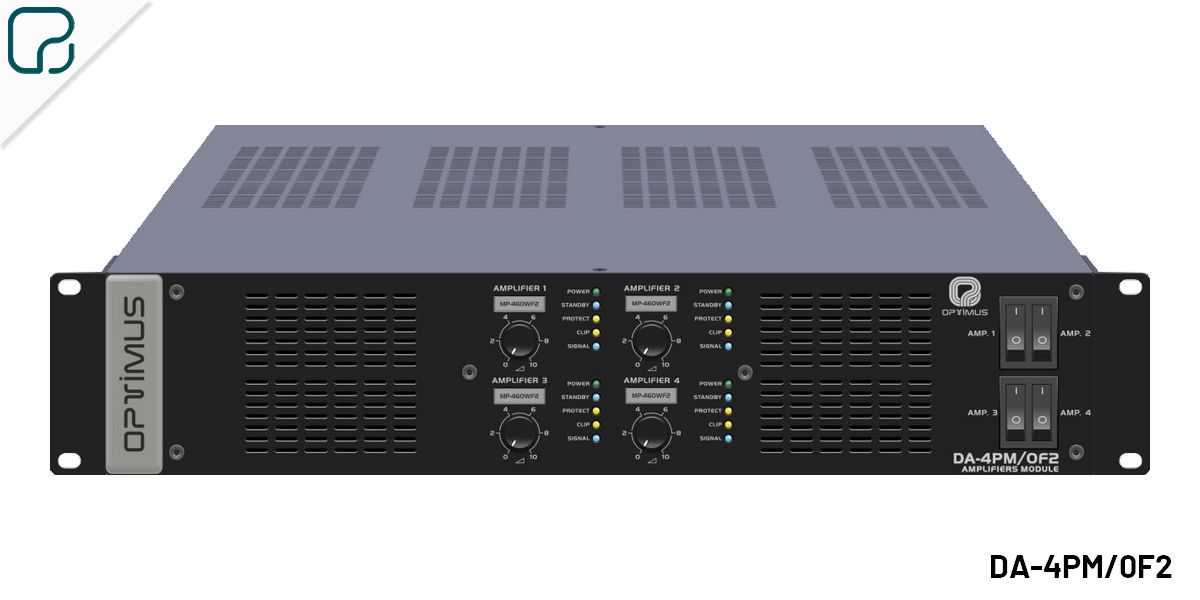

Class D digital power unit with four independent amplifiers integrated in a single chassis. Includes four symmetric inputs, four loudspeaker outputs for 100-V line, independent volume controls for each of the inputs, protection circuits against peaks, short-circuits, overheating and overloading, and LED indicators for power supply, signal, peak and protection.


Add to Query Cart PDF Download


Technical Specification


Power supply

230 Vac, 50 Hz

Nominal power

4 x 120 W

Loudspeaker output

4 x 100-V

Input signal

4 x 775 mV/0 dB

Frequency response

80 ~ 18,000 Hz

Signal-to-noise ratio

> 85 dB

Harmonic distortion THD

< 0.1%

Refrigeration

fans

Consumption

600 W

Dimensions (mm)

484 x 88 x 400 (2 u rack)

Weight

8.5 Kg
