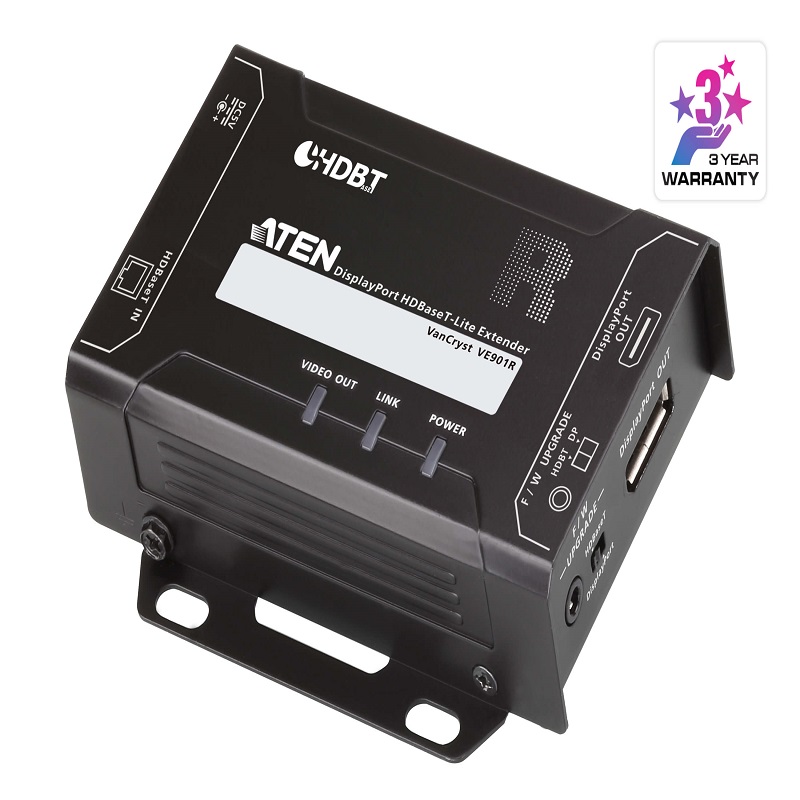

DisplayPort HDBaseT-Lite Receiver (4K@40m; 1080p@70m)

Product Code : VE901R

Brand Category : Video Extenders

Description

HDBaseT Connectivity – extends a DisplayPort connection up to 70 meters via a single Cat 6a cable or ATEN 2L-2910 Cat 6 cable
DisplayPort v1.1*; HDCP 1.4 compliant
Superior video quality – 4K @ 35 m (Cat 5e/6) / 40 m (Cat 6a/ATEN 2L-2910 Cat 6 cable) and 1920 x 1080 @ 60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat 6 cable)
HDBaseT Anti-Jamming – resists signal interference during video transmission using HDBaseT technology
Featuring 3.3V / 500mA power output for powering auxiliary devices
Plug-and-play
Rack-Mountable
*Note:
DisplayPort v1.1 supports up to 4Kx2K @ 30Hz.

Technical Specification

Video Output
Interfaces	1 x DisplayPort Female (Black)
Impedance	100 Ω
Video
Max. Data Rate	10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock	297 MHz
Compliance	DisplayPort (Deep Color, 4K) HDCP Compatible
Max. Resolutions / Distance	Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60m (Cat 5e/6) / 70m (Cat 6a//ATEN 2L-2910 Cat6) *4K supported: 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input	N/A
Output	1 x DisplayPort Female (Black)
Connectors

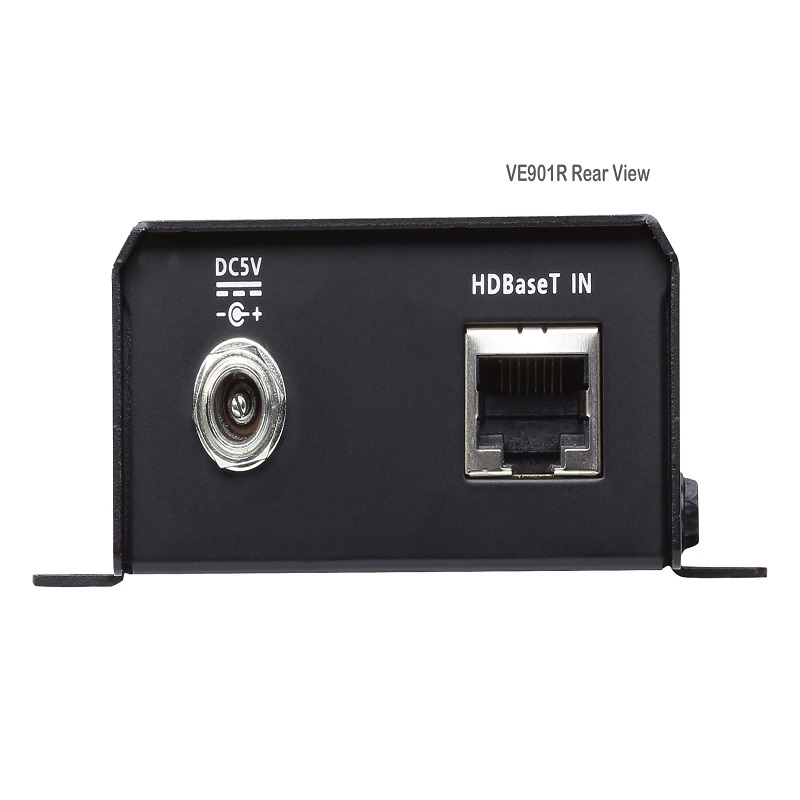

Power	1 x DC Jack (Black) with locking
Unit To Unit	1 x RJ-45 Female
Power Consumption	DC5V:5.72W:27BTU
Environmental
Operating Temperature	0-40°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.27 kg ( 0.59 lb )
Dimensions (L x W x H) with bracket	9.77 x 8.70 x 3.00 cm (3.85 x 3.43 x 1.18 in.)
Dimensions (L x W x H) without bracket	9.42 x 6.60 x 2.90 cm (3.71 x 2.6 x 1.14 in.)
