DisplayPort HDBaseT-Lite Transmitter with EU Wall Plate / PoH

Product Code : VE1901AEUT

Brand Category : Video Extenders

Description

Extends DisplayPort signals with superior video quality over a single Cat 5e/6/6a cable or ATEN 2L-2910 Cat 6 cable
• 4K up to 40 m
• 1080p up to 70 m
Built-in PoH (Power over HDBaseT) function – the VE1901AEUT receives power supply from the HDBaseT output port
DisplayPort (Deep Color, 4K); HDCP compliant
Designed to mount in a 1-gang junction box with EU wall plate
Supports RS-232 channel transmission
HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
Share function – the VE1901AEUT can remotely switch source when connecting to a compatible receiver, e.g., VP1421
LED indication of device status
Built-in 8KV / 15KV ESD protection
DC power and PoH for power redundancy
Plug-and-play

Technical Specification

Video Input
Interfaces	1 x DisplayPort Female (Black)
Impedance	100Ω
Max. Distance	3 m
Video
Max. Data Rate	10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock	297 MHz
Compliance	DisplayPort (Deep Color, 4K) HDCP Compliant
Max. Resolutions / Distance	Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6) *4K supported: 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input	1 x DisplayPort Female (Black)
Control

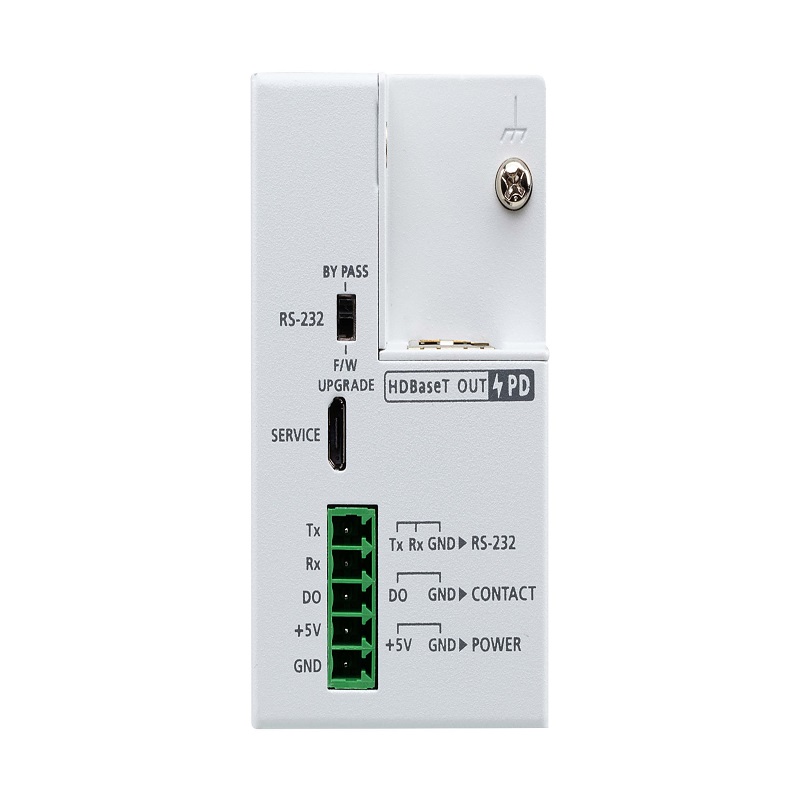

RS-232 Channel	1 x Terminal Block (3 pole, TX/RX/GND, Green)
Contact Out	1 x Terminal Block (2 pole, DO/GND, Green)
Connectors

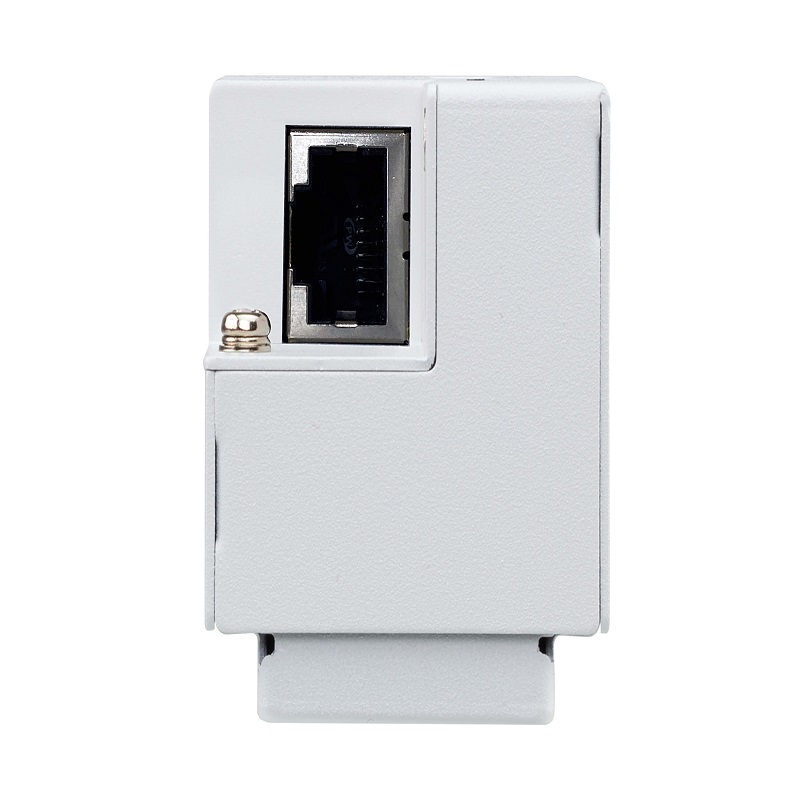

Unit To Unit	1 x RJ-45 Female
Power	1 x Terminal Block (2 pole, +5V/GND, Green) or 1 x RJ-45 Female (POH)
Power Consumption	DC5V:2.97W:14BTU POH:3.71W:17BTU
Environmental
Operating Temperature	0 - 40°C
Storage Temperature	-20 - 60°C
Humidity	0% - 80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	0.20 kg ( 0.44 lb )
Dimensions (L x W x H)	6.86 x 4.44 x 5.00 cm (2.7 x 1.75 x 1.97 in.)
Faceplate Dimensions (L x W x H)	8.60 x 8.60 x 1.60 cm (3.39 x 3.39 x 0.63 in.)
