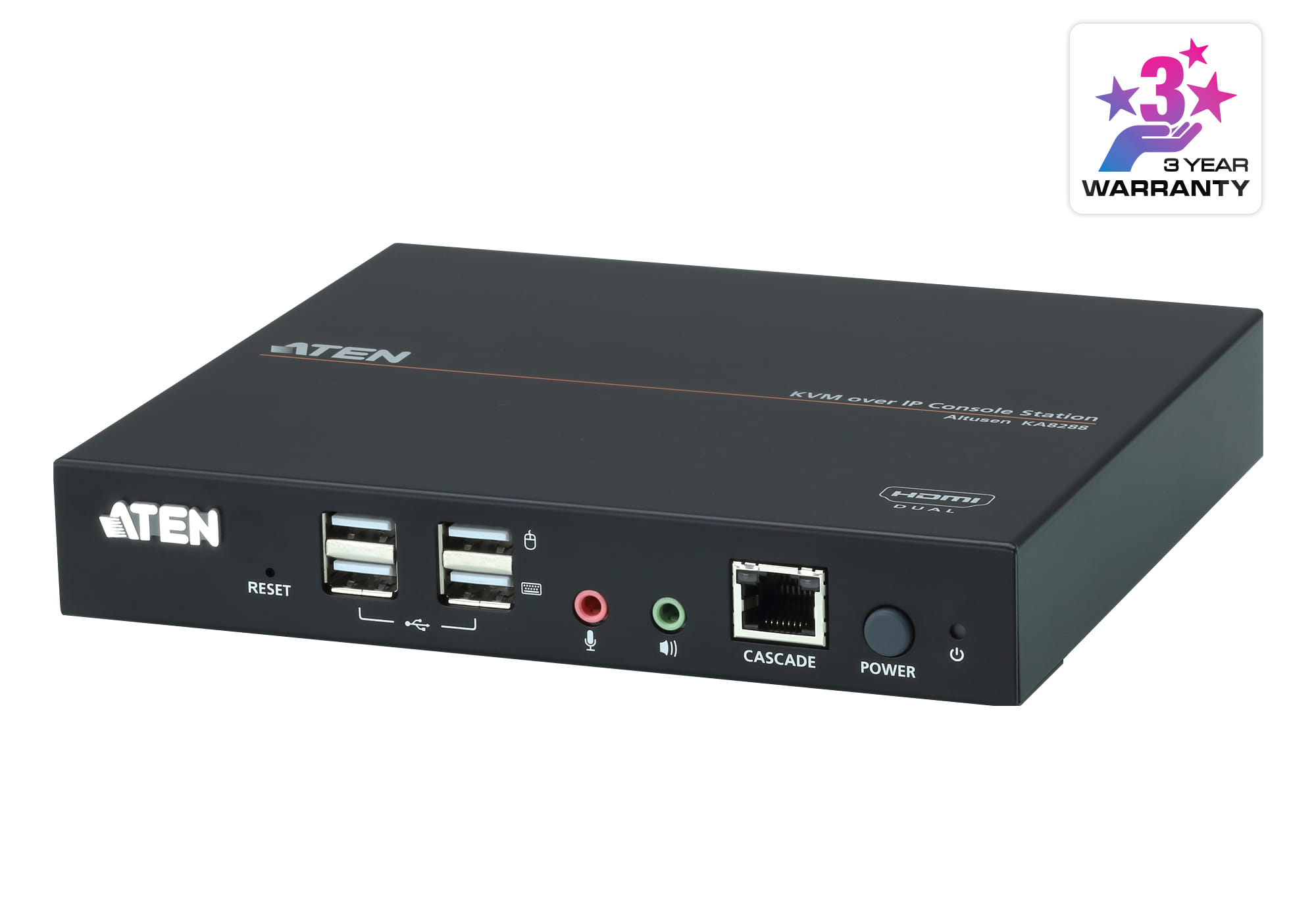

Dual HDMI KVM over IP Console Station

Dual HDMI KVM over IP Console Station

Product Code : KA8288

Brand Category : KVM over IP Switches


Description


  • A standalone Java-free console that replaces PC or NB, enabling users to remotely access and control ATEN’s KVM over IP switches
  • Impenetrable security against virus threats and impervious data protection
  • Single sign-on to consolidate the management of multiple ATEN’s KVM over IP switches
  • Advanced FPGA graphics processor – with a Full HD resolution of 1920 x 1200
  • 2 HDMI video outputs – enables users to multitask across two displays with a single keyboard and mouse
  • Panel Array Mode™ – allows administrators to monitor the video output of up to 64 servers on one screen simultaneously
  • Supports Boundless Switching – allows users to control up to 4 screens between two console stations by using one set of keyboard & mouse
  • Extended desktop – supports extended display for remotely connected PCs on the dual screens of KA8288
  • Share screen – shares screen content from one console station to another for real-time collaboration
  • Supports Telnet / SSH for connecting to and management of console devices
  • Supports RDP / VNC remote management for physical servers / virtual machines*
  • Lock screen password – prevents unauthorized users from accessing the console station when unattended
  • Supports Virtual Media
  • Supports USB Smartcard
  • Wall Mountable – standard mounting kit included
  • Space-saving 0U rack mount design for rear rack mounting
  • GUI with multi-language interface

    Note: The audio function is not supported and it will be available in future firmware updates

Add to Query Cart PDF Download


Technical Specification

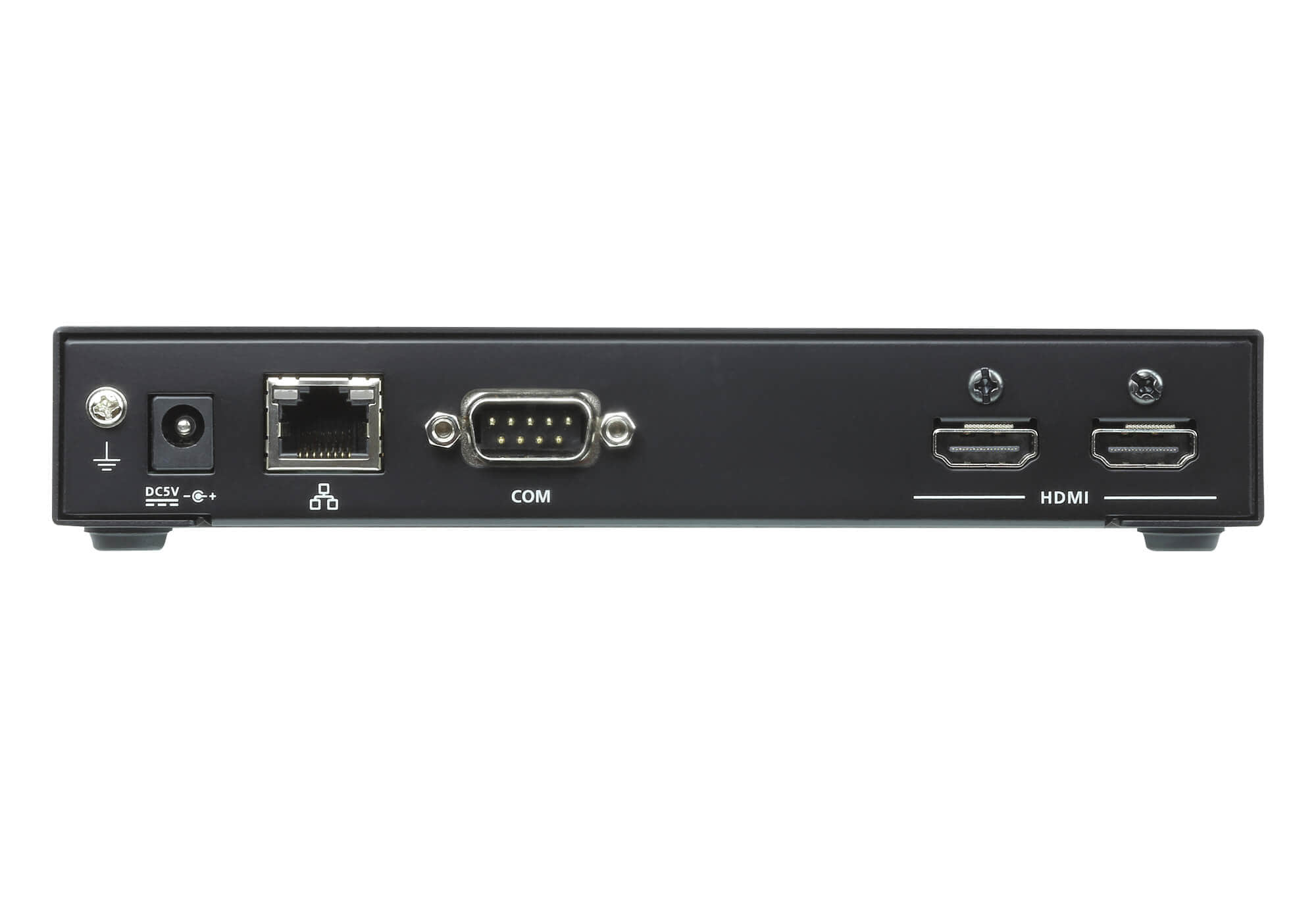

Connectors
Video 2 x HDMI Female
RS-232 1 x DB-9 Male
Power 1 x DC Jack
Audio 2 x Audio Jack Female
LAN Ports 1 x RJ-45 Female
Keyboard 1 x USB Type-A Female
Mouse 1 x USB Type-A Female
USB Port 2 x USB Type-A Female
Cascade Port 1 x RJ-45 Female
LEDs
Power 1 (Blue)
Switches
Power 1 x Push button
Reset 1 x Semi-recessed Push button
Video 1920 x 1200 @ 60Hz
Power Consumption DC 5V:6.53W:56.18BTU
Environmental
Operating Temperature 0 -40°C
Storage Temperature -20 - 60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.80 kg ( 1.76 lb )
Dimensions (L x W x H) 17.42 x 15.54 x 2.88 cm
(6.86 x 6.12 x 1.13 in.)
Compatible Appliances
KVM over IP switches KN1132V, KN2116VA, KN4116VA, KN2132VA, KN4132VA, KN4164V, KN8132V, KN8164V, KN2124VA, KN4124VA, KN2140VA, KN4140VA, CN8000A, KN1000A. KN1108VA, KN1116VA, KL1108V, KL1116V, CN9000, CN9600, CN9950 (up to FHD)
