Dual Rail LCD Console (PS/2-USB, VGA)

Product Code : CL5800

Brand Category : LCD KVM Switches / Consoles

Description

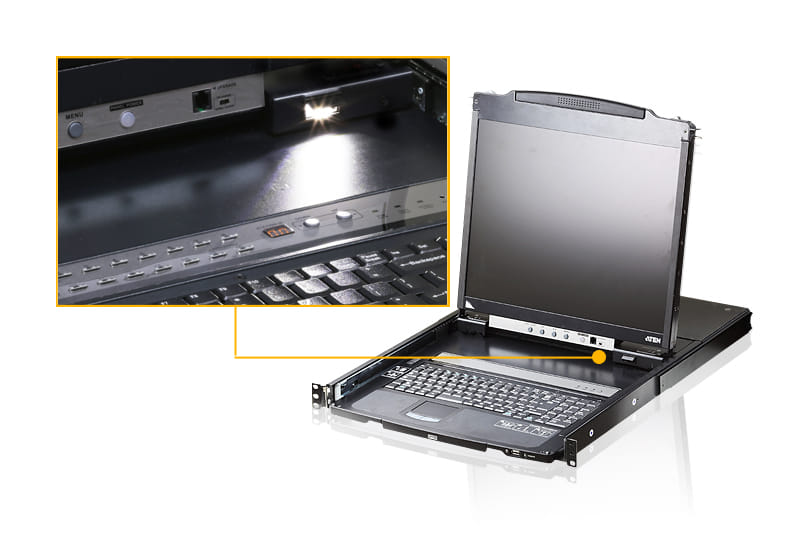

Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Integrated KVM console with a 19"" LED-backlit LCD monitor in a dual rail housing with top and bottom clearance for smooth operation in a 1U high system rack
Standard rack mount kit included
Supports an external console* with either PS/2 or USB connectors
Dual interface - Supports computers and KVM switches with PS/2 or USB keyboards and mice
Additional hot-pluggable USB mouse port on front panel (also functions as USB peripheral port)
Embedded power supply
High video resolution:
• Up to 1280 x 1024 @75Hz
• Supports DDC, DDC2, DDC2B
• DDC emulation of the LCD monitor
• Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor
Standard 105-key keyboard; Sun keyboard emulation
Dual rail design allows LCD monitor and keyboard/touch pad modules to operate independently
Firmware upgradeable
Supports Microsoft Intellimouse (5 keys)
Supports Logitech and Microsoft wireless mice
Optional rack mount kits available including easy installation options
Console lock - enables the console drawer to remain securely locked away in position when not in use

* Connect to a KVM over IP solution (e.g. CN8000A) for over-the-Internet access at a remote location.

More information about ""Easy Rack Mounting""...

Technical Specification

Function	CL5800N
Computer Connections
Direct	1
Console Selection	Hotkey

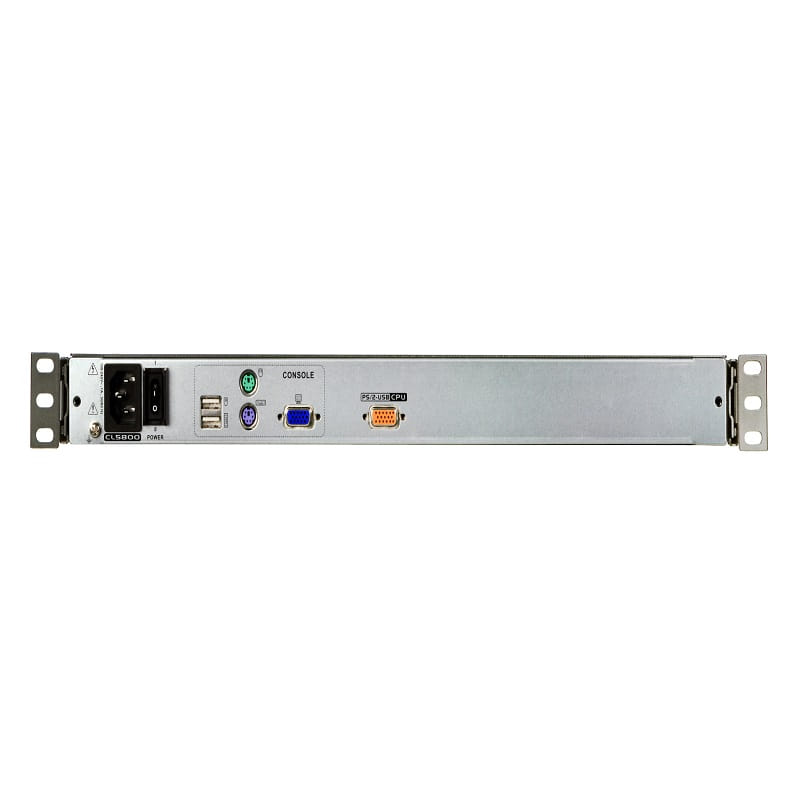

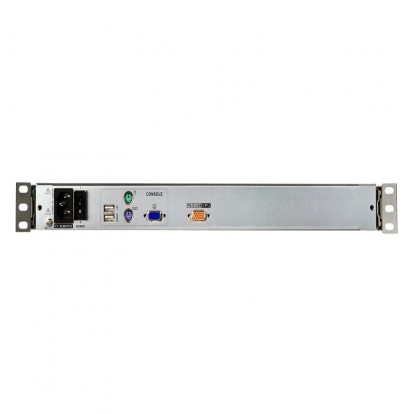

Connectors
KVM Ports	1 x SPHD Female (Yellow)
Firmware Upgrade	1 x RJ-11 Female
Power	1 x IEC 60320/C14
External Console Ports	1 x HDB-15 Female (Blue) 2 x USB Type A Female 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green)
External Mouse / Peripheral	1 x USB Type A Female (Front)
Switches
Reset	1 x Semi-recessed Pushbutton
Firmware Upgrade	1 x Slide Switch
Power	1 x Rocker Switch
LCD Control	4 x Pushbutton
LCD Power	1 x LED Pushbutton
LEDs
Power	1 x KVM Console (Dark Green) 1 x LCD (Orange)
Lock	1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green)
LED Illumination Light	1 x LED Illumination Light
Panel Spec
LCD Module	19" TFT-LCD
Resolution	1280 x 1024 @ 75 Hz
Response time	5 ms
Viewing Angle	170° (H), 160° (V)
Pixel Pitch	0.294 mm x 0.294 mm
Support Color	16.7M colors
Contrast Ratio	1000:1
Luminance	250 cd/m⊃2;
Video
Input Video Resolution	up to 1920 x 1200 @ 60Hz; 1280 x 1024 @ 75 Hz, DDC2B
Emulation
Keyboard / Mouse	PS/2, USB
Maximum Input Power Rating	100-240V AC; 50–60Hz; 1A
Power Consumption	AC110V:22.2W:115BTU AC220V:22.9W:118BTU
Environmental
Operating Temperature	0–50°C
Storage Temperature	-20–60°C
Humidity	0–80% RH, Non-condensing
Physical Properties
Housing	Metal
Rail Type	Dual Rail
Weight	14.27 kg ( 31.43 lb )
Dimensions (L x W x H)	48.00 x 68.04 x 4.40 cm (18.9 x 26.79 x 1.73 in.)
