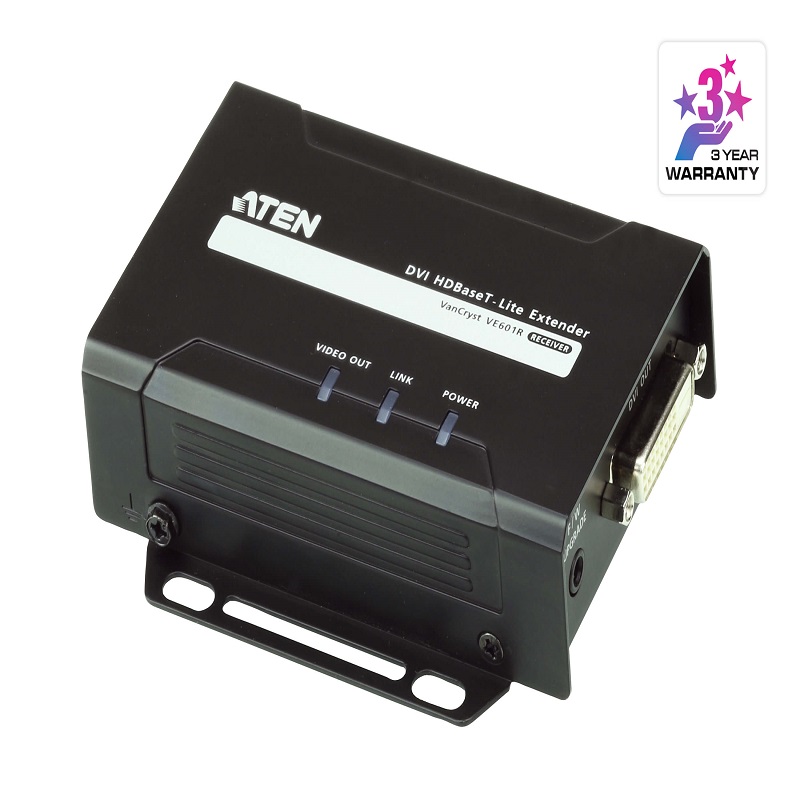

"DVI HDBaseT-Lite Receiver (1080p@70m) (HDBaseT Class B)"

DVI HDBaseT-Lite Receiver (1080p@70m) (HDBaseT Class B)

Product Code : VE601R

Brand Category : Video Extenders

Description

HDBaseT connectivity – extends a DVI connection up to 70 m
Superior video quality – 1920 x 1200 @ 35 m (Cat 5e / 6) / 40 m (Cat 6a) ; 1080p @ 60 m (Cat 5e / 6) / 70 m (Cat 6a / ATEN 2L-2910)
DVI (3D, Deep Color); HDCP 1.4 compliant
HDBaseT Anti-Jamming – resists signal interference during video transmission
Plug-and-play
Rack-mountable

Technical Specification

Video Output
Impedance	100 Ω

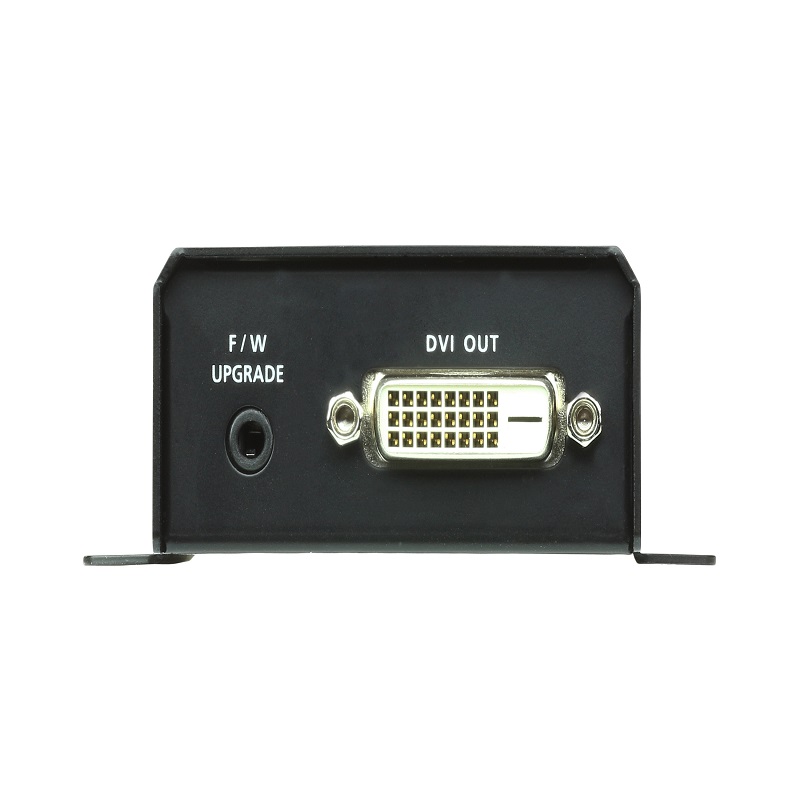

Interfaces	1 x DVI-D Female (White)
Video
Max. Pixel Clock	340 MHz
Max. Data Rate	10.2Gbps (3.4Gbps per lane)
Compliance	DVI (3D, Deep Color) HDCP compatible
Max. Resolutions / Distance	Up to 1920 x 1200@35 m (Cat 5e/6) / 40 m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60 m (Cat 5e/6) / 70 m (Cat 6a/ATEN 2L-2910 Cat6)
Connectors
Power	1 x DC Jack with locking
Unit To Unit	1 x RJ-45 Female
Power Consumption	DC5V:4.36W:20BTU
Environmental
Operating Temperature	0-50°C
Storage Temperature	-20 - 60°C
Humidity	0% - 80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	0.25 kg ( 0.55 lb )
Dimensions (L x W x H) with bracket	10.20 x 8.70 x 3.00 cm (4.02 x 3.43 x 1.18 in.)
Dimensions (L x W x H) without bracket	9.42 x 6.60 x 2.90 cm (3.71 x 2.6 x 1.14 in.)
