DVI-I Single Display KVM over IP Transmitter

DVI-I Single Display KVM over IP Transmitter

Product Code : KE6900AT

Brand Category : KVM EXTENDER


Description


  • Advanced Features
    • ATEN Matrix Link – allow users instant link transmitters and receivers, and perform real-time port and profile switching on an iPad
    • Boundless Switching – simply moves the mouse cursor across screen boundaries to switch between different receivers (Rx)
    • Fast Switching – switches between different remote video resolutions on a local display within 0.3 seconds
    • “Push” and “Pull” – shares content instantly to / from a single Rx or video wall by just one click
    • Video walls – creates multiple video walls with up to 12 x 12 (144 displays max.) in each layout
    • Flexible connections – allows multiple extender and matrix connections for multi-display installations and video wall applications
    • On-screen Preview (Panel Array™ Mode) – allow users to view the video of up to 36 displays on one screen
    • Advanced scheduling – improves efficiency and saves costs by allowing connections to be set based on time and date
    • Channel connections allow RX devices to connect to multiple TX devices – to stream video, audio, USB and serial sources independently
    • Virtual transmitter – independently streams video, audio, USB, and serial sources from different Tx
    • Internal and external authentication support – supports LDAP, Active Directory, RADIUS and TACACS+ external authentications
    • Advanced user authorization settings – administrators can set four access modes of permissions on TX devices for collaboration or to avoid interference among users
    • Video grouping of up to 4 sets of KE series devices to support Multi-Display applications
    • Configurable user and group permissions for access and control of KVM over IP extenders
    • Rx access control – users at the Tx local console can enable / disable Rx access by simply pressing a control button 2

      Note :
      1. These advanced functions are supported when the KE transmitters are paired with KE receivers and managed by CCKM.
      2. The KVM over IP Access Control Box (2XRT-0015G) is sold separately. Contact your ATEN dealer for product information.

  • Hardware
    • Supports power/network failover – dual DC jacks for power redundancy and 1 RJ45 & 1 SFP fiber ports for network failover to ensure constant availability for mission-critical applications
    • Supports 1Gbps SFP fiber module expansions*** up to 10 km
    • Advance processor provides lossless and low latency video transmissions up to 1920 x 1200 @ 60Hz
    • Supports digital (DVI) or analog (VGA) video output****
    • Audio Enabled – supports stereo speakers and microphone
    • High speed USB Storage Transmission support
    • Auto-MDIX – automatically detects cable type
    • Built-in 8KV/15KV ESD protection and 2KV surge protection
    • Fanless design for silent operations that are energy efficient
    • Mounting options:
      • 2X-021G Dual Rack Mount Kit
      • 2X-031G Single Rack Mount Kit
    • Includes an industrial-grade power adapter – supports operating temperature of 0°C- 50°C to ensure durability and adaptability under harsh environmental conditions
      ***The SFP module (2A-136G / 2A-137G) is sold separately. Contact your ATEN dealer for product information.
      ****To convert a DVI to VGA signal, a DVI-I to VGA converter is required.

  • Management
    • Centralized management software – KVM over IP Matrix Manager (CCKM) allows users to easily administrator all KE devices with an intuitive web-based GUI
    • Dual console operation – controls the user's system from both the transmitter’s and receiver’s keyboard, monitor, and mouse consoles
    • OSD (On Screen Display) on the Receiver configures both units
    • EDID Expert™ – selects optimum EDID settings for smooth power-up and highest quality display
    • Command line interface – administrators can control all KVM over IP extenders via RS-232 or TCP/IP using a CLI or 3rd party application
    • RS-232 serial ports – allow users to connect to a serial terminal for TextMenu, CLI, or serial devices such as touch screens and barcode scanners
    • Supports Hotkey Commands
    • Flashing LED and beeping features help locate and identify devices
    • Video Compression Level – allow users to increase/decrease the video quality to adjust for appropriate network bandwidth
    • Compatible with all KE devices

  • Security
    • Dedicated LAN port for KE direct connections – can be isolated from the corporate network
    • Secure data transmission – AES 128-bit encryption to secure all data before transmitted over a network and decrypts the data on the receiver
    • Supports industry standard Transport Layer Security (TLS) protocol

  • Virtual Media
    • USB storage transmission mode enhances data transmission performance, ideally for file transfers, OS patching, software installations and diagnostic testing
    • Supports USB 2.0 DVD / CD drives, USB mass storage devices, PC hard drives and ISO images
    • Supports smart card / CAC reader

Add to Query Cart PDF Download


Technical Specification


Connectors

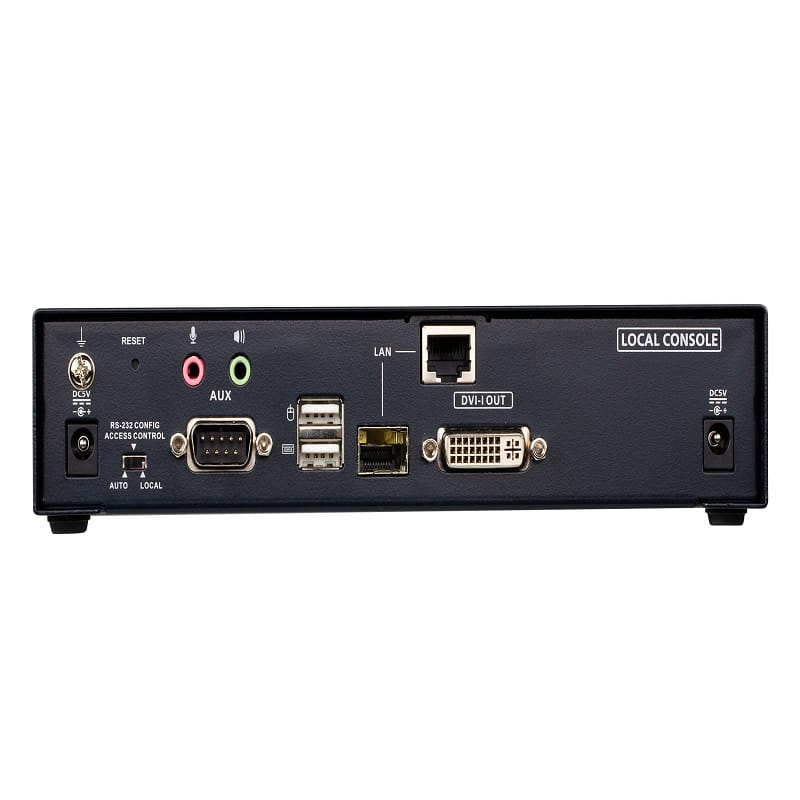

Console Ports 2 x USB Type A Female (White)
1 x DVI-I Female (White)
1 x Mini Stereo Jack (Green)
1 x Mini Stereo Jack (Pink)
1 x DB-9 Male (Black)

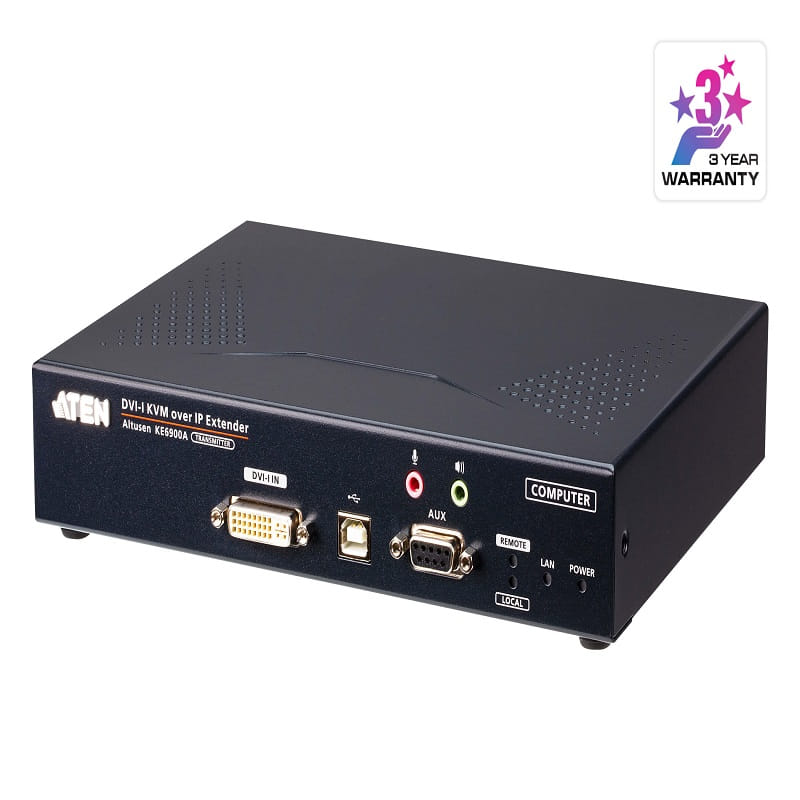

KVM Ports 1 x USB Type B Female (White)
1 x DVI-I Female (White)
1 x Mini Stereo Jack (Green)
1 x Mini Stereo Jack (Pink)
1 x DB-9 Female (Black)
Power 2 x DC Jack (Black)
LAN Ports 1 x RJ-45 (Black)
1 x SFP Slot
USB Port N/A
Switches
OSD N/A
Video N/A
Graphics N/A
Reset 1 x Semi-recessed Pushbutton
Mode Selection 1 x Slide Switch (Auto, RS-232 Config/Access Control, Local)
LEDs
10/100/1000 Mbps 1 (10: Orange / 100: Orange & Green / 1000: Green)
Power 1 (Blue)
Local 1 (Green)
Remote 1 (Green)
Emulation
Keyboard / Mouse USB
Power Consumption DC5V:7.95W:41BTU
Video Resolution Up to 1920 x 1200 @ 60Hz
Environmental
Operating Temperature 0–50°C
Storage Temperature -20–60°C
Humidity 0–95% RH, Non-condensing
Physical Properties
Housing Metal
Weight 1.15 kg ( 2.53 lb )
Dimensions (L x W x H) 21.50 x 16.33 x 4.18 cm
(8.46 x 6.43 x 1.65 in.)
