Energy Box with Real-time Power Monitoring

Product Code : EC1000

Brand Category : Rack PDU

Description

Operation
Space saving 1U rack mounting with front and rear mounting
4 RJ-45 Energy Sensor Ports to monitor four Energy PDU currents (0A to 32A per port)
4 RJ-11 Environment Sensor Ports to monitor temperature, humidity, and differential pressure*
Maximum Amperage Monitor 32A@100V~240V (Energy Box)

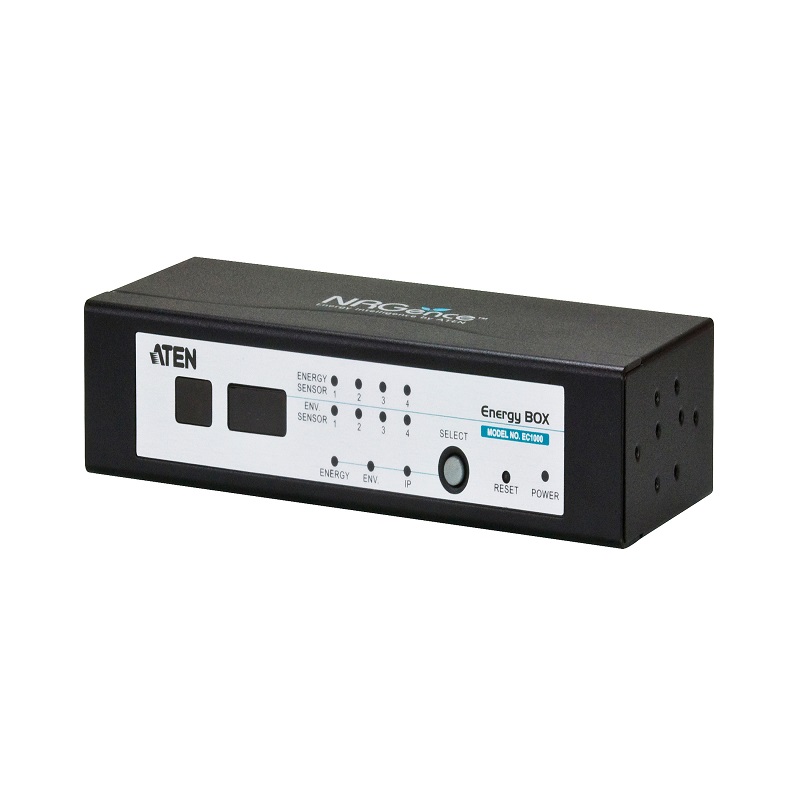

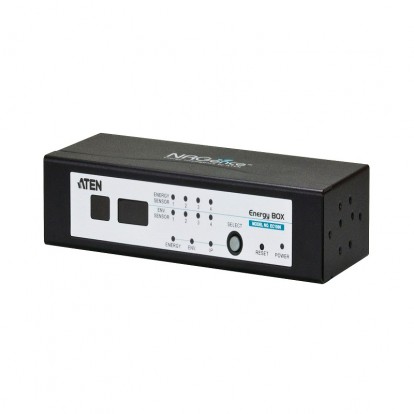

3 digit 7 segment front panel LED displays current/sensor/IP address information
Threshold monitoring for:
1.Current
2.Temperature*
3.Humidity*
4.Differential pressure*
Threshold alerting through:
1. Local: audible alarm and LED lights
2. Remote: SMTP/SNMP trap/Syslog

Management
Front panel LED indicators for current, temperature*, humidity*, differential pressure*, and IP address information at the Energy Box
Remote real-time current, temperature*, humidity*, and differential pressure* monitoring and management
Management through eco DC Energy Management Web GUI or 3rd party SNMP manager
Supports name assignment for individual Energy PDUs
Event Logging – 128 line event log
Syslog support
F/W upgradable

Remote Access
Remote management via TCP/IP using built in 10/100Mbps Ethernet port
Management via built in browser based GUI
Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, auto sense, Ping
Supports SNMP Manager V1, V2, V3

Security
Strong security features include password protection and advanced encryption technologies – utilizing 128 bit SSL
RADIUS authorization and authentication

* Requires external sensors

Technical Specification

Energy PDU Connections	4
Port Selection	Pushbutton

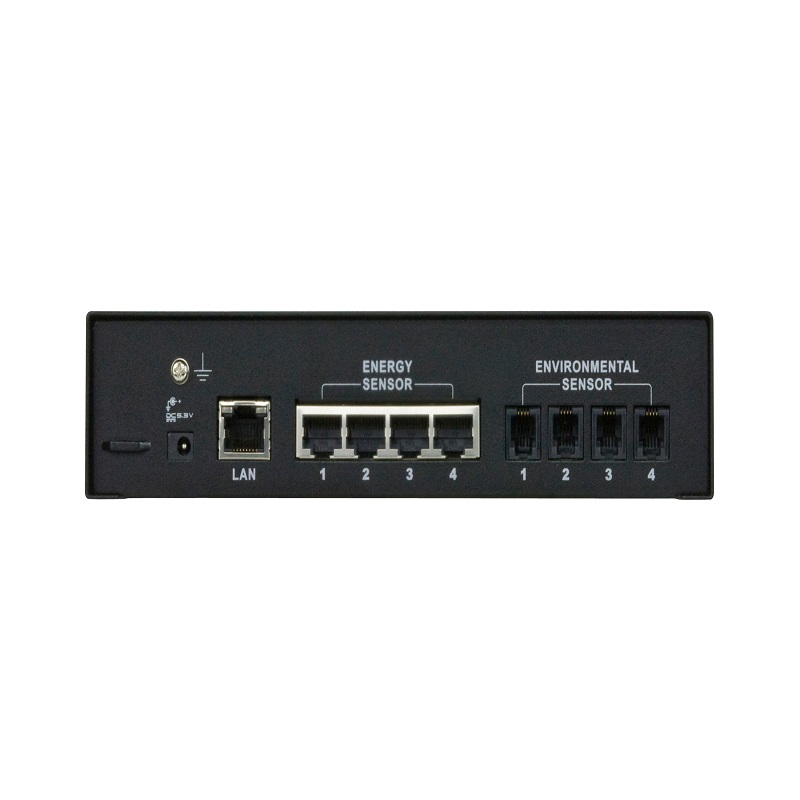

Connectors
Energy Sensor Port	4 x RJ-45 Female
Environment Sensor Ports	4 x RJ-11 Female
Power	1 x DC Jack
LAN Ports	1 x RJ-45 Female
Switches
Reset	1 x Semi-recessed Pushbutton
Selection	1 x Selection Pushbutton
LEDs
PDU Status	4 (Orange)
Environment Sensor Status	4 (Green)
Selected	1 digit 7-segment (Orange)
Power	1 (Blue)
Link	1 (Orange/Green) 1 (Green)
Monitoring Range	100–240V, 50/60Hz, 0A to 32A(per port) LED Display Resolution: 0.1A Precision: ±0.1A@0 ~ 1A, ±1% >1A
Power Consumption	DC5V:2.93W:14BTU
Environmental
Operating Temperature	0-50°C
Storage Temperature	-20-60°C
Humidity	0 - 80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	0.59 kg ( 1.3 lb )
Dimensions (L x W x H)	20.00 x 7.59 x 4.40 cm (7.87 x 2.99 x 1.73 in.)
