Energy & DCIM Management Web GUI

Energy & DCIM Management Web GUI

Product Code : eco DC

Brand Category : Energy & DCIM Management Software

Description

  • Automatic discovery of all PE and PG devices within the same intranet
  • Remote real-time power measurement and monitoring
    - PDU level current / voltage / power dissipation / power consumption
    - Outlet ON / OFF / Recycle status
  • Second window to monitor a data center’s PUE, Power, Carbon Footprint and rack status
  • Remote real-time power outlet management1
    - Power outlet On / Off / Cycle switching by outlet or user-defined group
    - Power outlet On / Off / Cycle switching with pre-defined schedule
    - User-defined outlet level delays for sequential power up
    - Current / Voltage / Power Dissipation / Power Consumption threshold level settings
    - User access assignment for every outlet
    - Name assignment to individual outlets
  • Remote real-time environmental sensor2 monitoring
    - Temperature / Temperature + Humidity / Temperature + Differential Pressure readings
    - Temperature and Humidity threshold level settings

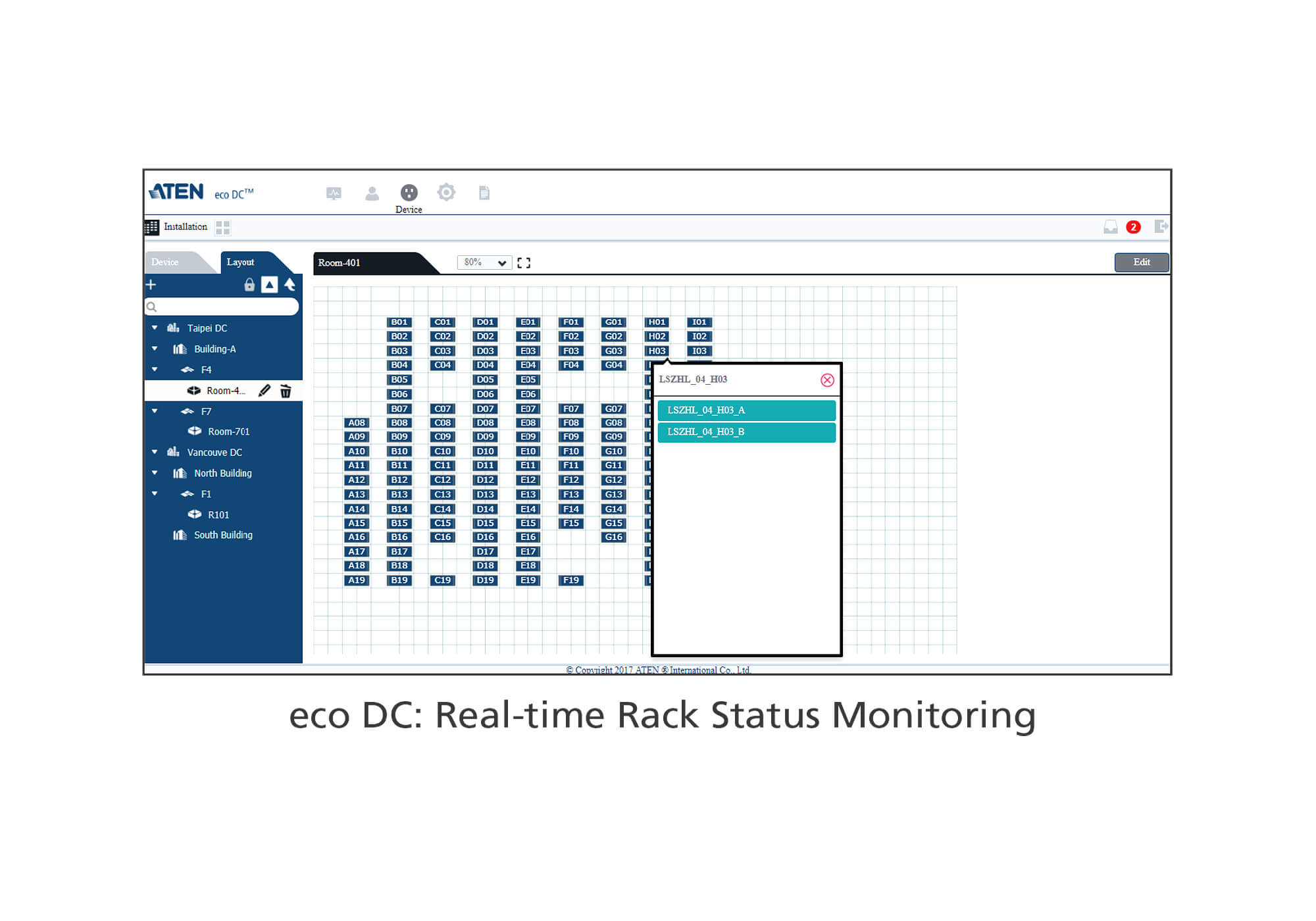

  • Plotting / Monitoring of all PE and PG devices
    - Add data center server racks
    - Add PE and PG devices for each server rack
    - Manage device / device outlet status for each plot
  • Offers essential data center indices including Rack Intake Temperature, Rack Exhaust Temperature, Rack Equipment Temperature Difference
  • Power analysis report for optimizing data center energy management – including power usage, power load, power cost, CO2 cost, power capacity and trends
  • Exceed threshold alert through SMTP and System log
  • 1024 line event log
  • System log provision
  • Two-level password security
  • Strong security features include password protection and advanced encryption technologies – 128 bit SSL
  • Supports online UPS and SNMP Card

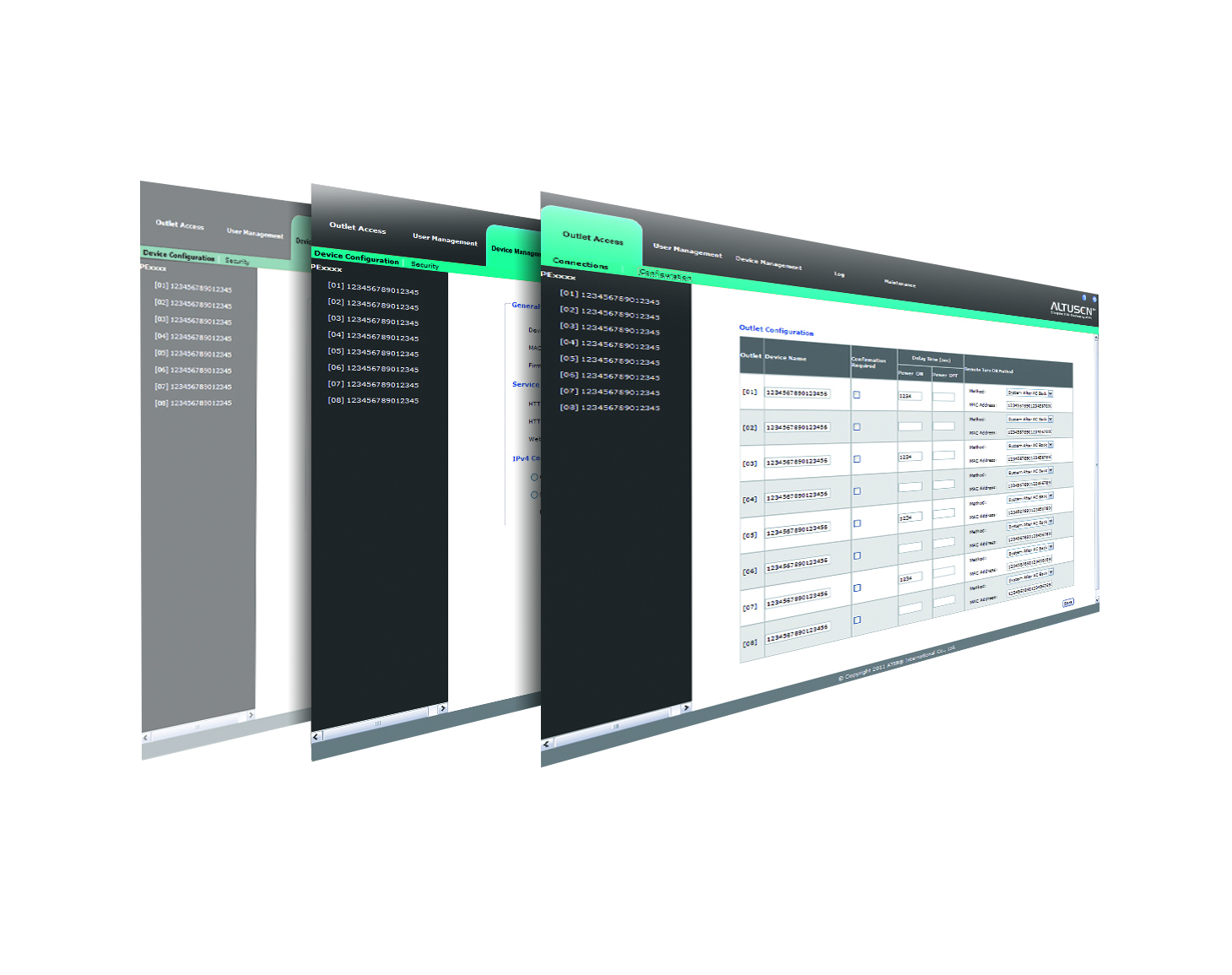

  • Real-time status charts for Current / Voltage / Wattage remote monitoring

    * Note:
    1. Not all functions are supported by all PE and PG eco PDU models. Please contact your regional representative for more details.
    2. EA series environmental sensors (except EA1640 Temperature & Humidity Sensor) can only work with PG PDUs when being linked to the EA1640 connected to PG PDUs.

Add to Query Cart PDF Download

Technical Specification

Max PDU number3000
Data Center Layout45 x 30
Max RACK Number3000
Max Zone Number128
Power Report Data3 years
Real Time Dashboard DataN/A
