Product Code : L603H
Brand Category : Control access industrial intercoms
|

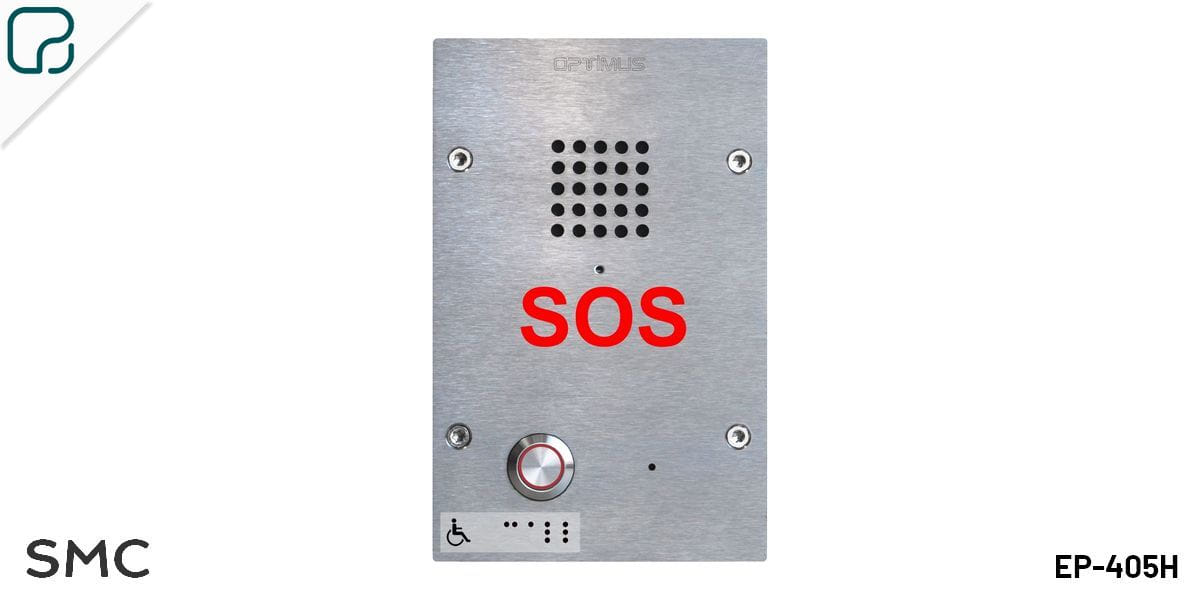

Audio substation vandal proof. Flush mount. Metal push-button. Special SOS
|
Special model for emergency call points, such as those installed in the refuge areas, (CTE DB SI - an. A), with:
• Large SOS letters in red.
• Pre-recorded message for call in progress.
• Accessibility pictogram.
• CALL word in braille.
|
Power supply |
24 Vdc |
|
Consumption (rest/max.) |
25 mA / 230 mA |
|
Central connection |
5-line SMC bus |
|
Door opening connection |
2 x 0.5 mm2, max. 20 m |
|
Loudspeaker |
2,5’’ mylar, 16 Ω |
|
Dimensions (mm) |
123 x 186 x 3,0 ( flush) |
|
Finish |
stainless steel |
|
Box for flush installation |
CE-EP model |
|
Surface box |
CS-EP model |
|
Relay (optional) |
U-RY |
