HDMI HDBaseT Extender with Dual Output (4K@100m) (HDBaseT Class A)

HDMI HDBaseT Extender with Dual Output (4K@100m) (HDBaseT Class A)

Product Code : VE814A

Brand Category : Video Extenders

Description

  • Extends HDMI signals to one local and two remote displays up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
  • HDMI (3D, Deep Color, 4K); HDCP 2.2 compatible
  • Superior video quality:
  • • 4K up to 100 m
  • • 1080p up to 150 m when in HDBaseT Long Reach Mode
  • Supports two IR channels for simultaneous IR signal transmissions, ranged from 30 KHz to 56 KHz

Add to Query Cart PDF Download

Technical Specification

"

Function VE814AR VE814AT
Video Input
Interfaces N/A 1 x HDMI Type A Female (Black)
Impedance N/A 100 Ω
Max. Distance N/A 3 m
Video Output
Interfaces 2 x HDMI Type A Female (Black) 1 x HDMI Type A Female (Black)
Impedance 100 Ω 100 Ω
Max. Distance 3 m 3 m
Video
Max. Data Rate 10.2Gbps (3.4Gbps per lane) 10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock 340 MHz 340 MHz
Compliance HDMI (3D, Deep Color, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC)		 HDMI (3D, Deep Color, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC)
Max. Resolutions / Distance Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)		 Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio

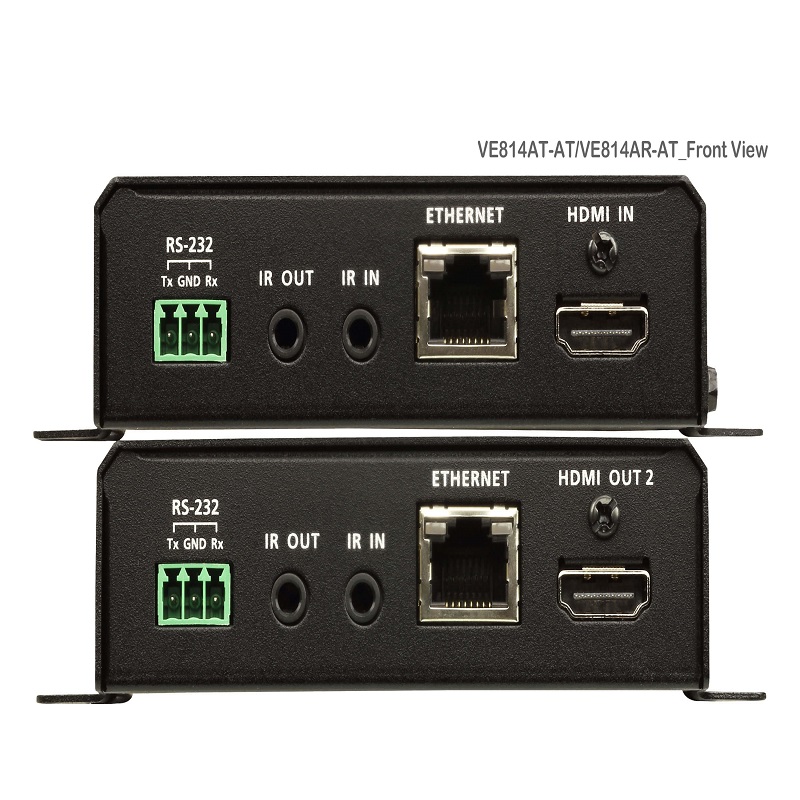

Input N/A 1 x HDMI Type A Female (Black)

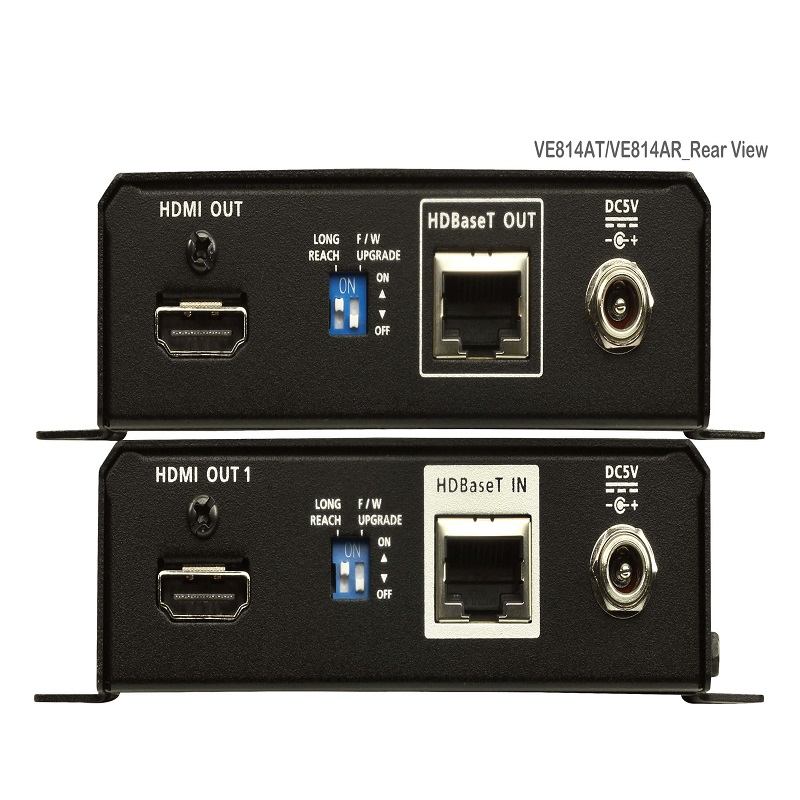

Output 2 x HDMI Type A Female (Black) 1 x HDMI Type A Female (Black)
Connectors
Unit To Unit 1 x RJ-45 Female 1 x RJ-45 Female
Power 1 x DC Jack (Black) with locking 1 x DC Jack (Black) with locking
Control
RS-232 Connector: 1 x Terminal Block, 3 pole
Baud Rate: 57600, Data Bits:8,
Stop Bits:1, no parity and flow control		 Connector: 1 x Terminal Block, 3 pole
Baud Rate: 57600, Data Bits:8,
Stop Bits:1, no parity and flow control
IR 2 x Mini Stereo Jack Female (Black) 2 x Mini Stereo Jack Female (Black)
Ethernet 1 x RJ-45 Female
Note: The RJ-45 ports is functional for device supporting the Ethernet port only		 1 x RJ-45 Female
Note: The RJ-45 ports is functional for device supporting the Ethernet port only
Switches
Long Reach Mode Switch 1 x Slide Switch - ON/OFF 1 x Slide Switch - ON/OFF
Firmware Upgrade 1 x Slide Switch - ON/OFF 1 x Slide Switch - ON/OFF
Power Consumption DC5V:7.87W:37BTU DC5V:5.09W:24BTU
Environmental
Operating Temperature 0 - 40°C 0 - 40°C
Storage Temperature -20 - 60°C -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal Metal
Weight 0.47 kg ( 1.04 lb ) 0.45 kg ( 0.99 lb )
Dimensions (L x W x H) with bracket 14.02 x 12.30 x 3.00 cm
(5.52 x 4.84 x 1.18 in.)		 14.02 x 12.30 x 3.00 cm
(5.52 x 4.84 x 1.18 in.)
Dimensions (L x W x H) without bracket 13.60 x 10.10 x 2.90 cm
(5.35 x 3.98 x 1.14 in.)		 13.60 x 10.10 x 2.90 cm
(5.35 x 3.98 x 1.14 in.)
Note The VE814A-AT supports Ethernet function and the VE814A-ATA does not. The VE814A-AT supports Ethernet function and the VE814A-ATA does not.

"
