HDMI HDBaseT Extender with PoH (4K@100m) (HDBaseT Class A)

HDMI HDBaseT Extender with PoH (4K@100m) (HDBaseT Class A)

Product Code : VE1812

Brand Category : Video Extenders

Description

  • HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e / 6 / 6a cable
  • Superior video quality:
    – 4K up to 100 m over a Cat 6a or ATEN 2L-2910 Cat 6 cable
    – 1080p up to 150 m when in HDBaseT Long Reach Mode
  • HDBaseT Anti-jamming – resists signal interference during high - quality video transmission using HDBaseT technology
  • PoH (Power over HDBaseT) – supplies power from Transmitter to Receiver over a long distance via one Cat 5e / 6 / 6a cable
  • Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
  • Bi-directional IR channel – Two way IR protocol delivery by one IR port; IR transmission is processed one direction at a time
  • Rack- Mountable

Add to Query Cart PDF Download

Technical Specification

FunctionVE1812RVE1812T
Video Input

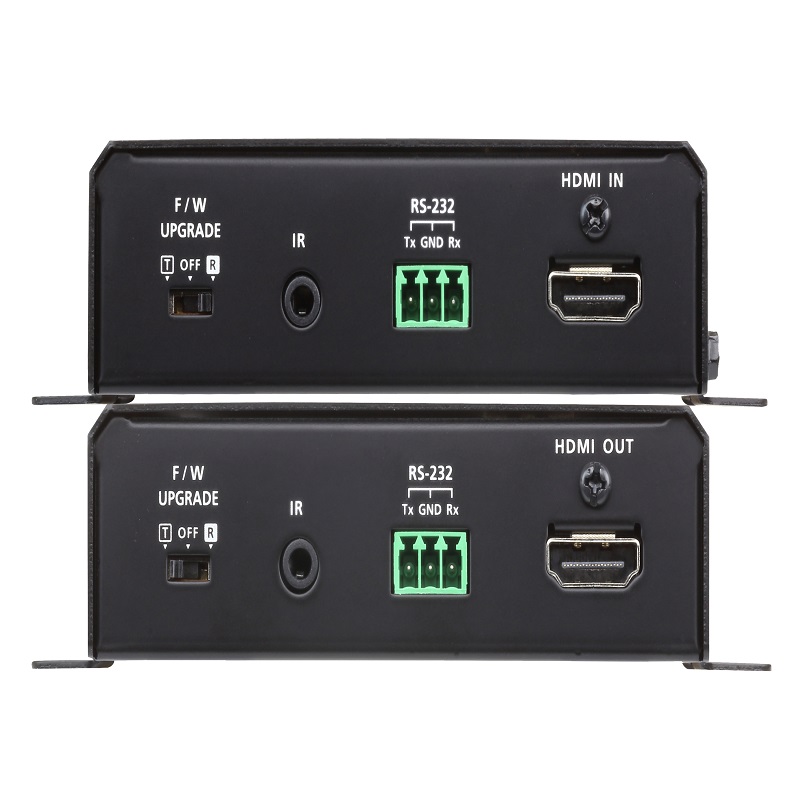

InterfacesN/A1 x HDMI Type A Female (Black)
ImpedanceN/A100 Ω
Max. DistanceN/A3 m
Video Output
Interfaces1 x HDMI Type A Female (Black)N/A
Impedance100 ΩN/A
Max. Distance3 mN/A
Video
Max. Data Rate10.2Gbps (3.4Gbps per lane)10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock340 MHz340 MHz
ComplianceHDMI (3D, Deep Color, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC)		HDMI (3D, Deep Color, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC)
Max. Resolutions / DistanceUp to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)		Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
InputN/A1 x HDMI Type A Female (Black)
Output1 x HDMI Type A Female (Black)N/A
Connectors

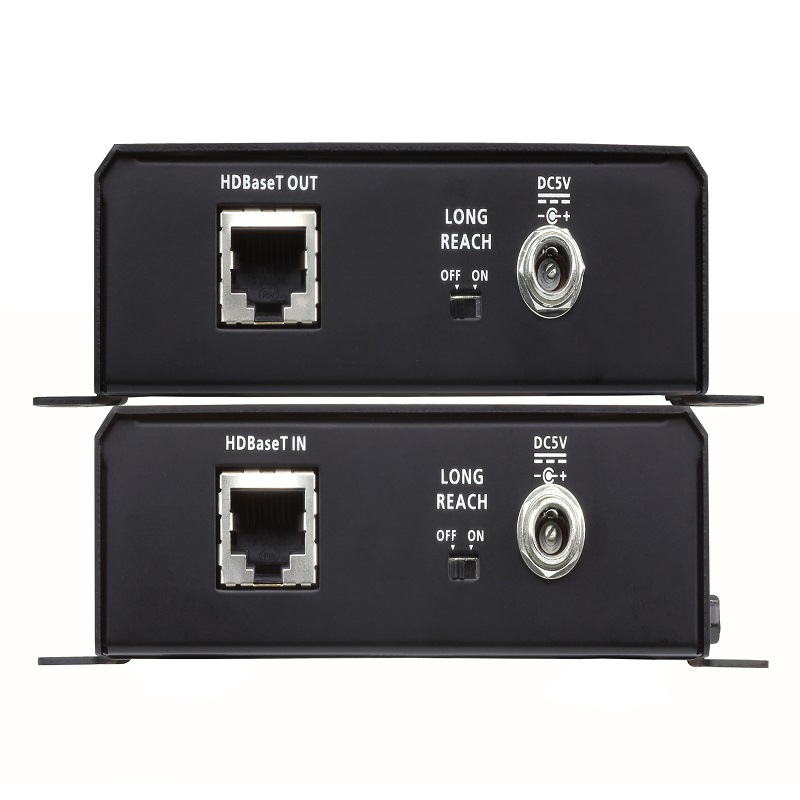

Unit To Unit1 x RJ-45 Female1 x RJ-45 Female
Power1 x DC Jack (Black) with locking
or 1 x RJ-45 (Power Over HDBaseT, POH)		1 x DC Jack (Black) with locking
Control
RS-232Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control		Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control
IR1 x Mini Stereo Jack Female (Black)1 x Mini Stereo Jack Female (Black)
Switches
Long Reach Mode Switch1 x Slide Switch - ON/OFF1 x Slide Switch - ON/OFF
Firmware Upgrade1 x Slide Switch - ON/OFF1 x Slide Switch - ON/OFF
Power ConsumptionDC5V:4.26W:20BTU
POH:5.33W:25BTU		DC5V:3.2W:15BTU
Environmental
Operating Temperature0 - 40°C0 - 40°C
Storage Temperature-20 - 60°C-20 - 60°C
Humidity0 - 80% RH, Non-Condensing0 - 80% RH, Non-Condensing
Physical Properties
HousingMetalMetal
Weight0.45 kg ( 0.99 lb )0.47 kg ( 1.04 lb )
Dimensions (L x W x H) with bracket14.04 x 12.30 x 3.00 cm
(5.53 x 4.84 x 1.18 in.)		14.04 x 12.30 x 3.00 cm
(5.53 x 4.84 x 1.18 in.)
Dimensions (L x W x H) without bracket13.60 x 10.10 x 2.90 cm
(5.35 x 3.98 x 1.14 in.)		13.60 x 10.10 x 2.90 cm
(5.35 x 3.98 x 1.14 in.)
