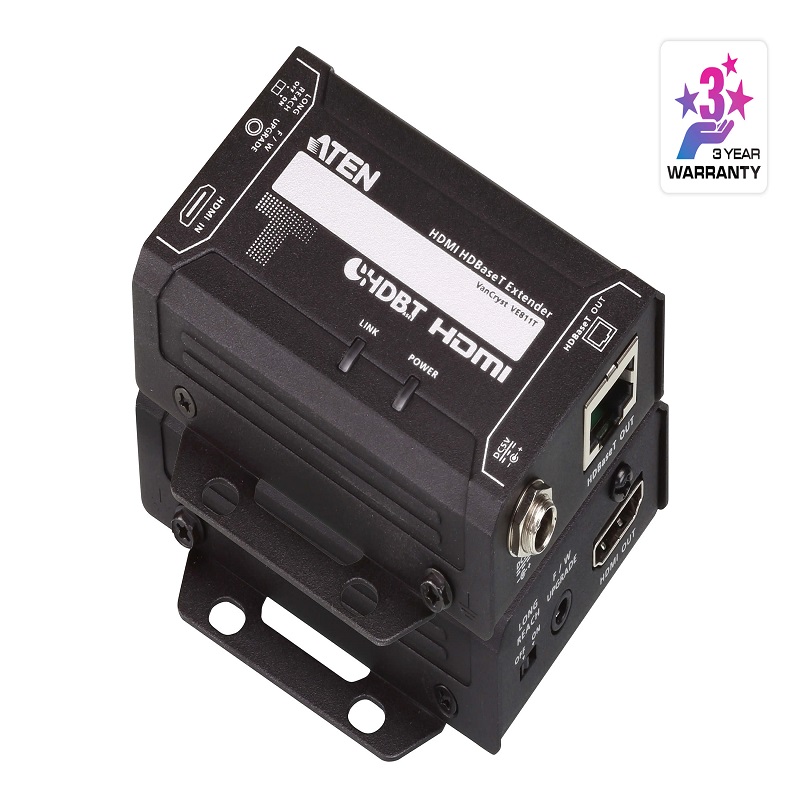

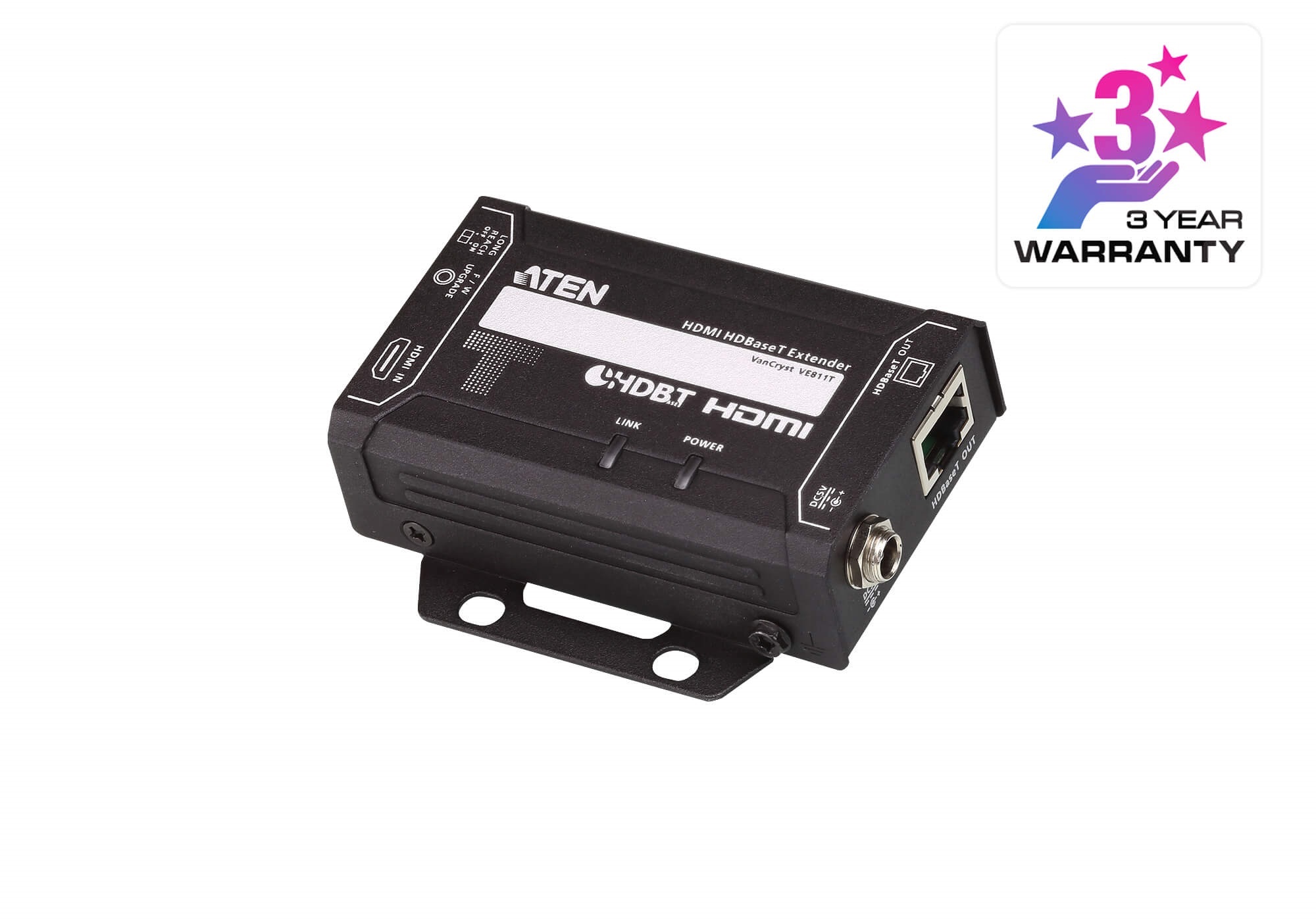

HDMI HDBaseT Extenders (4K@100m) (HDBaseT Class A)

HDMI HDBaseT Extenders (4K@100m) (HDBaseT Class A)

Product Code : VE811

Brand Category : Video Extenders

Description

  • HDBaseT connectivity – extends 4K HDMI signals up to 100m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
  • Supports HDBaseT Long Reach Mode – up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p
  • HDMI (3D, Deep Color, 4K)
  • HDCP 2.2 compatible
  • Supports resolutions of up to 4K and 1080p
  • Consumer Electronic Control (CEC) allows interconnected HDMI devices to communicate and respond to a single remote control
  • Supports wide screen format
  • Plug and play – no software required
  • Built-in 8 kV / 15 kV ESD protection
  • Rack mountable

Add to Query Cart PDF Download

Technical Specification

Function VE811R VE811T
Video Input
Interfaces N/A 1 x HDMI Type A Female (Black)
Impedance N/A 100 Ω
Max. Distance N/A 3 m
Video Output
Interfaces 1 x HDMI Type A Female (Black) N/A
Impedance 100 Ω N/A
Max. Distance 3 m N/A
Video
Max. Data Rate 10.2Gbps (3.4Gbps per lane) 10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock 340 MHz 340 MHz
Compliance HDMI (3D, Deep Color, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC)		 HDMI (3D, Deep Color, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC)
Max. Resolutions / Distance Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)		 Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input N/A 1 x HDMI Type A Female (Black)
Output 1 x HDMI Type A Female (Black) N/A
Connectors
Unit To Unit 1 x RJ-45 Female 1 x RJ-45 Female
Firmware Upgrade 1 x Mini Stereo Jack Female (Black) 1 x Mini Stereo Jack Female (Black)
Power 1 x DC Jack (Black) with locking 1 x DC Jack (Black) with locking
Switches
Long Reach Mode Switch 1 x Slide Switch - ON/OFF 1 x Slide Switch - ON/OFF
Power Consumption DC5V:3.84W:18BTU DC5V:3.77W:18BTU
Environmental
Operating Temperature 0 - 40°C 0 - 40°C
Storage Temperature -20 - 60°C -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal Metal
Weight 0.17 kg ( 0.37 lb ) 0.16 kg ( 0.35 lb )
Dimensions (L x W x H) with bracket 8.64 x 7.30 x 2.47 cm
(3.4 x 2.87 x 0.97 in.)		 8.64 x 7.30 x 2.47 cm
(3.4 x 2.87 x 0.97 in.)
Dimensions (L x W x H) without bracket 8.20 x 5.20 x 2.37 cm
(3.23 x 2.05 x 0.93 in.)		 8.20 x 5.20 x 2.37 cm
(3.23 x 2.05 x 0.93 in.)



Cat 6 Extender in UAE



WTC Systems LLC is here with the premium quality Cat 6 extenders in the UAE from ATEN. Our products are designed to boost the reach of your Ethernet network. Our Cat 6 extenders are ideal for overcoming distance restrictions for standard Ethernet cables. We let you keep high-speed connectivity and reliable data transmission over longer distances.



Ideal for offices, data centers, and industrial environments, our Cat 6 extenders support Gigabit Ethernet speeds and deliver robust performance with minimal signal degradation. They are easy to install and integrate seamlessly with existing network infrastructure.



Choose us for affordable solutions that expand your coverage. Our expert team is ready to help you select and implement the perfect Cat 6 extenders for uninterrupted connectivity and efficient network operations.
