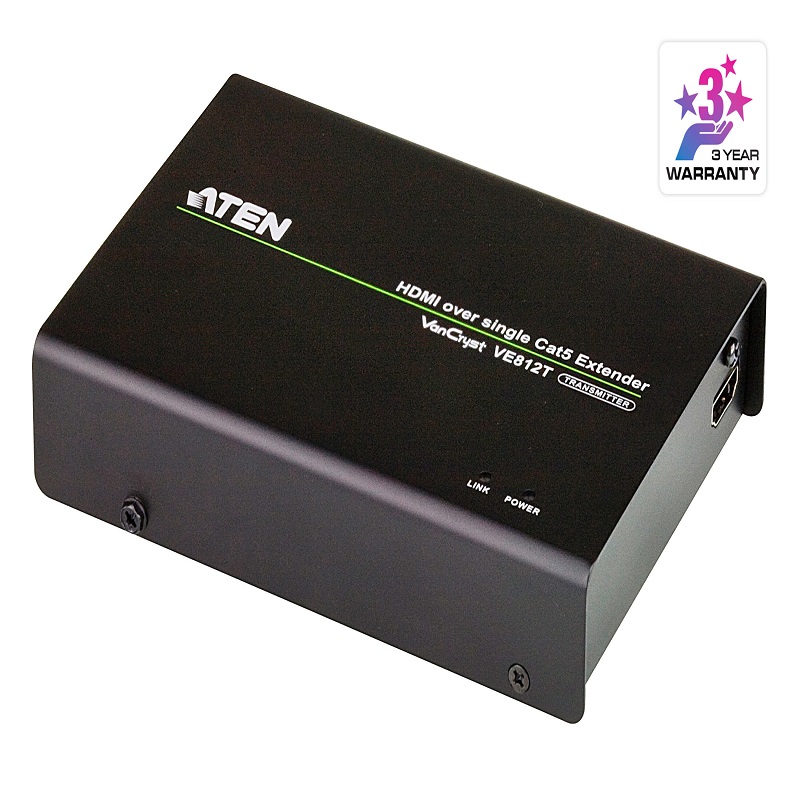

"HDMI HDBaseT Transmitter (4K@100m) (HDBaseT Class A)"

HDMI HDBaseT Transmitter (4K@100m) (HDBaseT Class A)

Product Code : VE812T

Brand Category : Video Extenders

Description

Extends the distance between HDMI source and HDMI display
Implements HDBaseT extension technology using only one Cat 5e cable to connect the transmitter and receiver
HDMI (3D, Deep Color, 4k); HDCP Compatible
Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
Long distance transmission - up to 100m
Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
Supports up to 340MHz bandwidth for high performance video
Supports Dolby True HD and DTS HD Master Audio
Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15 KV)

Technical Specification

Video Input
Interfaces	1 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	3 m
Video
Max. Data Rate	10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock	Up to 340 MHz
Compliance	HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC)
Max. Resolutions / Distance	Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a); 1080p@100m *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio

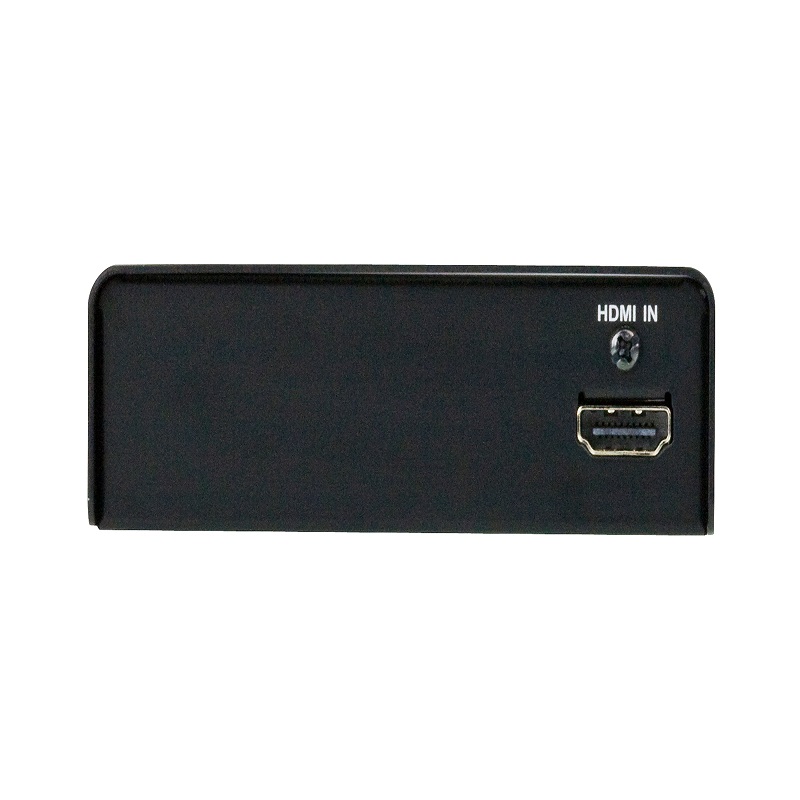

Input	1 x HDMI Type A Female (Black)
Connectors
Power	1 x DC Jack (Black)
Power Consumption	DC5.3V:2.22W:10BTU
Environmental
Operating Temperature	0 - 50°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.40 kg ( 0.88 lb )
Dimensions (L x W x H)	14.17 x 10.30 x 3.00 cm (5.58 x 4.06 x 1.18 in.)
Carton Lot	5 pcs
