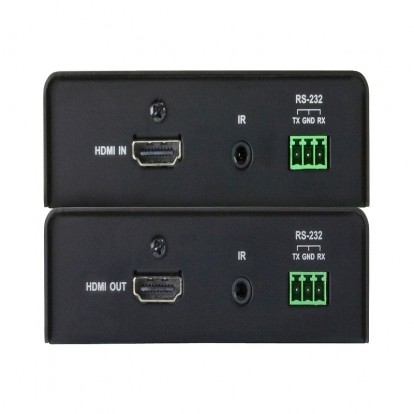

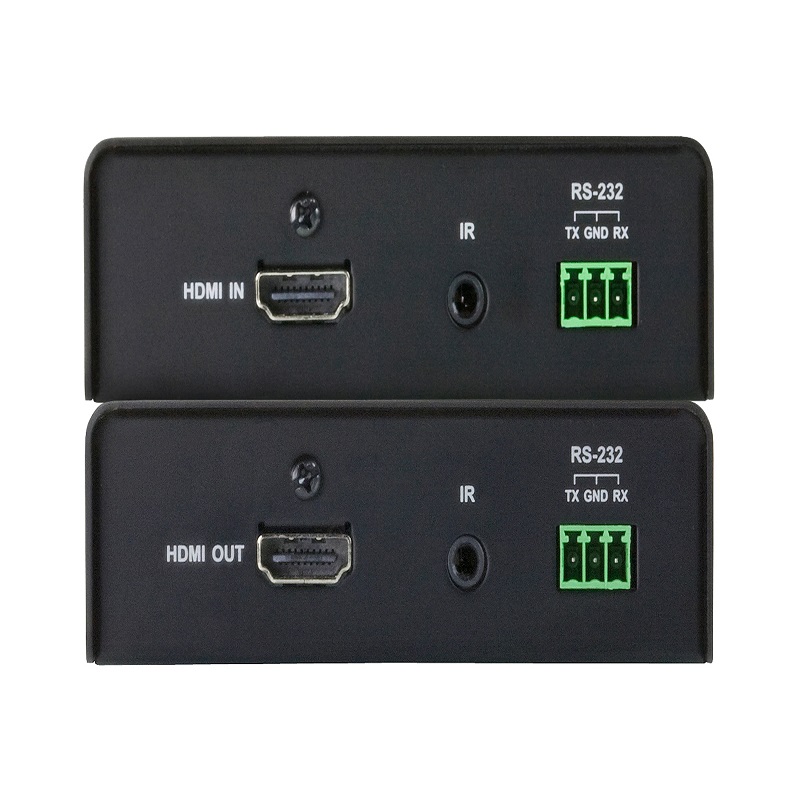

HDMI Optical Extender (1080p@600m)

HDMI Optical Extender (1080p@600m)

Product Code : VE882

Brand Category : Video Extenders

Description

  • Extends the transmission range of HDMI, IR and RS-232 signals using one fiber optic cable
  • Very long distance transmission – up to 600m
  • HDMI (3D, Deep Color), HDCP compatible – signaling rates up to 3.125 Gbits
  • Superior video quality – up to 1080p@60Hz
  • Supports full frequency IR signal from 30KHz to 60KHz
    (The IR receiver cable included with the package only supports 30 KHz to 56 KHz)
  • Uses one fiber optic cable to connect the local and remote units
  • Supports wide screen formats
  • Built-in 8KV/15KV ESD protection
  • Features RS-232 serial port for connecting peripherals such as touch screens, barcode scanners, etc.
  • Supports bi-directional IR signal transmission, one way at a time
  • Rack-mountable
  • Hot-pluggable

Add to Query Cart PDF Download

Technical Specification

FunctionVE882RVE882T
Video Input
InterfacesN/A1 x HDMI Type A Female (Black)
ImpedanceN/A100 Ω
Max. DistanceN/A3 m
Video Output
Interfaces1 x HDMI Type A Female (Black)N/A
Impedance100 ΩN/A
Max. Distance3 mN/A
Video
Max. Data Rate6.75 Gbps (2.25 Gbps Per Lane)6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock225 MHz225 MHz
ComplianceHDMI (3D, Deep Color)
HDCP 1.4 Compatible		HDMI (3D, Deep Color)
HDCP 1.4 Compatible
Max. ResolutionUp to 1080pUp to 1080p
Max. Distance1 x SFP Module (*Note)
600m @ Single mode (SM) fiber
300m @ OM3 Multi mode (MM) filber		1 x SFP Module (*Note)
600m @ Single mode (SM) fiber
300m @ OM3 Multi mode (MM) filber
Audio
InputN/A1 x HDMI Type A Female (Black)
Output1 x HDMI Type A Female (Black)N/A
Connectors
Unit To Unit1 x bi-directional SFP (LC)1 x bi-directional SFP (LC)
Power1 x DC Jack1 x DC Jack
Control
IR Channel1 x Mini Stereo Jack Female (Black);
30~56 KHz full range transmission		1 x Mini Stereo Jack Female (Black);
30~56 KHz full range transmission
RS-232 Channel1 x Terminal Block, 3 pole (Green)1 x Terminal Block, 3 pole (Green)
Power ConsumptionDC5.3V:4.69W:22BTUDC5.3V:5.80W:27BTU
Environmental
Operating Temperature0-40°C0-40°C
Storage Temperature-20 - 60°C-20 - 60°C
Humidity0 - 80% RH, Non-Condensing0 - 80% RH, Non-Condensing
Physical Properties
HousingMetalMetal
Weight0.44 kg ( 0.97 lb )0.44 kg ( 0.97 lb )
Dimensions (L x W x H)14.17 x 10.30 x 3.00 cm
(5.58 x 4.06 x 1.18 in.)		14.17 x 10.30 x 3.00 cm
(5.58 x 4.06 x 1.18 in.)
Carton Lot5 pcs5 pcs
Note1. Operating distance is approximate. A typical maximum distance may vary depending on factors such as fi ber type, bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks.
2. It is recommended that you use a Single Mode optical fi ber cable that conforms to IEC 60793- 2-50 B1.1 or ITU-T G.652.B specifi cations.
3. The VE882 supports OM3 optical fiber which can extend the transmission distance up to 300 meters		1. Operating distance is approximate. A typical maximum distance may vary depending on factors such as fi ber type, bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks.
2. It is recommended that you use a Single Mode optical fi ber cable that conforms to IEC 60793- 2-50 B1.1 or ITU-T G.652.B specifi cations.
3. The VE882 supports OM3 optical fiber which can extend the transmission distance up to 300 meters
