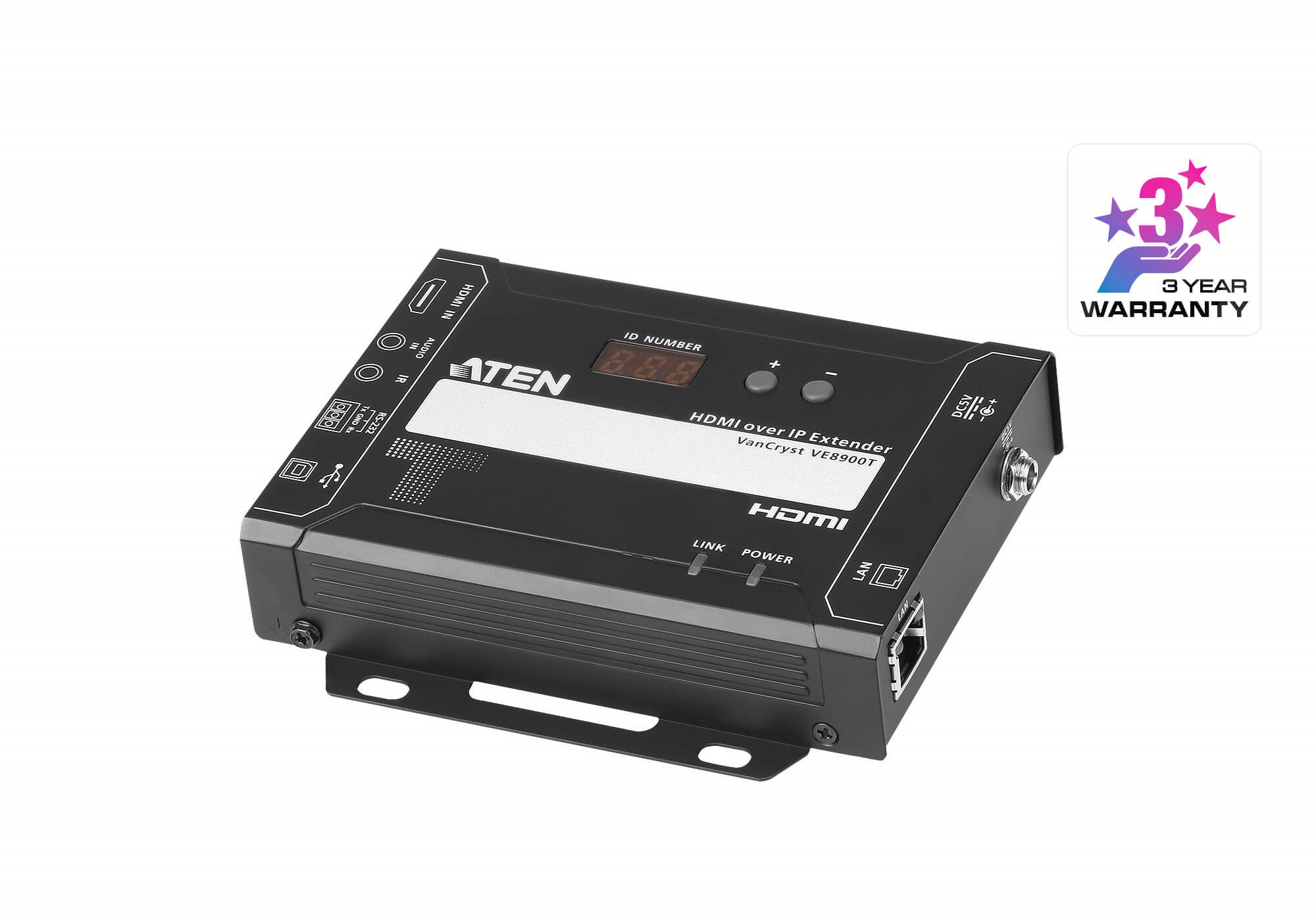

HDMI over IP Transmitter (1080p@100m)

Product Code : VE8900T

Brand Category : Networked AV

Lightweight Compression with Ultra-low Latency
- Delivers visually lossless high-quality video up to 1080p @ 60 Hz
- Ensures stunning quality video using ATEN advanced video lossless compression technology
- EDID Expert™ selects the optimum EDID settings for smooth power-up, high-quality display and the best video resolution across different screens
- Offers different levels of video compression rate including Smooth, Balance, and High Quality for users to choose depending on practical usage

Limitless Scalability and Flexibility
- Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN without distance limitations
- Offers multi-functionality in extender, splitter, matrix switch, video wall and daisy chain applications

Collaboration with ATEN Control System
- Integrated solution – Compatible with ATEN Control System, allowing users to directly operate VE8900T via CLI Telnet or RS-232 protocol
- Effortless operation – One click to effectively operate VE Manager, TV, projector, source player, and related equipments via touch panel and keypad

Spontaneous Scheduling Management
- Offers an user-friendly scheduling management function for users to pre-plan the display schedule
- Provides robust and intuitive scheduling management options to help users to manage all events in the calendar to as detailed as to setting events to minute intervals
- Integrates all VE89 units to arrange the profile by grouping individual receiver or video wall
- Multiple profiles can be arranged to play in any order over a selected period of time

No Complicated IP Setup
- Simple configuration that requires no extensive IT experience or extra learning
- Effortlessly switches among input sources via top panel pushbuttons

Web GUI-Based Management, No Additional Server PCs or Software Required
- Simple Access – Without typing IP address on Chrome browser, users are allowed to directly link to VE Manager via one click on “Find My VE” Chrome based free tool

Go Further For Less with Daisy Chaining*
- Connects multiple displays through a single port to utilize every port of the network switch and maximize their value
- Easily expandable – cabling and system deployment is easy with no huge network switches and fewer cables needed
- Perfect for large-scale deployment covering hundreds of meters, such as hotel facilities, airports, university campuses, stations, shopping malls, and exhibition centers
  * Depending on your network architecture, we recommend daisy chaining up to 30 units. Please contact ATEN representatives for more details.

*Use daisy chains to configure a video wall or expand the AV system hundreds of meters

Video Wall Support
- Supports up to 8 x 8 video wall (64 displays)*
- Supports horizontal or vertical (90° and 270° rotation) display orientation
- Easily switches layout profiles, preview and drag-and-drop video sources via the intuitive web GUI
  *Depends on your network architecture, please contact ATEN representatives for more details.

Embedded / De-embedded Audio Support
- Separate audio signal can be embedded into the HDMI stream

Video Input
Interfaces	1 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	3 m
Video
Max. Data Rate	Average: 150 ~ 500Mbps
Compliance	HDMI HDCP Compatible
Max. Resolutions / Distance	Up to 1080p@100m (Cat 5e/6, point to point)
Audio
Input	1 x HDMI Type A Female (Black) 1 x Mini Stereo Jack Female (Green)

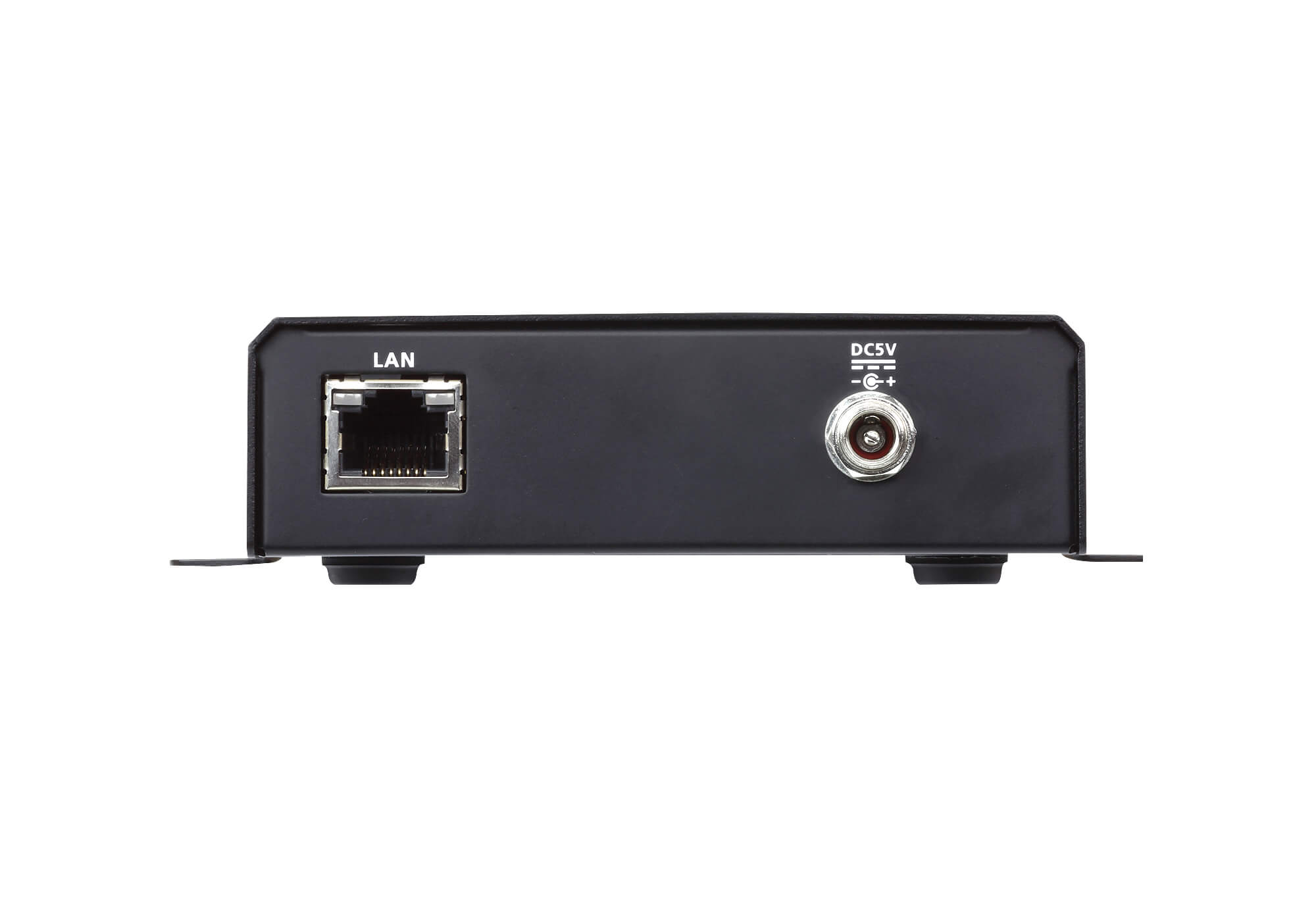

Connectors
Unit To Unit	1 x RJ-45 Female
Power	1 x DC Jack (Black) with locking
Control
IR	1 x Mini Stereo Jack Female (Black)
RS-232	Connector: 1 x Terminal Block, 3 pole Baud Rate: 19200, Data Bits:8, Stop Bits:1, no parity and flow control
USB	1 x USB Type B Female (White)
Pushbuttons
ID Number Selection	2 x Push buttons
Power Consumption	DC5V:3.07W:14BTU
Environmental
Operating Temperature	0 - 40°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.50 kg ( 1.1 lb )
Dimensions (L x W x H) with bracket	14.02 x 12.30 x 3.06 cm (5.52 x 4.84 x 1.2 in.)
Dimensions (L x W x H) without bracket	13.60 x 10.10 x 2.96 cm (5.35 x 3.98 x 1.17 in.)
