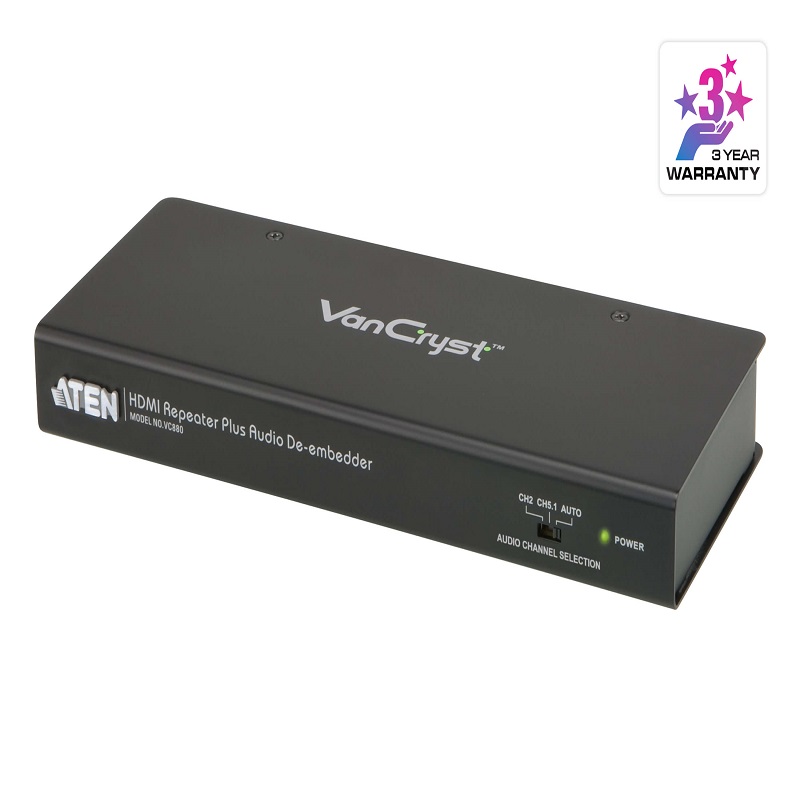

HDMI Repeater Plus Audio De-embedder

Product Code : VC880

Brand Category : Video Converters

Description

Repeats HDMI input signal up to 15 meters
Extracts HDMI audio signal and outputs as additional audio source
Supports optical / coaxial digital audio and analog stereo audio*
HDCP 1.1 compatible
Superior Video Quality – up to 1920x1080 (1080p)
Firmware upgradable
CH2/CH5.1/Auto mode audio channel selection
HDMI (3D)
Supports Dolby True HD and DTS HD Master Audio
Supports Audio on/off switch for HDMI output
Expandable to three levels – provides three levels of audio output for one HDMI at distance up to 45 m
Integrates with Apple TV for the perfect home entertainment system

*Supported Audio Input Channels

	Source audio input channel
Audio Output	Stereo (LPCM 2)	DTS 5.1 Dolby 5.1	LPCM 5.1	DTS 7.1 Dolby 7.1	LPCM 7.1
TosLink	Stereo	DTS 5.1 Dolby 5.1	2 channel (Front Right & FrontLeft)	Non support	2 channel (Front Right & FrontLeft)
Coaxial	Stereo	DTS 5.1 Dolby 5.1	2 channel (Front Right & FrontLeft)	Non support	2 channel (Front Right & FrontLeft)
Stereo	Stereo	Non support	2 channel (Front Right & FrontLeft	Non support	2 channel (Front Right & FrontLeft)

Technical Specification

Video Input
Interfaces	1 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	3m at 1920*1080@60 (4:4:4)
Video Output
Interfaces	1 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	15m at 1920*1080@60 (4:4:4)
Video
Max. Data Rate	6.75 Gps (2.25 Gbps Per Lane)
Max. Pixel Clock	225 MHz
Compliance	HDMI (3D, Deep Color) HDCP Compatible
Max. Resolution	Up to 1920 x 1080
Audio
Output	1 x HDMI Type A Female (Black); 1 x Toslink (Black); 1 x RCA (Orange); 2 x RCA (Red/White);
Connectors
Power	1 x DC Jack
Power Consumption	DC5.3V:2.25W:11BTU
Environmental
Operating Temperature	0 - 50 ºC
Storage Temperature	-20 - 60 ºC
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.46 kg ( 1.01 lb )
Dimensions (L x W x H)	20.00 x 8.20 x 2.50 cm (7.87 x 3.23 x 0.98 in.)
Carton Lot	20 pcs
