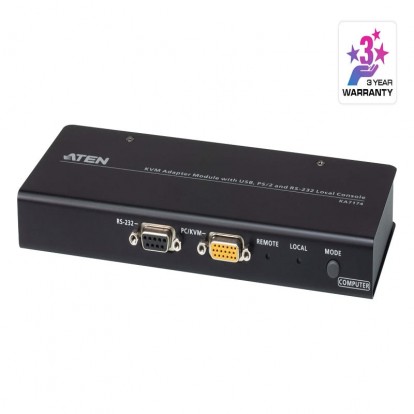

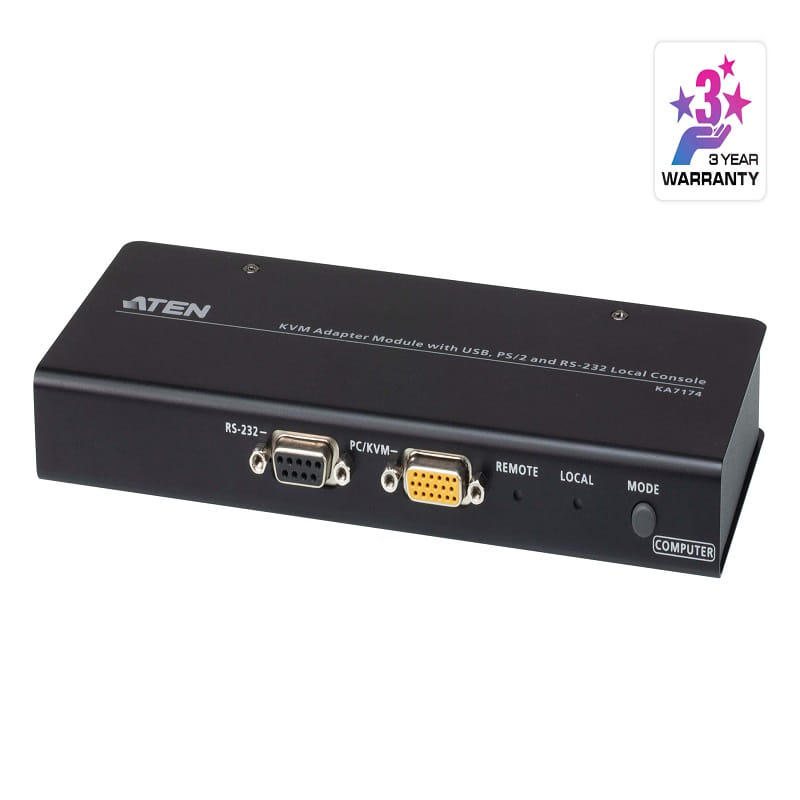

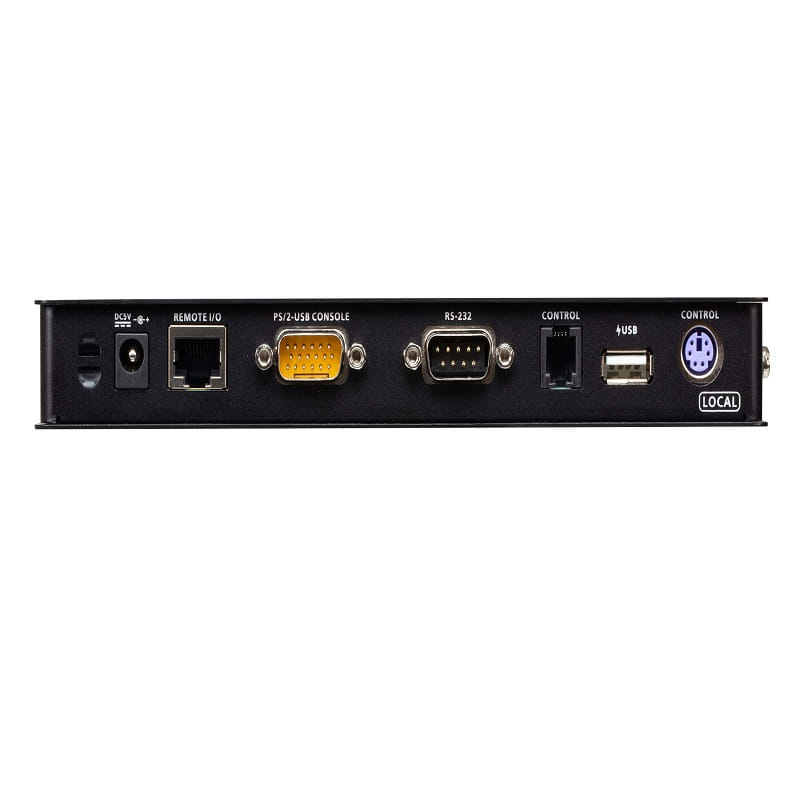

KVM Adapter Module with USB, PS/2, and RS-232 Local Console

"

• Compatible with ATEN 2XRT-0015G KVM over IP Access Control Box to initiate local-only access and control to the servers
• Cat 5e / 6 cable connects the device and KVM switch
• Supports computers with PS/2 and USB keyboards and mice, controlling the system from these extended devices and monitor via local console
• Supports custom RS-232 touch panel from both local and remote sites
• Pushbutton operating mode selection for privileged console control with OSD tag notifications indicating denial of access to the local or remote users when configured as such
• Built-in ASIC for greater stability and compatibility
• USB over-current detection and prevention
• Built-in ESD protection and surge protection
• Superior video quality – supports resolution up to 1920 x 1200 (reduced blanking)*
• Supports VGA , SVGA , SXGA , UXGA , WUXGA, and multisync monitors; local monitor supports DDC, DDC2, and DDC2B
• Easy to install – no software required – simply connect cables to the devices

  * This maximum resolution may vary depending on the transmission distance. For more details, please refer to the product pages of the connected KVM switches.

"
