KVM over IP Matrix Manager

KVM over IP Matrix Manager

Product Code : CCKM

Brand Category : Management Software / Control Center

Description

"

  • Management

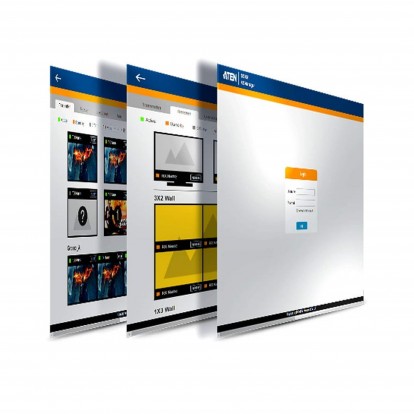

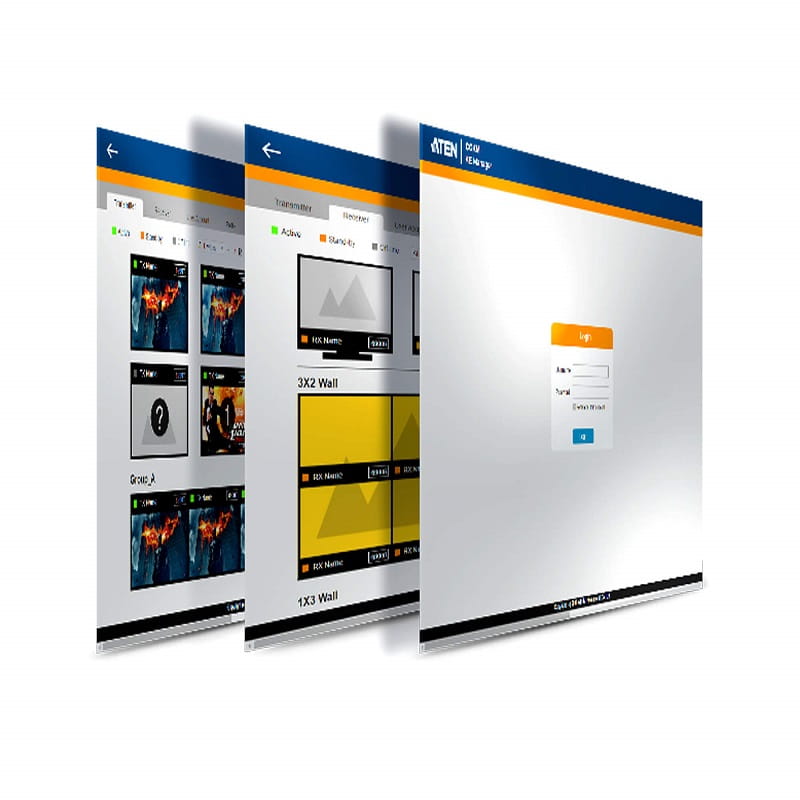

    • Centralized CCKM, allowing you to configure, administer, control, and maintain all KVM over IP extenders via an intuitive web based GUI
    • ATEN Matrix Link – allows customers with licenses to remotely manage KVM over IP extenders on the CCKM with an iPad from anywhere

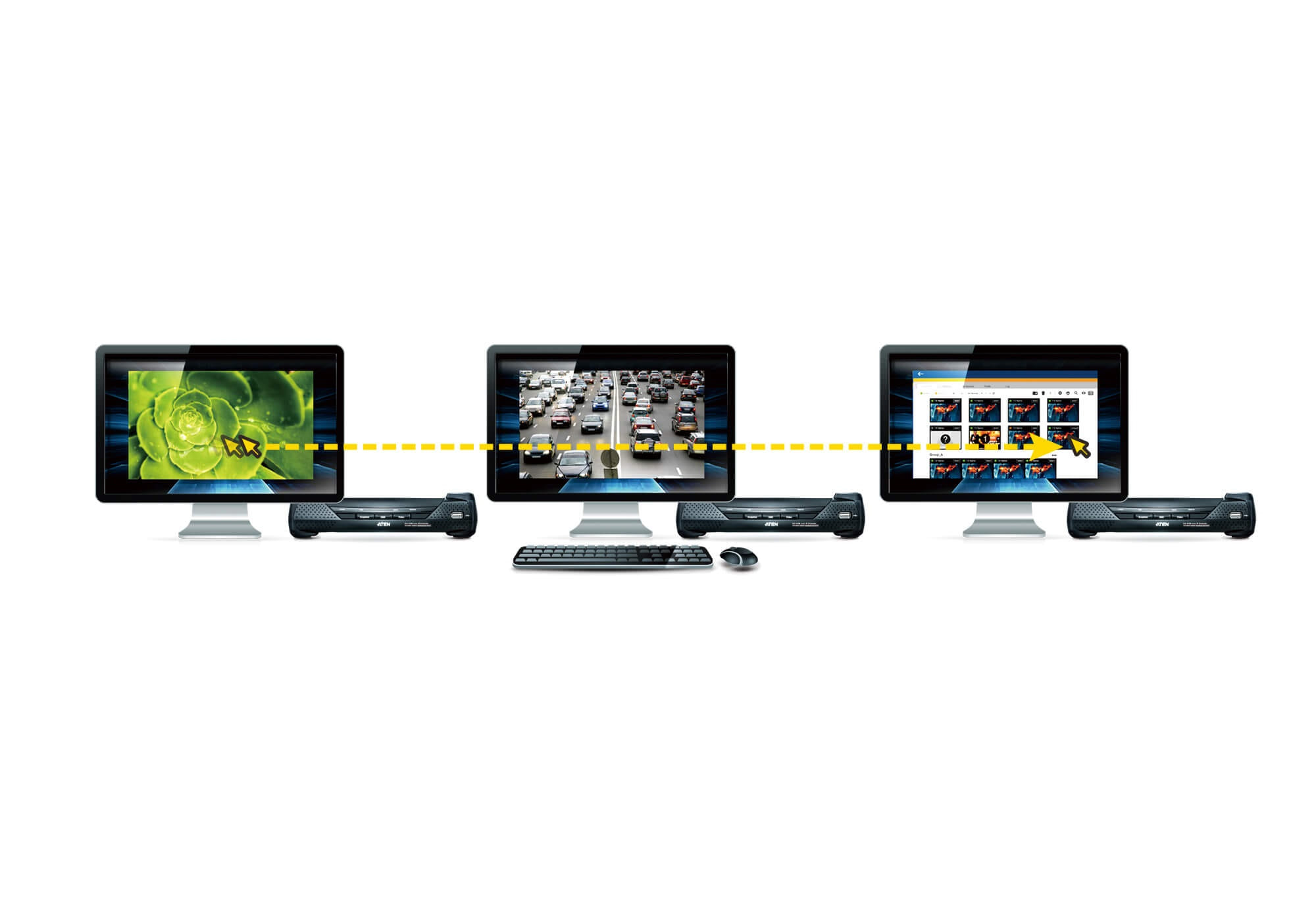

    • One-to-one, one-to-many, many-to-one and many-to-many Tx / Rx connections
    • Profiles save and reserve unlimited Tx to Rx device connections
    • Channel connections allow Rx devices to connect to multiple Tx devices – to stream video, audio, USB and serial sources independently
    • Configurable user and group permissions for access and control of KVM over IP extenders
    • Administrators can set access modes on Tx devices for collaboration or to avoid interference among users
    • Primary-Secondary Infrastructure – offers centralized management failover with up to 5 secondary servers, for redundancy, and real-time database synchronization
    • Administrators can easily view KVM over IP extenders status and the latest system events in the GUI dashboard
    • Connection Redundancy – automatically connects to another transmitter (Tx) after disconnection with the original Tx, ensuring constant access to servers
    • Authentication Lock – allows automatic logins upon system resume after temporary power down or network disconnection




<!-- Features List-2 -->

  • Flexible and Efficient Operations
    • Exceptional Video Wall Scalability – able to create multiple video wall layouts with up to 144 video displays (12 x 12)
    • Advanced Scheduling – improves efficiency and saves costs by allowing media playback to be set based on time and date
    • Video grouping of up to 4 sets of KVM over IP extenders to support Multi-Display applications
    • Fast switching feature for switching transmitter/receiver connections in under a second
    • SNMP Agent / SNMP Trap – automatically sends out SNMP Trap notifications upon specified events, and GET/SET specific configurations from the SNMP manager according to predefined OIDs within the stored MIB file




<!-- Features List-3-->

  • Easy-to-Use Interface
    • Browser-based GUI offers a multi-language interface to minimize user training time and increase productivity
    • Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, and Opera
    • Filter and export function for system event logs
    • Email notification of specified system event logs
    • Multi-platform installation support: Windows, Linux
    • Multi-platform client support: Windows, Mac, Linux, and Sun




<!-- Features List-4 -->

  • Advanced Security
    • User account authentication and management
    • CCKM supports both internal and external authentication – external authentication supports LDAP, Active Directory, RADIUS and TACACS+
    • Data transmission is secured by AES encryption

"

Add to Query Cart PDF Download

Technical Specification

Authentication & Authorization User account authentication and management (Administrator, super user, and user)
CCKM supports both internal and external authentication – external authentication supports LDAP, Active Directory, RADIUS and TACACS+
Security Data transmission is secured by AES-128 or AES-256 encryption.
Network Protocol & IP Tools IPv4, SSH, and Telnet.
Notification SMTP.
SNMP (v1, v3).
Syslog.
System message.
Task scheduling CCKM database and configuration backup/restore (encryptable).
Device firmware upgrade.
Export logs by day, period (.csv).
Export device logs by severity (.csv).
Export Device List (.csv).
Logs System logs.
Device logs.
Serial console server logs.
SNMP traps.
SNMP agent.
Server Redundancy Primary/secondary architecture.
1 primary with a maximum of 5 secondary servers.
Supported OS Windows: 7, 8.1, 10, 11, server 2008, server 2012, server 2016, server 2019,
Linux: Ubuntu 16.04, CentOS 7,
MacOS 10.8 or higher, and Sun.
*Both Windows and Linux only support JAVA Runtime Environment (JRE) or OpenJDK up to version 8.
Supported Browsers Internet Explorer (10 or later), Chrome (70 or later), Firefox (62 or later), Safari, and Opera.
Multilingual Support English, 繁體中文, 简体中文, 日本語, 한국어, Française, Español, Português, Deutsch, Pусский.
Others System Status Dashboard
TX/RX Connections Dashboard
Scheduled Profile Dashboard
Online User/Account Management
Instant link
TX/RX Preview Image
Video Walls Setting
TX/RX groups Setting
License
License Options CCKM USB License Key (Unlimited number of nodes)
CCKM Virtual License (Unlimited number of nodes)
*Each CCKM server requires a separate license to activate, including primary and secondary servers.
Basic (free) Up to 8 nodes.
*Basic (free) license supports primary/secondary architecture.
Minimum Hardware Requirements CPU: Pentium 4, 2.60 GHz or higher
Memory: 8 GB
Hard drive: 500 MB or more free space
Ethernet: Giga LAN
Package Contents 1x CCKM USB License Key (inapplicable to Virtual License)
1x User Instructions
Physical Properties
Housing Metal & Plastic
Weight 0.01 kg ( 0.02 lb )
Dimensions (L x W x H) 8.36 x 2.78 x 1.39 cm
(3.29 x 1.09 x 0.55 in.)
Environmental
Operating Temperature 0 - 40°C
Storage Temperature -20 - 60°C
Humidity 0–80% RH, Non-condensing
