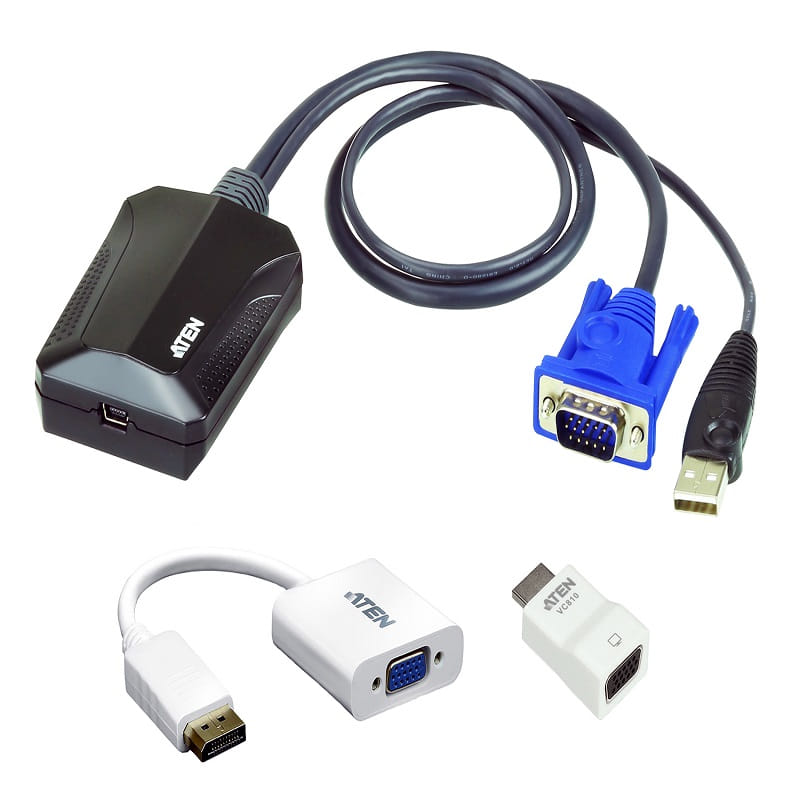

Laptop USB KVM Console Crash Cart Adapter IT Kit

Product Code : CV211CP

Brand Category : Cable KVM Switches

USB Console Adapter Provides Direct Laptop-to-Computer Desktop Access
Transforms your laptop into an ultra mobile console for servers, computers, kiosks and ATMs
Virtual media enables file applications, OS patching, diagnostic testing and software installation
Upgradable firmware to keep unit up to date
Eliminates the need for heavy and bulky crash carts
Desktop scaling – user can adjust the size/resolution of the Remote desktop window by size or ratio
Supports Windows, Linux, and Mac laptops*
No operating system limitations on servers/computers connected to the CV211
Mac laptops are supported by CV211 firmware v1.0.076 or higher; macOS are only supported by CV211 with macOS 10.15.7 or earlier

Server and Computer Troubleshooting
Instant BIOS-level access gets you total control of a server during hardware and operating system failures
Bi-directional file transfers between the laptop and target computer
Video recording and image capture feature saves a record of remote operations for future training and troubleshooting
Mouse DynaSync™ – automatically synchronizes the laptop and target computer's mouse movements
On-screen keyboard with multi-language support
Supports hotkey macros – define keystrokes that execute specific actions on the target computer to complete tasks efficiently and accurately

Ease of Use
Plug-and-Play – no software installation required on either side
Toolbar helps users easily operate all the functions from a single-click control panel within the remote view window
Adjustable video settings for optimal picture and performance
USB bus-powered design with hot-plugging support
Maximum Convenience
Built-in VGA and USB keyboard/mouse cables
Unique cable clip design to get cables under control
Supports analogue video resolutions up to 1920 x 1200 @ 60 Hz
Compact and easy to carry – half-palm size

Technical Specification

Function	CV211
Computer Connections	1
Connectors
Laptop USB Console (LUC) Port	1 x USB Mini Type B Female
KVM (Computer) Ports	1 x USB Type A Male 1 x VGA Male (Blue)
LEDs	1 (Blue)
Power Consumption	DC5V:2.35W:11BTU
Environmental
Operating Temperature	0 - 40°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-condensing
Physical Properties
Housing	Plastic
Weight	0.13 kg ( 0.29 lb )
Dimensions (L x W x H)	7.05 x 5.37 x 3.01 cm (2.78 x 2.11 x 1.19 in.)
Other Included Adapters	A DisplayPort to VGA adapter (VC925) An HDMI to VGA adapter (VC810)
