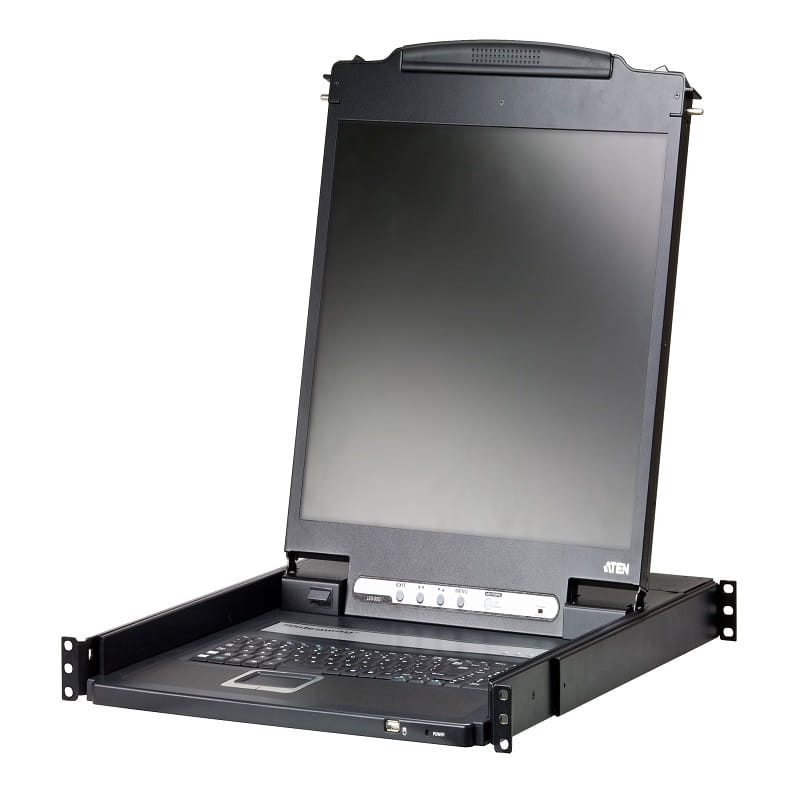

Lightweight Single Rail LCD Console (PS/2-USB, VGA)

Product Code : CL3000

Brand Category : LCD KVM Switches / Consoles

Description

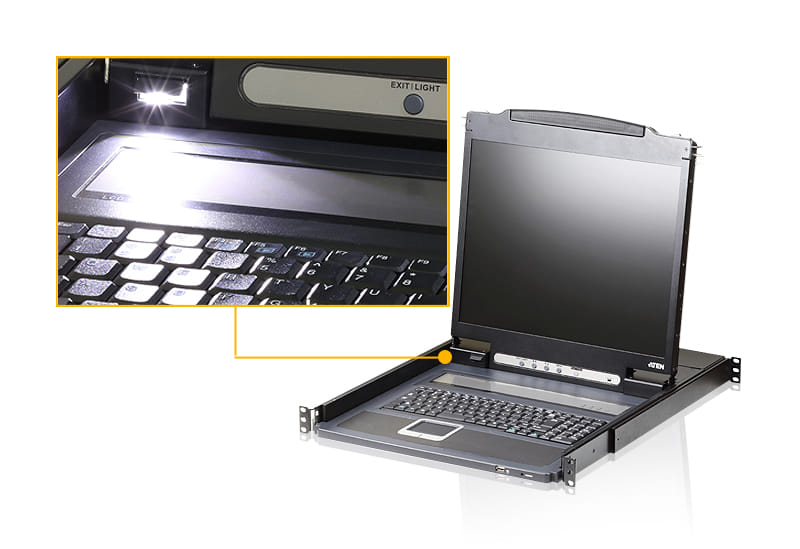

Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Integrated KVM console featuring a 19"" LCD monitor
Green power LED-backlit LCD monitor saves energy
Lightweight design for easier installation
Advanced Random Vibration Resistance Testing - MIL-STD-810G certified
Dual Interface – supports computers with PS/2 or USB keyboards and mice
Additional hot-pluggable USB mouse port on the front panel (also functions as a USB peripheral port)
Multiplatform support – Windows, Linux, Mac, and Sun
Superior video quality – up to 1280 x 1024 @ 75 Hz; DDC2B
Firmware upgradable
Extra console port – manage computers from an external console (monitor, USB or PS/2 keyboard and mouse)
Console lock – the console remains securely locked away when not in use
Slideaway™ housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space
DDC emulation – video settings of each computer are automatically adjusted for optimal output to the monitor
Adjustable depth to fit within a rack
Optional rack mount kits available including easy installation options
Standard 105-key keyboard
Keyboard Language supports English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese

More information about ""Easy Rack Mounting""...

Technical Specification

Function	CL3000N
Computer Connections
Direct	1
Console Selection	Hotkey
Connectors
KVM Ports	1 x SPHD Female (Yellow)
Power	1 x IEC 60320/C14
External Console Ports	1 x HDB-15 Female (Blue) 2 x USB Type A Female 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green)
External Mouse / Peripheral	1 x USB Type A Female (Front)
Switches
Reset	1 x Semi-recessed Pushbutton
Firmware Upgrade	1 x Slide Switch
Power	1 x Rocker Switch
LCD Control	4 x Pushbutton
LCD Power	1 x LED Pushbutton
LEDs
Power	1 x KVM Console (Dark Green) 1 x LCD (Orange)
Lock	1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green)
LED Illumination Light	1 x LED Illumination Light
Panel Spec
LCD Module	19"" TFT-LCD
Resolution	1280 x 1024@75Hz
Response time	5 ms
Viewing Angle	170° (H), 160° (V)
Pixel Pitch	0.294 mm x 0.294 mm
Support Color	16.77M colors
Contrast Ratio	1000:1
Luminance	250 cd/m⊃2;
Video
Input Video Resolution	up to 1920 x 1200 @ 60Hz; 1280 x 1024 @ 75 Hz, DDC2B
Emulation
Keyboard / Mouse	PS/2, USB
Maximum Input Power Rating	100–240VAC; 50–60Hz; 1A
Power Consumption	AC110V:23.8W:122BTU AC220V:25.4W:130BTU
Random Vibration Resistant Test	MIL-STD-810G Certified Test Conditions: • Frequency Range: 5-500Hz • Grams: Value X, Y axis 0.76Grms, Z axis 1.07Grms • Test Duration: 1 hour/per axis
Environmental
Operating Temperature	0–50°C
Storage Temperature	-20–60°C
Humidity	0–80% RH, Non-condensing
Physical Properties
Housing	Aluminum
Rail Type	Single Rail
Weight	9.00 kg ( 19.82 lb )
Dimensions (L x W x H)	48.00 x 58.92 x 4.40 cm (18.9 x 23.2 x 1.73 in.)
