MA-30M

MA-30M

Product Code : MA-30M

Brand Category : Amplifiers with sound source


Description

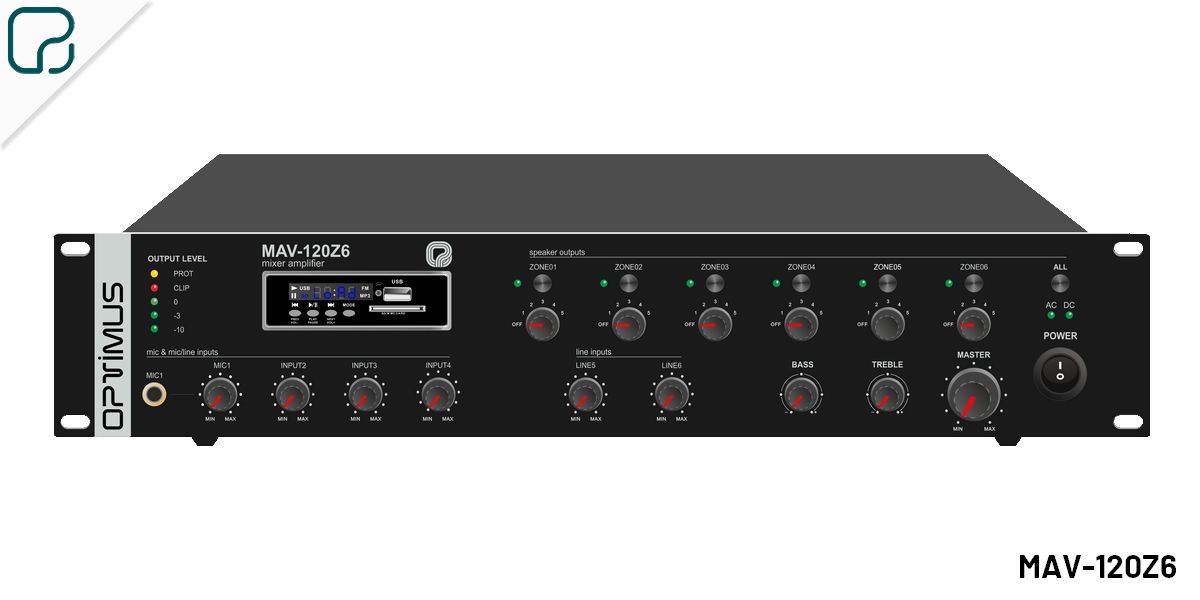

120W RMS amplifier with 6 x 100 V speaker outputs with independent volume. It incorporates six general audio inputs, one emergency input and one input for microphone desks with zone control. It has a music source with MP3 via UBS and SD, FM radio and Bluetooth. Includes clip, short circuit, overload and high-temperature protection, and LED indicators for power, signal, peak and protection.


Add to Query Cart PDF Download


Technical Specification


Power Output (RMS)

120 W

Speaker Outputs

100 V, 6 zones

Inputs

mic 1 ~ 4: 2.75 mV | line 2 ~ 6: 250 mV | EMC: 250 mV

Frequency Response

80 ~ 16.000 Hz

S/N Ratio

> 70 dB

THD

< 0,1 %

Cooling

internal fan

Indicators

power, prot, clip & signal

Protection

short circuit, peak, overload and high temp

Power Supply

110 ~ 230 Vac 50~60 Hz / 24 Vdc

Consumption

200 W

Weight

9.4 kg

Dimensions (mm)

438 x 405 x 88 (2 u)

Accessories (included)

AC mains power cable, music source & remote control, FM antenna
