Audio DSP Distributor in UAE

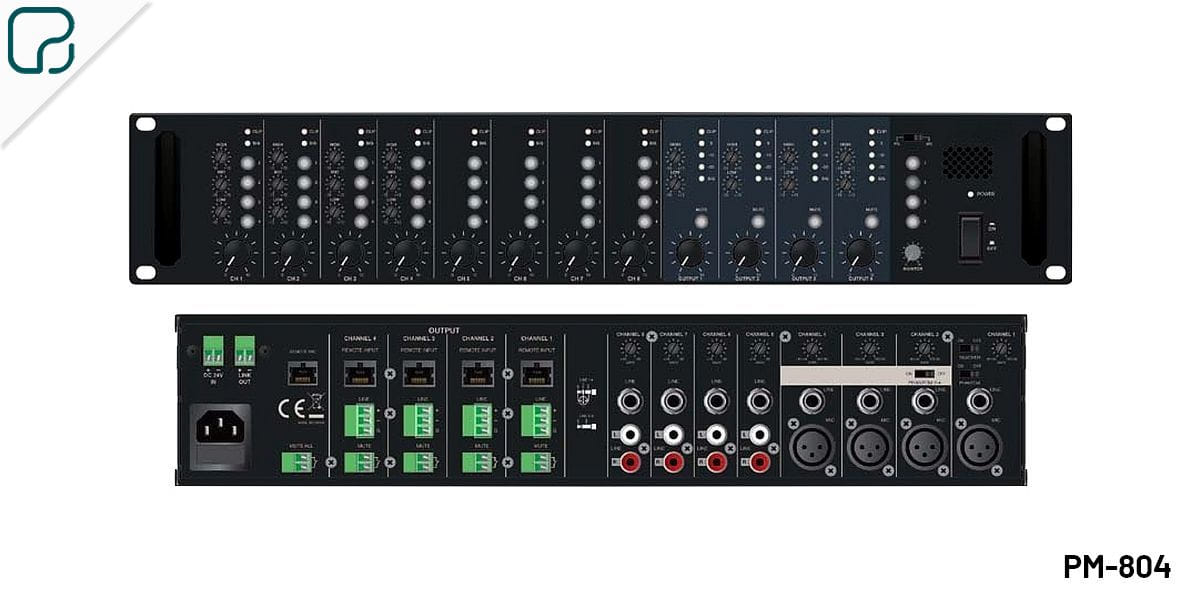

Matrix mixer with 8 inputs and 4 outputs

Product Code : PM-804

Brand Category : Matrix Mixer 8 x 4

Description

Matrix mixer with 8 audio inputs and 4 outputs. First four inputs have selectable sensitivity (microphone / line) and three band EQ, and the other four are with line sensitivity. The eight inputs are assignable to any output. The mixer can be controlled remotely from a microphone desk (PM-4Z) or wall controls (WP-1) .

Input sensitivity	- 60 dB ± 3 dB / 600 Ω balanced
Frequency response (-1 dB)	45 Hz ~ 15 kHz / ± 1 dB
Signal to Noise ratio	90 dB
Rated output level	0 dB / 600 Ω unbalanced
T.H.D.	< 0>
Operating temperature	0º ~ 40º C with 95 % humidity
Net weight	0.9 kg
Dimensions (width x height x depth)	140 x 60 x 205 mm

Technical Specification

Input sensitivity	- 60 dB ± 3 dB / 600 Ω balanced
Frequency response (-1 dB)	45 Hz ~ 15 kHz / ± 1 dB
Signal to Noise ratio	90 dB
Rated output level	0 dB / 600 Ω unbalanced
T.H.D.	< 0>
Operating temperature	0º ~ 40º C with 95 % humidity
Net weight	0.9 kg
Dimensions (width x height x depth)	140 x 60 x 205 mm

Audio DSP can boost the quality of the sound by processing audio signals in real-time. It is about to give suitable control over mixing, equalization, and effects for better audio performance in different applications.

At WTC Systems LLC, we are your trusted Audio DSP distributor in the UAE, offering advanced technology at competitive prices. Our products are designed to deliver exceptional sound quality with accurate control over equalization, mixing, and effects, making them ideal for commercial installations, broadcasting, and live sound environments.

Partnering with leading manufacturers like OPTIMUS, WTC Systems LLC ensures that our clients receive cutting-edge technology and reliable performance. Count on us as your premier source for high-quality Audio DSP solutions in the UAE, Middle East and North African region .
