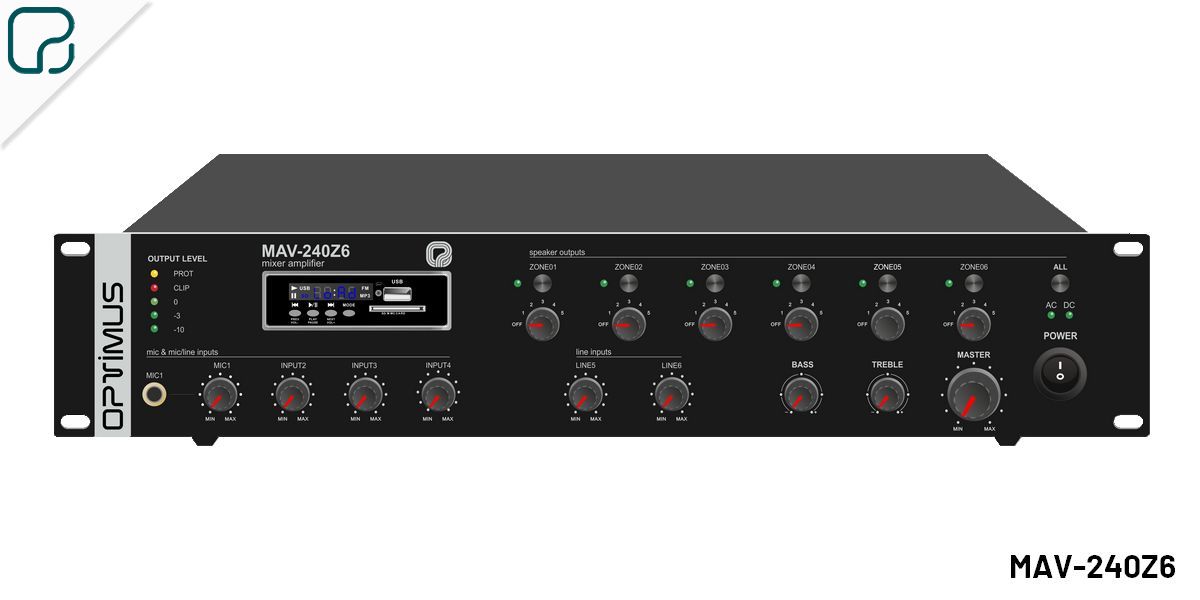

MAV-240Z6

Product Code : MAV-240Z6

Brand Category : Amplifiers with sound source

Description

240W RMS amplifier with 6 x 100 V speaker outputs with independent volume. It incorporates six general audio inputs, one emergency input and one input for microphone desks with zone control. It has a music source with MP3 via UBS and SD, FM radio and Bluetooth. Includes clip, short circuit, overload and high-temperature protection, and LED indicators for power, signal, peak and protection.

Technical Specification

Power Output (RMS)	240 W
Speaker Outputs	100 V, 6 zones
Inputs	mic 1 ~ 4: 2.75 mV \| line 2 ~ 6: 250 mV \| EMC: 250 mV
Frequency Response	80 ~ 16.000 Hz
S/N Ratio	> 70 dB
THD	< 0,1 %
Cooling	internal fan
Indicators	power, prot, clip & signal
Protection	short circuit, peak, overload and high temp
Power Supply	110 ~ 230 Vac 50~60 Hz / 24 Vdc
Consumption	400 W
Weight	10.5 kg
Dimensions (mm)	438 x 405 x 88 (2 u)
Accessories (included)	AC mains power cable, music source & remote control, FM antenna
