ML-P

ML-P

Product Code : L369

Brand Category : Call and signaling modules


Description

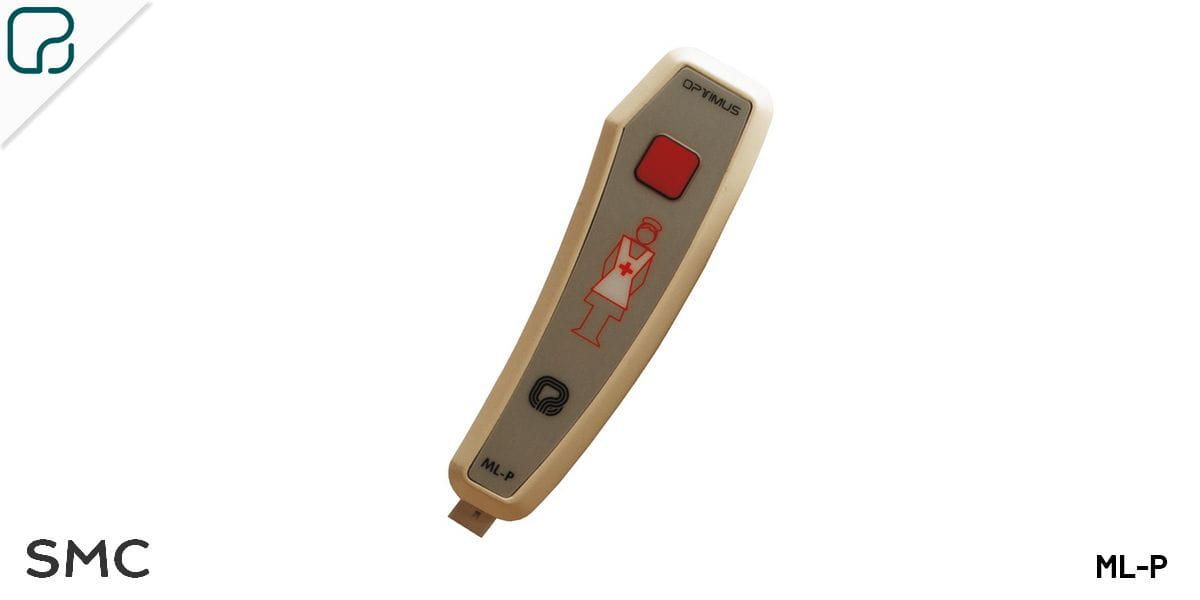

Handheld calling unit with call button

Signalling and call mechanism for flush mounting and signalling of call to the centres. It is connected to a remote unit (UR or UC series) or to a TH-02F/TH-03F intercommunicator to complete the equipment of the call points. The mechanism has buttons for presence and normal call, emergency call, RJ45 connector for ML controls and LEDs of call in progress and active presence. Built-in frame.


Add to Query Cart PDF Download


Technical Specification


Power supply

24 V DC

Consumption

24 mA

Dimensions (mm)

84 x 84 x 10

Finish

ABS white colour

Boxes

C-171S (surface) / L-170E (flush)

Connections (push buttons)

2 x 0,25 mm2 (to TH / UR)

Connections (LEDs)

3 x 0,25 mm2 (to TH / UR)
