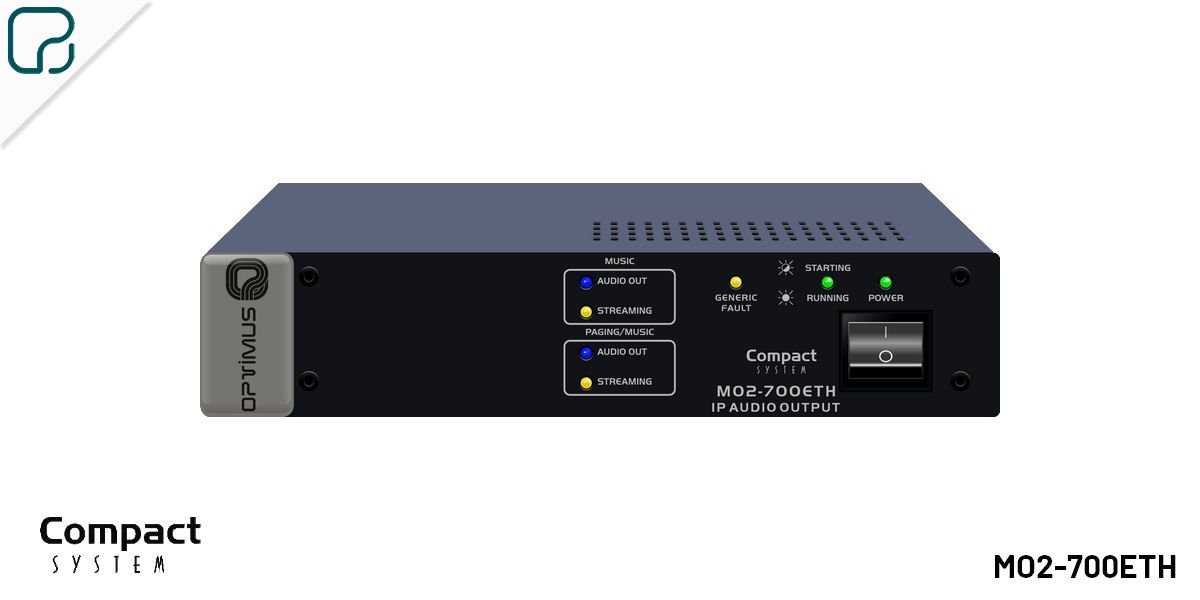

MO2-700ETH

Audio converter of the COMPACT system, from digital audio to analog audio, with one output for messages and another for music. They can be placed at any point in the installation as one more point of the COMPACT system (maximum 20 units in total). The system can be monitored via a USB connection. It occupies one unit of standard rack height and half-width.

• IP public address receiver for COMPACT systems with two analog audio outputs (music and announcements).

• Double connection to Ethernet for installations with redundant network systems.

• IP address, gateway and network mask saved in flash memory.

• Indicator LEDs of audio output, streaming, power supply, operation, failure and monitoring of Ethernet.

• USB connection for system monitoring.

• Full range power supply (100-240Vac).

• Equipment with one unit height and half unit width of 19 ”rack.

• Supervision of the equipment operation by means of software and/or basic TELNET functions.
