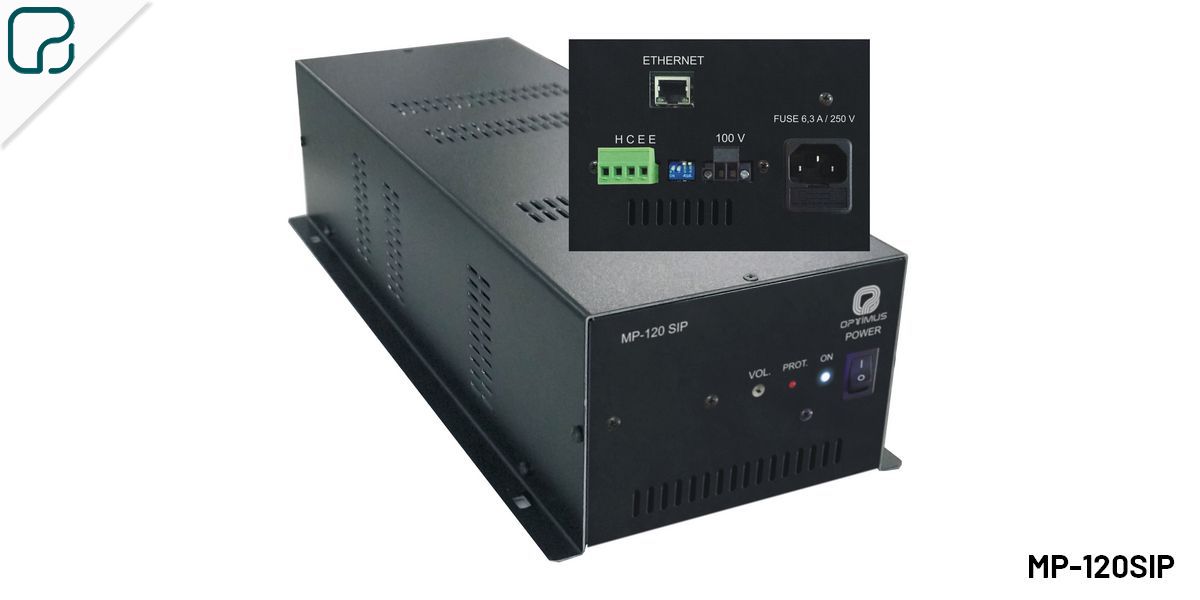

MP-120SIP

Product Code : MP-120SIP

Brand Category : IP/SIP PUBLIC ADDRESSES

Description

Power module with a class D digital power unit with loudspeaker output for 100-V line, volume control, protection circuits against peaks, short-circuits, overheating and overloading and power supply and protection led indicators. With IP / SIP connection and additional 0 dB audio output.

Technical Specification

Power supply	230 Vac, 50 Hz
Nominal power	120 W
Loudspeaker output	100-V
Audio output	775 mV / 0 dB
Frequency response	80 ~ 18,000 Hz
Signal-to-noise ratio	> 85 dB
Harmonic distortion THD	< 0.1%
Ethernet	10 / 100 Mbps
Refrigeration	Fans
Consumption	150 W
Dimensions (mm)	132 x 92 x 385
Weight	2.4 Kg
