MT-100

Product Code : MT-100

Brand Category : High powers

Description

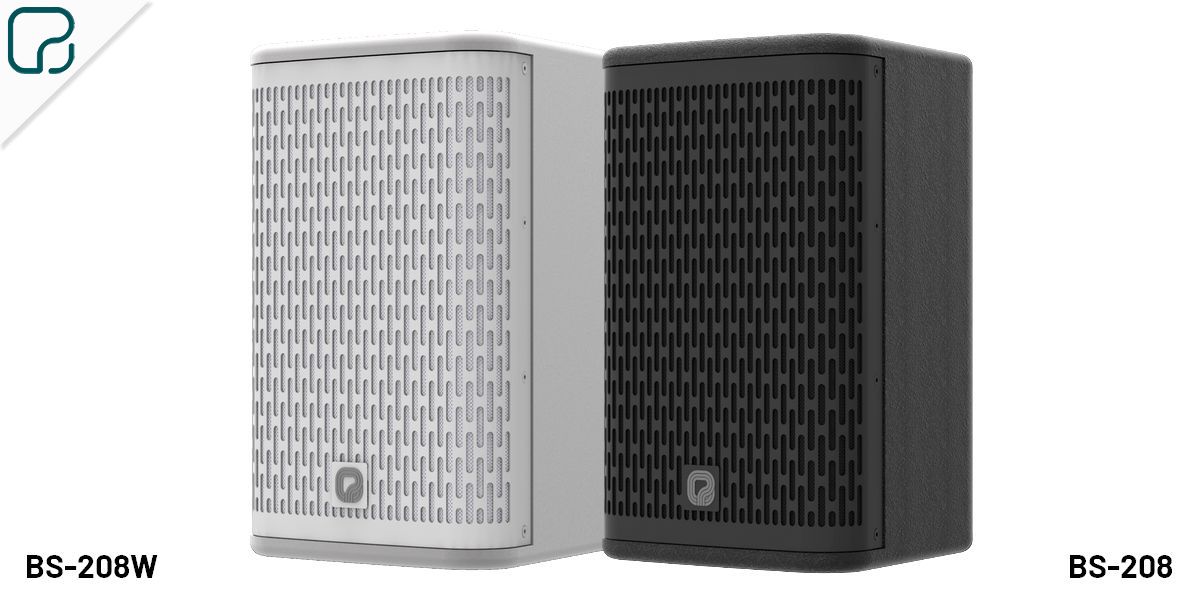

2-way speaker made of birch plywood, with a passive crossover, high-quality 8 “transducer and 1” Kapton driver with high sensitivity and lower distortion for outstanding detail and clarity in high frequencies without harshness. Dual Euroblock and NL4 connectors (input and link) for easy connection. U-type bracket included. Also available in 100 W /100 V version (ref. BS-208T and BS-208WT).

Add to Query Cart PDF Download

Technical Specification

Type	2-way speaker
Enclosure	trapezoidal bass reflex
Power	170 W RMS / 340 W program
Frequency response	70 ~ 18,000 Hz
Impedance	8 Ω
Transducers	8” woofer + 1” tweeter Kapton driver
Dispersion	60° (H) x 40° (V)
Crossover frequency	2,200 Hz
max SPL (peak)	118 dB @ 1m
Connectors	2x NL4MP speakon + Euroblock
Finish	birch plywood 12 mm + metallic grille
Colour	black (BS-208) or white (BS-208W)
Support	U type (included) or swivel bracket (option)
Dimensions (mm)	245 (width) x 255 (depth) x 385 (high)
Weight	8 kg
