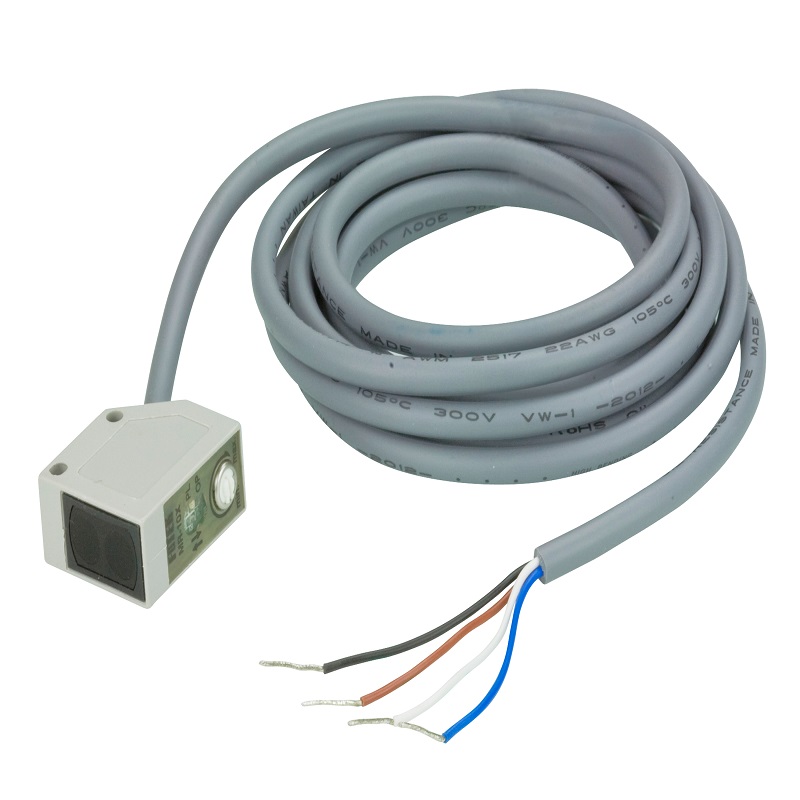

Product Code : EA1440
Brand Category : Accessories
| Sensing distance | 10 cm |
| Operating voltage | 10 - 30 VDC; Ripple<20% Peak to Peak |
| Current Consumption | 30 mA(Max) |
| Output method | NPN & PNP Two Output |
| Output status | Normal open NO type |
| Output current | 150 mA(Max) |
| Leakage current | 0.8 mA(Max) |
| Residual voltage | 0.6 mA(Max) |
| Protection circuit | Short Circuit & Polarity Protection |
| Sensor Response Time | 1 ms(Max) |
| Sensitivity adjuster | 270° Trimmer |
| Hysteresis | 10% of Sensing Distance Max |
| Emitter | Infrared LED |
| Illumination | Sunlight < 10,000Lux.; Lamplight < 5,000Lux. |
| Physical Properties | |
| Housing | Plastic |
