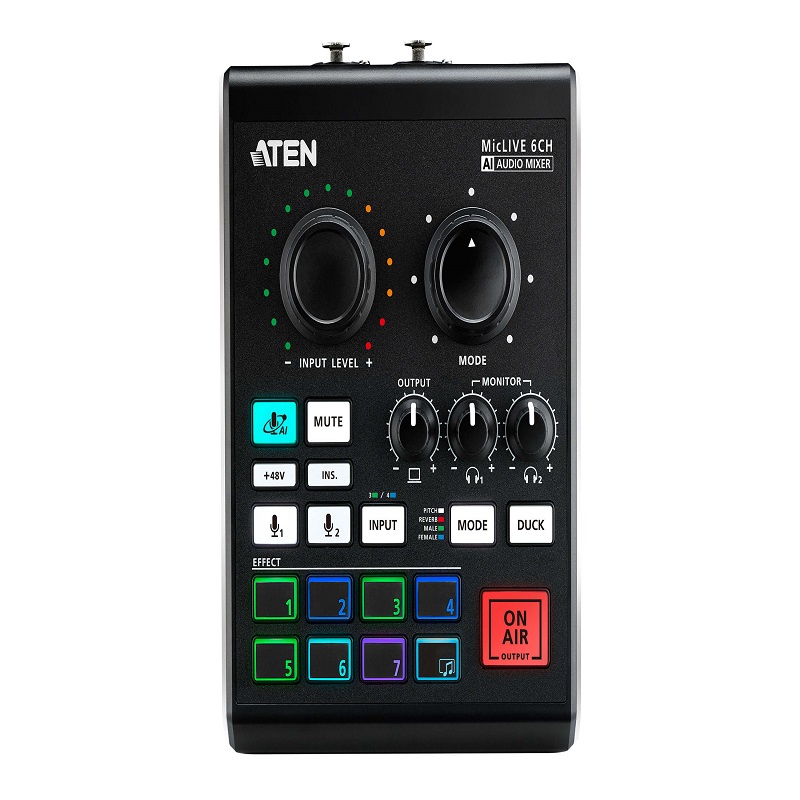

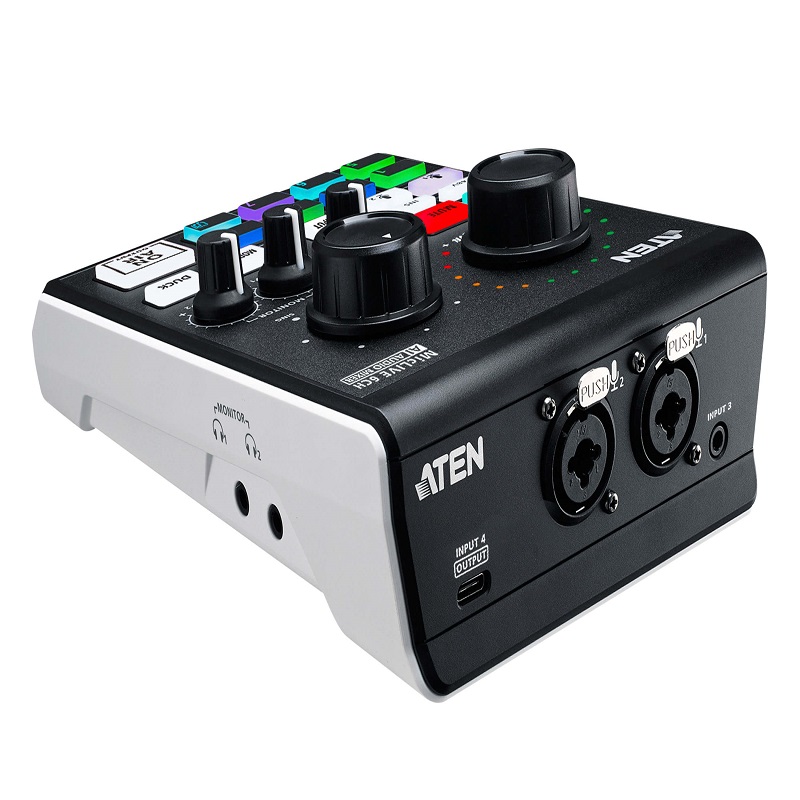

Podcast AI Audio Mixer | MicLIVE™ 6-CH

Product Code : UC8000

Brand Category : Capture

Description

All-in-one design simplifies audio mixing workflow for podcasting – offers up to 6-channel audio inputs, DSP and AD / DA converter, and adds audio up to 24-bit / 96 kHz to any USB-C-enabled laptop or tablet
The industry’s first AI-optimized audio mixer – enhances microphone audio quality with enhanced acoustic models, SmartEQ, so anyone can have a real-time, high-quality recording
Jingle pads save up to 8 sound samples that can be customized from audio sources from a computer, microphone, and other audio inputs for a professional radio programming experience
Contains 24 Voice FX programs, including 6 adjustments in reverb effect, 6 in pitch effect, and 12 in gender effect
Audio routing and multichannel audio mixing – allow for mixing audio input signals and routing it to any of the available output interfaces
Advanced reverb effects – enhance your vocals, instruments, and the entire mix for professional broadcast and post-production
The auto ducking function lowers background music anytime one speaks, ensuring the speaker’s voice is always heard, loud and clear, during broadcasting
Diversified input interface options – supports audio media from professional XLR combo microphones, musical instruments, USB audio sources, and phone-in for mixing
Built-in preamp that provides gain for instruments and the microphone’s signal, and a phantom power supply that delivers reliable +48V phantom power for condenser microphones
Supporting Windows and Mac OS, the OnAir Audio software gives users complete control over every parameter while allowing them to simply assign audio samples from their computers through an intuitive interface

Technical Specification

Audio Inputs
Interfaces	XLR Combo: 2x XLR-3-31(1:GND, 2:HOT, 3:COLD) or 6.3mm (1/4") standard TRS jack ( T:HOT, R: COLD, S:GND ) Line-in: via 1/8” 4-pole TRRS phone female( T: Left, R: Right, R: GND, S: MIC. CTIA standard ) USB Audio-in: via USB TYPE-C
Audio Outputs
Interfaces	Line-out: via 1/8” 4-pole TRRS phone female ( T: Left, R: Right, R: GND, S: MIC. CTIA standard ) USB Audio-out: via USB TYPE-C Headphone Monitoring: 2x 1/8" TRS phone female
Audio Sampling	24-bit/96kHz
Connection	1x USB TYPE-C female , USB bus-powered
Microphone Inputs
Frequency Response	20Hz - 20kHz
Dynamic Range	90dB
THD+N	-82dB
Maximum Input Level	12.5mVrms
Gain Range	40dB (For Dynamic Microphone), 30dB (For Condenser Microphone )
Impedance	3KΩ (Typ)
Phantom power	+48VDC
Noise EIN	-128dBu or less
Instrument Inputs
Frequency Response	20Hz - 20kHz
Dynamic Range	82dB
THD+N	-80dB
Maximum Input Level	440mVrms
Impedance	1MΩ
Line Inputs
Frequency Response	20Hz - 20kHz
Dynamic Range	95dB
THD+N	-90dB
Maximum Input Level	1Vrms
Impedance	2.5KΩ (Typ)
Line Outputs
Frequency Response	20Hz - 20kHz
Maximum output Level	1Vrms
Impedance	200Ω
Headphone Outputs
Frequency Response	20 Hz - 20 kHz
Maximum output Level	2Vrms
Impedance	10Ω
Digital Audio
ADC Dynamic Range	92dB
DAC Dynamic Range	95dB
Maximum Input Level	+4 dBu
Environmental
Operating Temperature	0–40°C
Storage Temperature	-20–60°C
Humidity	0–80% RH, Non-condensing
OS Support	System requirements for PC and Mac: • Intel i3-series 2 GHz multicore processor (or AMD , Apple M1 equivalent) or faster • 2 GB RAM (8 GB or more recommended) • USB-C™ interface with USB 3.0 or higher compatibility • Windows 10 or higher , Mac OS® 10.11 or higher System requirements for iPads: • iPad Pro (3rd gen or later) • iPad Air (4th gen or later) iPad Mini (6th gen or later)with USB-C™ interface • iPad Pro (1st and 2nd gen) • iPad (5th gen or later) • iPad Air (3rd gen) • iPad Mini (5th gen) with phone Jack or adatper OnAir-Audio Software: -Windows 10 or higher, 64-bit -Mac OS 10.13 or higher, 64-bit
Power Consumption	DC5V:2.55W:12BTU
Physical Properties
Housing	Plastic
Weight	0.42 kg ( 0.93 lb )
Dimensions (L x W x H)	13.05 x 18.09 x 6.27 cm (5.14 x 7.12 x 2.47 in.)
