Professionals Online UPSs

Product Code : OL3000LV

Brand Category : Professional Online UPS

Description

Output voltage regulation < 1% – provides higher performance and efficiency for critical applications
Programmable power management outlets – users can easily and independently control load segments. During power failure, this feature enables users to extend battery time to mission-critical devices by shutting down noncritical devices

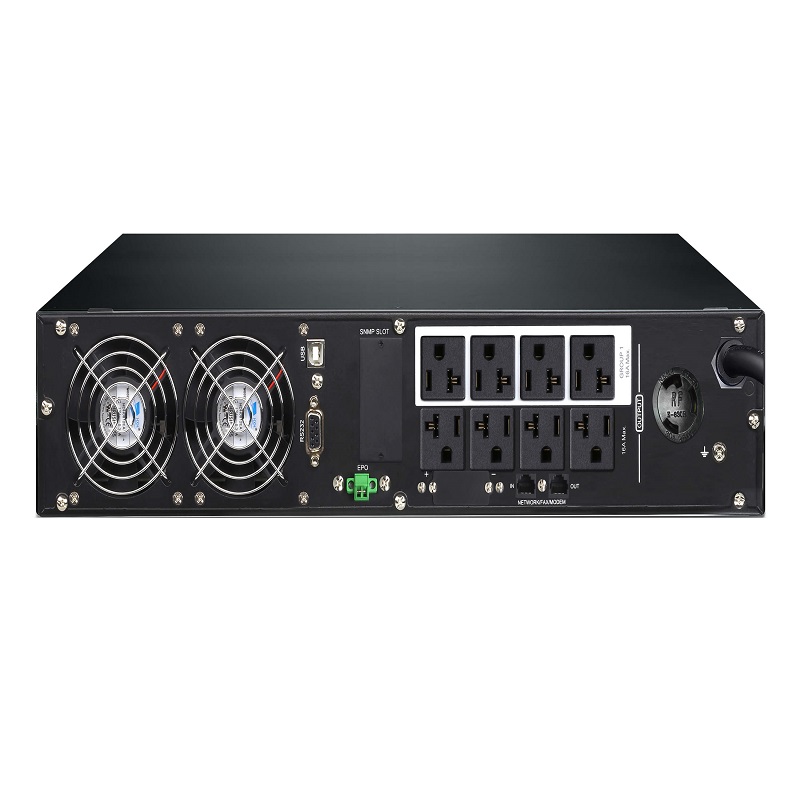

Emergency Power Off function (EPO) – EPO connector at rear panel allows emergency UPS Power Off from a remote location
SNMP + USB + RS-232 multiple communications – allows either USB or RS-232 communication ports to work with SNMP interface simultaneously
Hot swappable battery design – all potential UPS maintenance, including complete power module exchange, can be performed without powering down connected equipment As long as utility power is on, users can leave the UPS and connected equipment on while replacing the battery
ECO mode for energy saving – offers up to 97% effi ciency to cut energy usage and cost. UPS power application via static bypass timely returns to online double conversion when the need arises
Provides over-voltage cut-off protection and surge immunity by MOV for full-time equipment protection
High power factor charger up to 1000W capacity with very low ripple current when charging battery

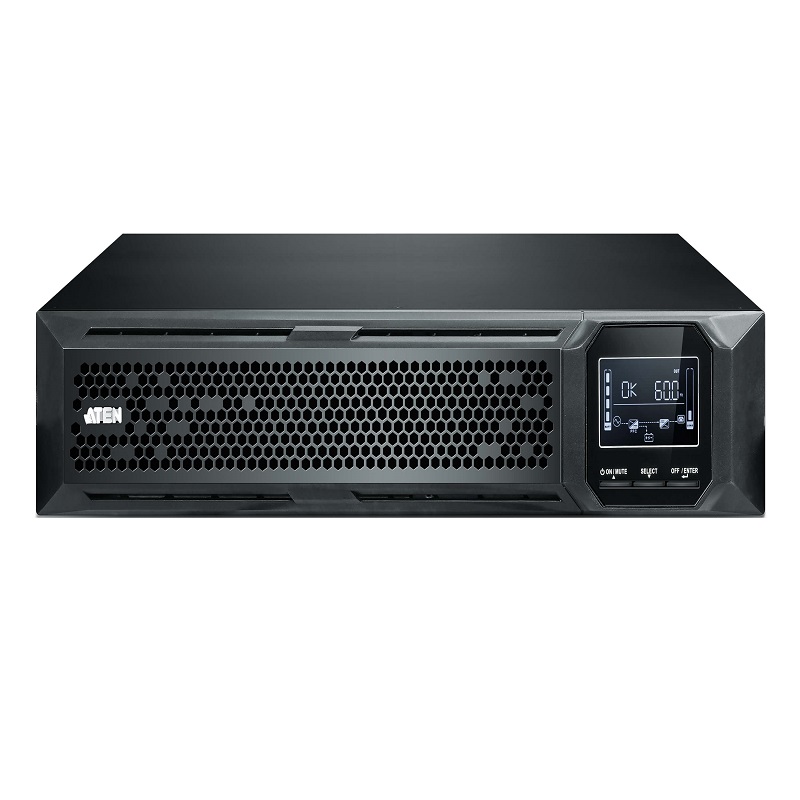

Multi-functional LCD interface – displays immediate, detailed information on input voltage, battery capacity, power status, battery status, operating status, and assessed backup runtime, etc
Smart battery charger design to optimize battery performance – adjusts charging voltage according to outside temperatures and extends the useful service life of batteries.

Technical Specification

General
UPS Topology	Double-Conversion
Energy Saving(max)	>96%(ECO) >91%(AC) >90%(Batt)
HID Compliant USB Port	Yes
Serial Port	Yes
SNMP / HTTP Remote Monitoring	Yes - Optional SNMP CARD
Input
Voltage	100 / 110 / 115 / 120 / 125 / 127 V AC (127 V AC not applicable for U.S. region)
Input Voltage Range	80-150 VAC ± 5%@ 100% load 55-150 VAC ± 5%@ 50% load Derate capacity to 80% when the output voltage is adjusted to 100VAC
Input Frequency Range	40 Hz ~ 70 Hz
Rated Input current	26.4A
Input Power Factor	≧ 0.99 @ nominal voltage (100% load)
Cold Start	Yes
Plug Type	NEMA L5-30P
Power cord	6ft
Output
VA	3000
Watts	2880 (TUV) 2850 (UL)
On Battery Waveform	Sine Wave
On Battery Frequency	50/60Hz +/- 0.1 Hz
Outlets - Total	9 (TUV) 7 (UL)
Outlet Type	(8) NEMA 5-20R,(1) NEMA L5-30R (TUV) (6) NEMA 5-20R+(1)NEMA L5-30R (UL)
Outlets - Battery & Surge Protected	9 (TUV) 7 (UL)
Rated Power Factor	0.96
Crest Factor	3:1
Harmonic Distortion	≦2 % THDv(Linear Load) ≦ 4 % THDv (Non-linear Load)
Voltage Regulation	± 1%(Batt)
Transfer Time(AC to Batt.)	0ms
Transfer Time(Inverter to Bypass)	4ms(ECO)
Battery
Runtime at Half Load (min)	9.79 (TUV) 10.1 (UL)
Runtime at Full Load (min)	3.41 (TUV) 2.96 (UL)
Battery Type	Sealed Lead-Acid
Battery Pack Voltage	72V
Battery Size	12V/9AH
Battery Quantity	6
Hot-Swappable	Yes
Typical Recharge Time	3 hours recover to 95% capacity@2A charging current. Max charger current 8A
Extended Battery Module	BP72V18AH
Replacement Battery Pack	BC72V9AH
Replacement Battery Pack Quantity	1
Physical Properties
Rack Unit	2U
Type	Rack/Tower
Dimensions (L x W x H)	8.80 x 43.80 x 63.00 cm (3.46 x 17.24 x 24.8 in.)
Weight	29.50 kg ( 64.98 lb )
Environmental
Temperature (Operating / Storage)	0–40°C (non-condensing) / -20 – 50°C
Humidity (Operating & Storage)	20–90 % RH / 10% – 95%(No condensing)
Audible noise at 1M from surface of unit	Less than 50dB
Certifications
Certifications	cTUVus (TUV) UL (UL)
Approvals	VCCI, BSMI, FCC Class A, RoHS
Package Contents	1x Rack Mounting Kit 1x Rail Slide Kit 1x RS-232 Cable 1x USB Type A to B Cable 1x Tower Stand Set
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
