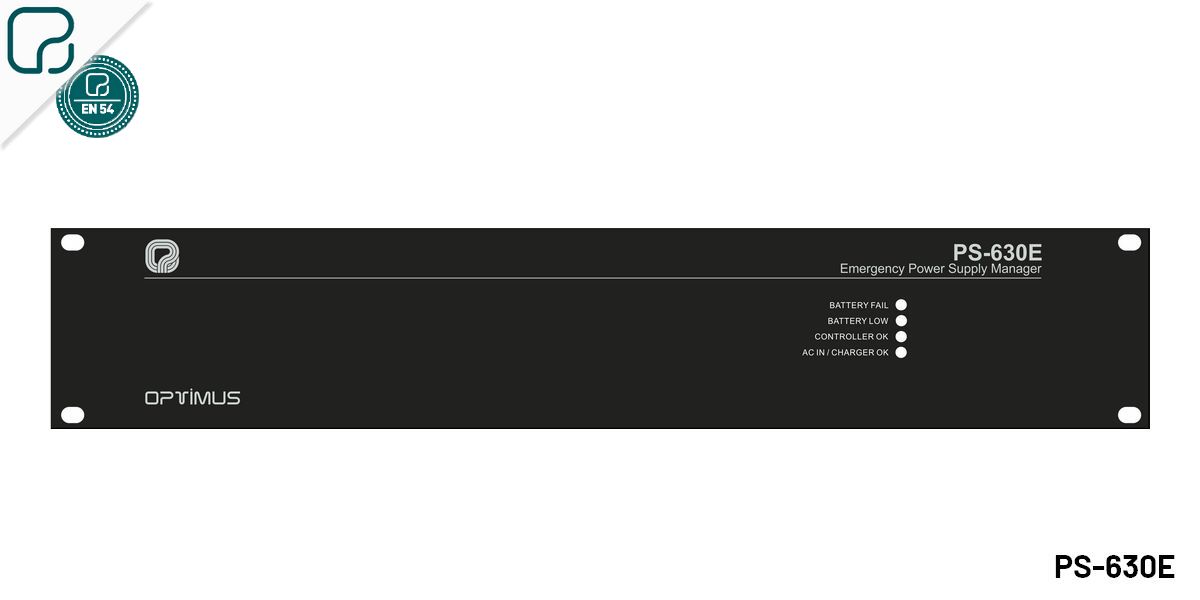

PS-630E

Product Code : PS-630E

Brand Category : Emergency power supply

Description

The emergency power supply manager allows the permanent emergency power supply in accordance with EN 54-4, in the event of a power failure. The 19” unit (2U) is equipped with 6 fused outputs that can be used with up to 30 A load. The smart battery condition monitoring ensures an uninterrupted 24 V DC power supply and the recharging of the battery immediately after the restoration of the mains supply. Due to the “hot swap” technology the exchange of the batteries can be done without service interruption

Technical Specification

Input Voltage	230 V AC 50-60 Hz
Output Voltage	24 V DC
Consumer Output	6
Load current consumer output	max 30 A
Fuse consumer output	max 40 A
Power Consumption	250 W
Battery Capacity	32-150 Ah
Dimensions	483 (width) x 88 (height) x 277 (depth)
Weight	6.20 kg
