PT-1BF

Product Code : L358P

Brand Category : Call and signaling modules

Description

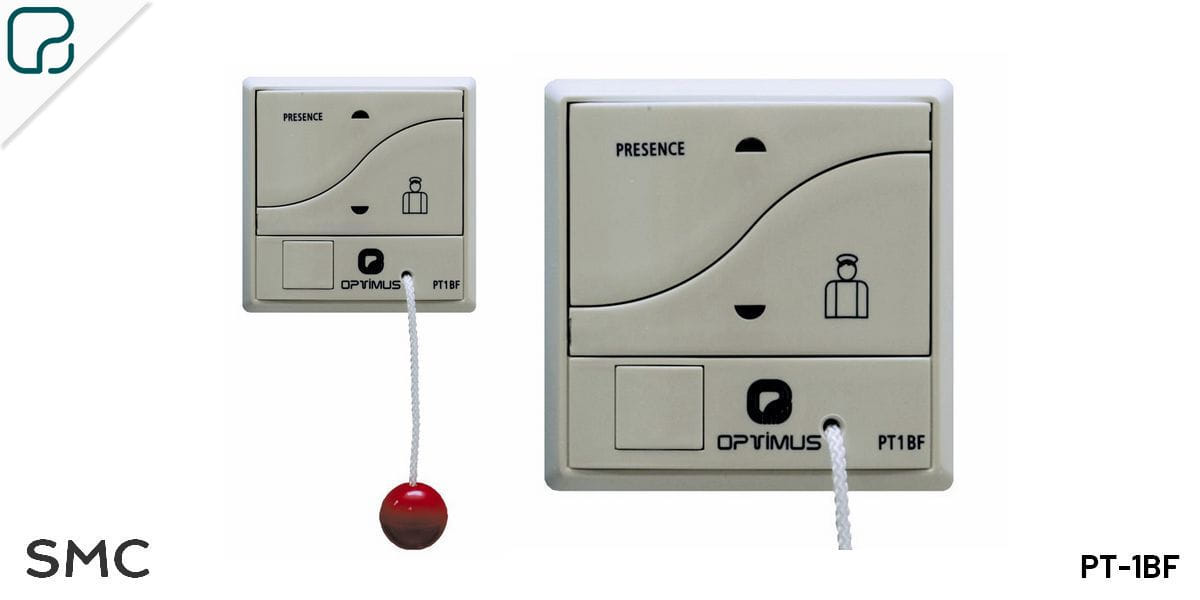

Call and presence module with pull-cord

Signalling and call mechanism for flush mounting and signalling of call to the centres. It is connected to a remote unit (UR or UC series) or to a TH-02F/TH-03F intercommunicator to complete the equipment of the call points. The mechanism has pull cord for urgent call, buttons for presence and normal call, emergency call and LEDs of call in progress and active presence. Built-in frame.

Technical Specification

Power supply	24 V DC
Consumption	24 mA
Dimensions (mm)	84 x 84 x 10
Finish	ABS white colour
Boxes	C-171S (surface) / L-170E (flush)
Connections (push buttons)	2 x 0,25 mm2 (to TH / UR)
Connections (LEDs)	3 x 0,25 mm2 (to TH / UR)
