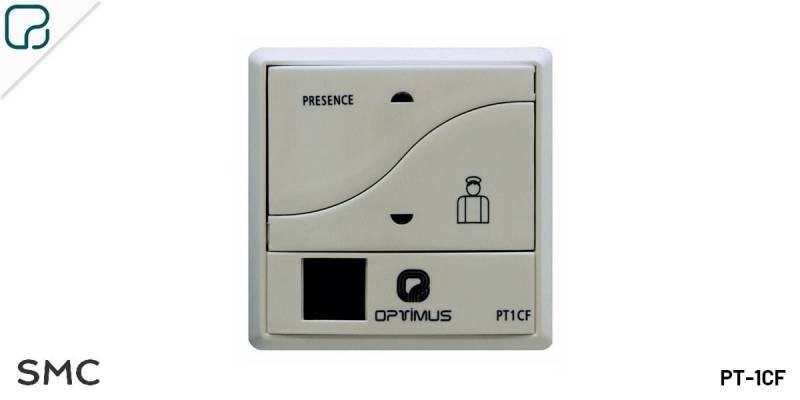

PT-1CF

Product Code : L356P

Brand Category : Call and signaling modules

Description

Call and presence module with connector for handheld calling unit

Signalling and call mechanism for flush mounting and signalling of call to the centres. It is connected to a remote unit (UR or UC series) or to a TH-02F/TH-03F intercommunicator to complete the equipment of the call points. The mechanism has buttons for presence and normal call, emergency call, RJ45 connector for ML controls and LEDs of call in progress and active presence. Built-in frame.

Technical Specification

Power supply	24 V DC
Consumption	24 mA
Dimensions (mm)	84 x 84 x 10
Finish	ABS white colour
Boxes	C-171S (surface) / L-170E (flush)
Connections (push buttons)	2 x 0,25 mm2 (to TH / UR)
Connections (LEDs)	3 x 0,25 mm2 (to TH / UR)
