Room Booking System - 10.1" RBS Panel

Product Code : VK430

Brand Category : Room Booking System

Description

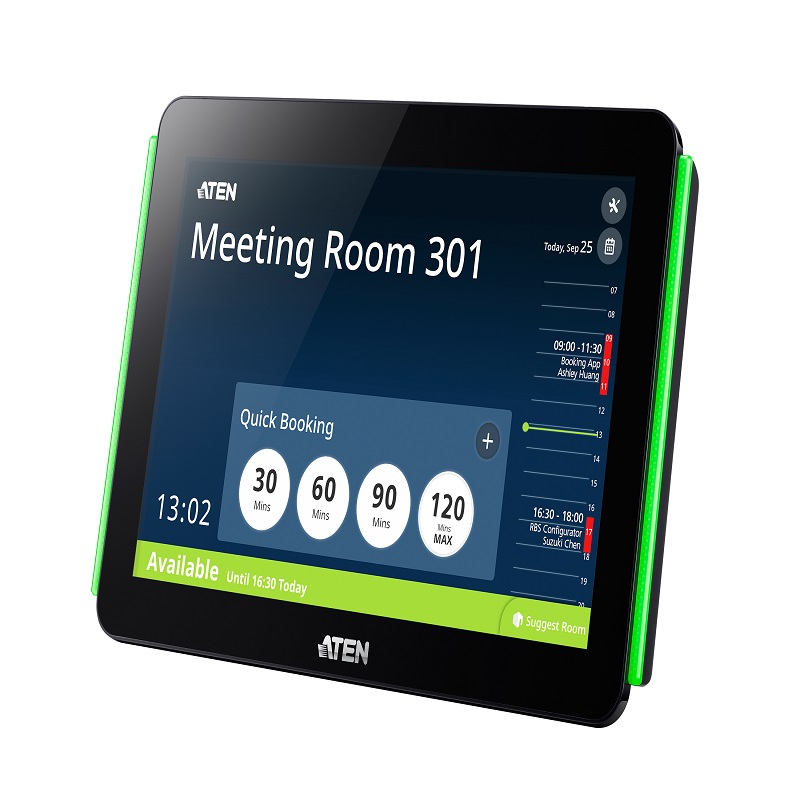

10.1” capacitive touch-screen panel
Supports integration with calendar servers, such as Microsoft 365 Calendar, Google Workspace Calendar, and Microsoft Exchange Server
Supports RBS Configurator for batch upgrade, customizable booking options, and calendar settings

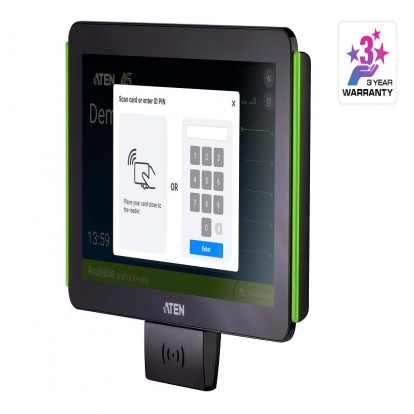

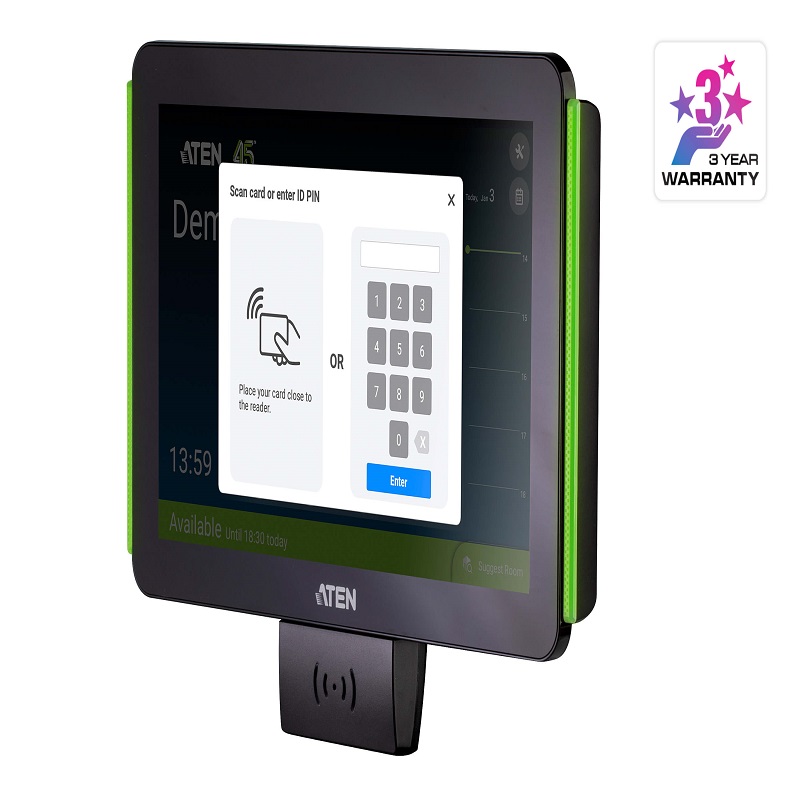

In conjunction with the VK401, the system enables exclusive card-access functionality; only authorized users can scan cards to book and check in meeting rooms and facilitate conference room automation
Supports central management through ATEN Unizon to allow administrators to monitor managed devices in real time, generate room usage analyses, and update app in batch
Support TCP protocol for third-party system integration
Supports Power over Ethernet (PoE), which allows it to receive power and communication over a single Ethernet cable
LED light bars illuminating user-defined colors to indicate the room’s availability at a glance
Preinstalled with a wall mount kit and provided with 3M VHB™ Tape for easy mounting onto a hard or glass wall
75*75 mm VESA-compliant for flexible mounting across various installation scenarios

Technical Specification

Processor	Quad-core
Memory
SDRAM	2GB
Flash	16GB
Panel Spec
Display Type	TFT-LCD
Size	10.1"
Touch Screen	Capacitive
Resolution	1280 x 800
Aspect Ratio	16 : 10
Color Depth	8 bit
Contrast Ratio	800 : 1
Backlight	LED
Viewing Angle	± 85° (H), ± 85° (V)
Luminance	500 cd/m⊃2;
Interfaces
Ethernet	1 x RJ-45 Female, 10 / 100 / 1000 BaseT
USB	1 x USB Type A
Power Inputs
Power over Ethernet (PoE)	802.3 at PoE+
Power Consumption	DC12V:17.8W:60.70BTU POE:20W:68.24BTU
Environmental
Operating Temperature	0 – 40°C
Storage Temperature	–10 – 55°C
Humidity	10 - 80% RH, Non-Condensing
Physical Properties
Housing	Plastic
Weight	0.68 kg ( 1.5 lb )
Dimensions (L x W x H)	26.30 x 17.78 x 2.45 cm (10.35 x 7 x 0.96 in.)
Note	No license is required for running ATEN Room Booking System. However, additional costs may be charged for the resource accounts by the calendar service provider.
