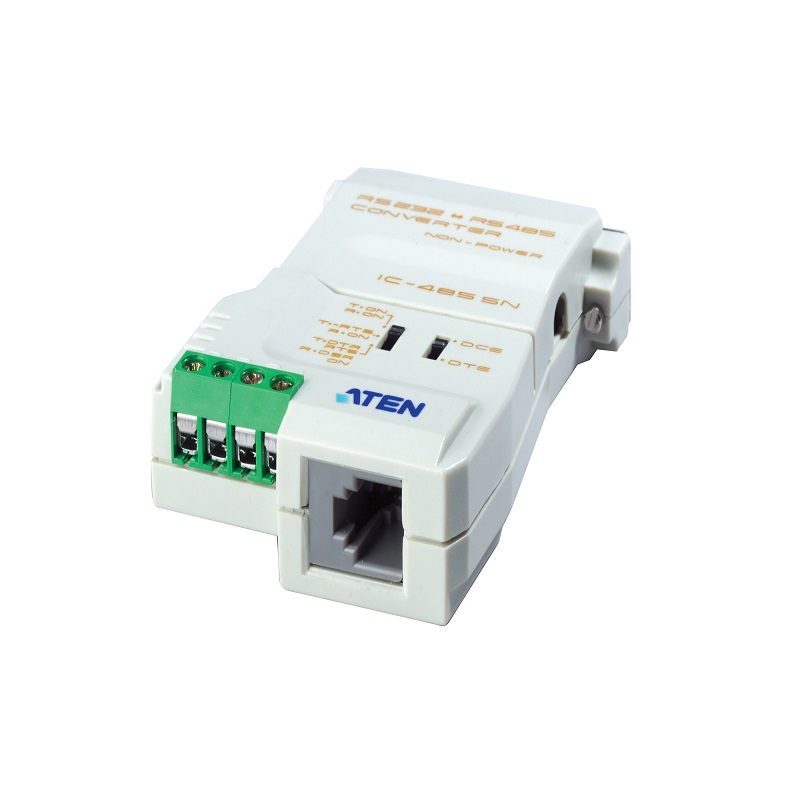

RS-232/RS-485 Interfaces Converter

RS-232/RS-485 Interfaces Converter

Product Code : IC485SN

Brand Category : Industry Controls

Description



  • Data transmission controlled by the RTS signal.
  • DCE/DTE selectable.
  • Point to point, multidrop, and simplex/duplex link selection.
  • Four wire full duplex; Four wire half duplex.
  • Compact size.
  • Cable distance of up to 1200m (4000 ft.).
  • Non powered operation.
  • Supports baud rates up to 115.2Kbps.
  • OS Support: Windows 2000, Windows XP



Add to Query Cart PDF Download

Technical Specification

Connectors 1 DB-25 Female (RS-232)
RS-485 / RS-422 Four Terminal Block
1x RJ-11 Female
Switches DCE, DTE
TxON, RxON
TxRTS, RxON
TxDTR/RTS,RxDSR/ON
Power Consumption DC9V:0.03W:1BTU
Signal Range 1200 m [4000'] (Max)
Data Rate Up to 100 Kbps under 1200 m [4000']
Environmental
Operating Temperature 0 ~50˚C
Storage Temperature -20 ~ 60˚C
Humidity 0~80% RH, Non-condensing
Physical Properties
Housing Plastic
Weight 0.06 kg ( 0.13 lb )
Dimensions (L x W x H) 7.90 x 5.45 x 2.10 cm
(3.11 x 2.15 x 0.83 in.)
