Product Code : L605
Brand Category : Control access industrial intercoms
An intercommunicator with front plate and stainless steel call button, one-way high sensitivity microphone and dampproof loudspeaker. Supplied with compact metal housing, internal metal grill for speaker valdal proof protection and special allen type screws to secure the front panel. Direct connection to the SMC bus.

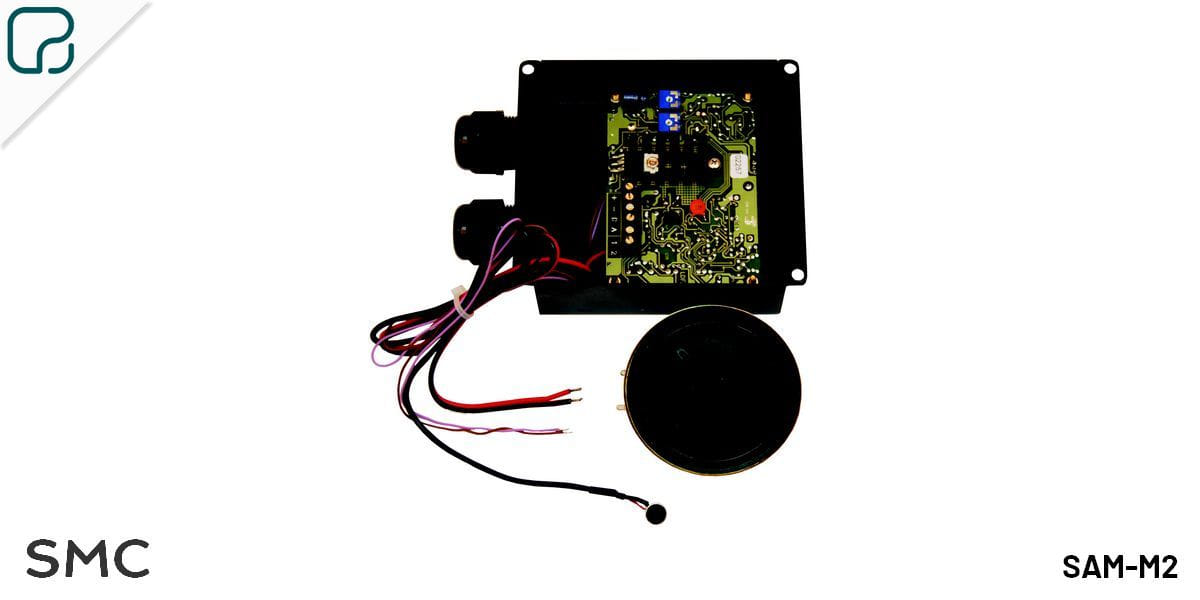

| Electronic board of audio substation mounted in metallic box |
|
Power supply |
24 Vdc |
|
Consumption (rest/max.) |
25 mA/230 mA |
|
Central connection |
5-line SMC bus |
|
Door opening connection |
2 x 0.5 mm2, max. 20 m |
|
Loudspeaker |
2.5” mylar, 16 Ω |
|
Dimensions (mm) |
128 x 110 x 5 (flush) |
|
Finish |
stainless steel |
|
Box for flush installation |
CAJ-24206 model |
|
Surface box |
CAJ-SAM model |
|
Relay (optional) |
U-RY |
