Slim HDMI Single Display KVM over IP Transmitter

Slim HDMI Single Display KVM over IP Transmitter

Product Code : KE8900ST

Brand Category : KVM EXTENDER


Description


  • Advanced Features*
    • Lossless video compression up to 1920 x 1200 @ 60Hz with low latency
    • ATEN Matrix Link– allows users to instantly link transmitters and receivers to perform real-time port and profile switching on an iPad
    • Fast Switching – switching between different remote video resolutions on a local display within 0.3 second
    • Flexible connections – allows multiple extender and matrix connections for multi-display installations and video wall applications
    • “Push” and “Pull”– share content instantly by just one click
    • Boundless Switching – simply moves the mouse cursor across screen borders to switch between different receivers (Rx)
    • Video Walls – creates multiple video walls with up to 12 x 12 (144 displays max.) in each layout
    • Advanced Scheduling – improves efficiency and saves costs by allowing connections to be set based on time and date
    • Virtual Transmitter – independently streams video, audio, USB, and serial sources from different Tx
    • Internal and external authentication support – LDAP, Active Directory, RADIUS and TACACS+
    • Advanced User Authorization Settings – administrators can set up to four access modes on Tx devices for collaboration or prevention of interference among users
    • Configurable user and group permissions for access and control of the KVM over IP extenders
    • Tx grouping of up to 4 sets of KVM over IP transmitters to support multi-display applications

      Note: *These advanced functions are supported when the KVM over IP extenders are managed by CCKM

  • Slim Matrix Mode
    • Works without CCKM centralized management
    • Fast Switching – switching between different remote video resolutions on a local display within 0.3 second (OSD available only with Slim Matrix Mode)
    • Hotkey switch ports – supports to switch to the other transmitters by pre-defined hotkeys Ctrl + F1 ~ Ctrl + F12
    • Supports primary server reconnect notification

  • Hardware
    • High speed USB Storage Transmission support
    • Compliant with HDMI
    • Auto-MDIX – automatically detects cable type
    • Built-in 8 KV / 15 KV ESD protection and 1 KV surge protection
    • Slim, light and fanless design for silent operations that are energy efficient
    • Support connection via Gigabit Ethernet port
    • Wall mounting, and rack mounting available

  • Management
    • OSD (On Screen Display) – enables configuration of both Tx / Rx devices on the receiver’s display screen
    • EDID Expert™ – selects optimum EDID settings to prevent video compatibility issue caused by different monitors
    • On-screen Preview (Panel Array™ Mode) – allows users to view the video of up to 36 displays on one screen
    • Video Compression Level – allows users to increase/decrease the video quality to adjust for appropriate network bandwidth
    • Command Line Interface – administrators can control all KVM over IP extenders via RS-232 or Telnet by issuing commands or 3rd-party application
    • RS-232 serial ports – allow you to connect to a serial terminal for text menu, CLI, or serial devices such as touch screens and barcode scanners
    • Compatible with all KE extenders

  • Security
    • Dedicated LAN port for KE direct connections – can be isolated from the corporate network
    • Secure data transmission – AES encryption to secure Video/Keyboard/Mouse/Data transmission
    • Supports industry standard Transport Layer Security (TLS) protocol

  • Virtual Media
    • USB Storage Transmission mode enhances data transmission performance, ideally for file transfers, OS patching, software installations and diagnostic testing
    • Support USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
    • Support Smart Card/CAC Reader

Add to Query Cart PDF Download


Technical Specification

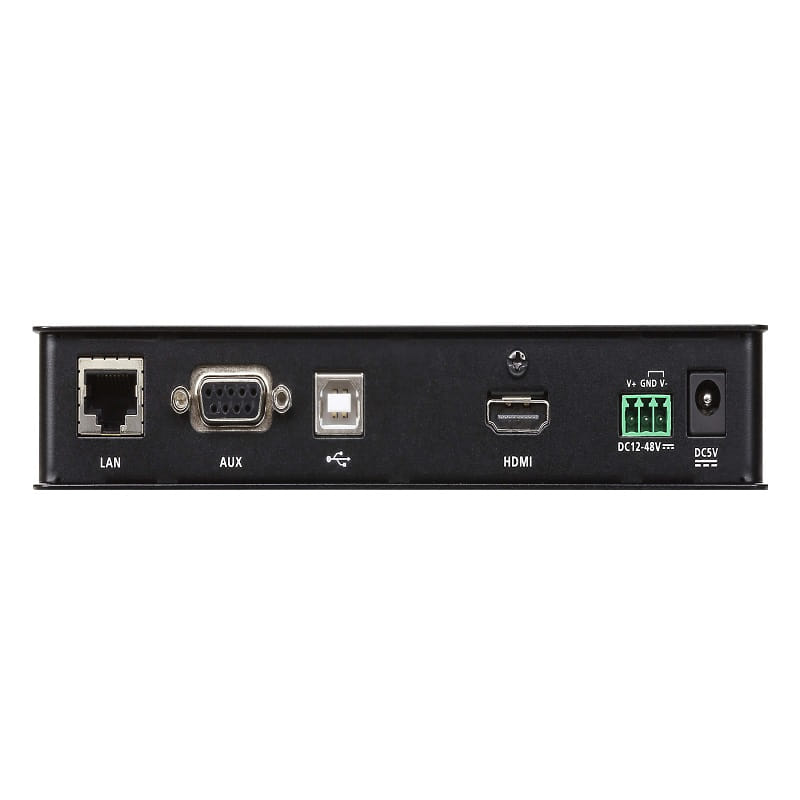

Connectors
KVM Ports 1 x USB Type B Female (White)
1 x HDMI Female (Black)
1 x DB-9 Female (Black)
Power 1 x DC Jack (Black)
1 x 3-Pole Terminal Block Connector (Green)
LAN Ports 1 x RJ-45 (Black)
Switches
Reset 1 x Semi-recessed Pushbutton
LEDs
10/100/1000 Mbps 1 (10: Orange / 100: Orange & Green / 1000: Green)
Power 1 (Blue)
Emulation
Keyboard / Mouse USB
Power Consumption DC5V:4.3W:20BTU
DC48V:6.61W:31BTU
Video Resolution Up to 1920 x 1200 @ 60Hz
Environmental
Operating Temperature 0–50°C
Storage Temperature -20–60°C
Humidity 0–95% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.65 kg ( 1.43 lb )
Dimensions (L x W x H) 18.20 x 11.75 x 2.87 cm
(7.17 x 4.63 x 1.13 in.)
