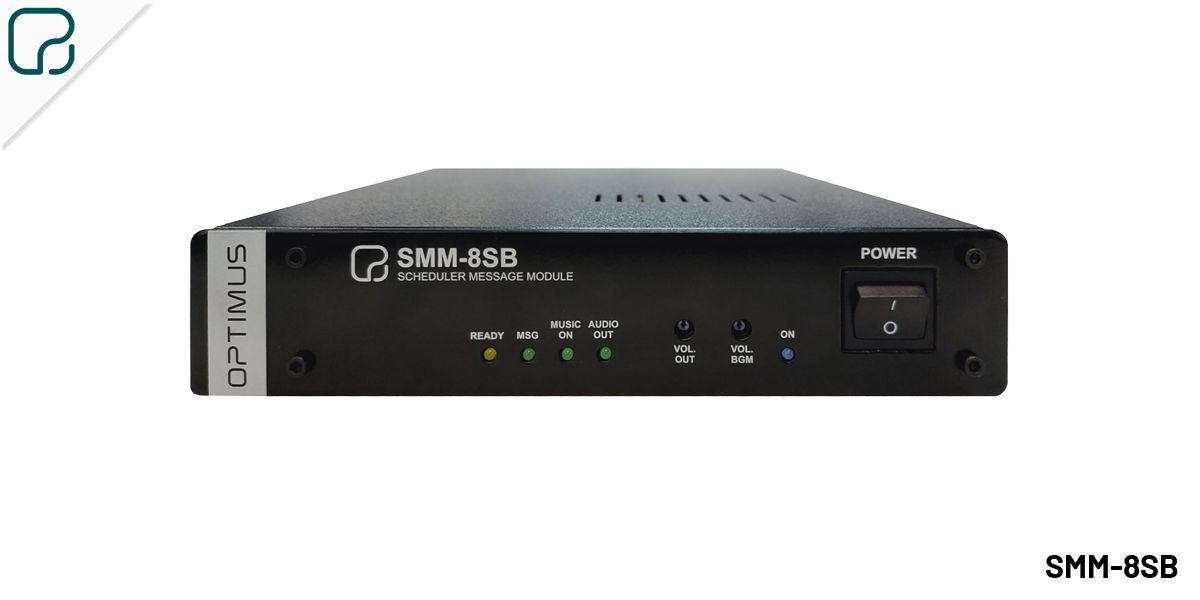

SMM8SB

Management system for sending sequences of pre-recorded audio messages with time programming and control of loudspeaker zones. In addition to the analog audio output, the device has an Ethernet port for sending the signal via IP multicast to compatible devices. It incorporates input and output contacts, and an audio input for local or streaming music broadcast. Easily integrated in any public address system, new installation or already in operation.

• Management of up to 100 hourly programmations to send prerecorded messages.

• Each message can combine up to 3 different audio files (WAV, OGG, MP3).

• Audio output (0 / -60 dB) with priority by relay and front panel volume control.

• Audio streaming (multicast) to OPTIMUS SIP equipment: speakers, amplifiers or audio interfaces.

• 0 dB audio input for local music broadcast or streaming (multicast).

• Up to 8 zone management through open collector outputs.

• Advanced time programming, start and end, time of launch, frequency, repetition and exceptions (holidays).

• 8 specific input contacts for messages and an additional one configurable as a message or ACK.

• Programming from computer via Ethernet connection and integrated WebServer. Stand-alone operation without computer.
