StreamLive™ HD All-in-one Multi-channel AV Mixer

Product Code : UC9020

Brand Category : Capture

Description

All-in-one design to simplify streaming workfl ow – integrates 1080p video capture, video recorder, video switch, streaming encoder, video converter, video splitter, and audio mixer
Professional-quality live streaming to global audiences by any CDN platform. With a low entry threshold, even entry-level users can quickly get started
1080p recording – features media recording that can be used to record a program and save recordings directly to a connected external hard drive via USB
Intuitive app for preview and program monitoring, change video layout in Full Screen / PBP / PiP settings, adding image and subtitles overlays, and smooth scenes transitions for a professional finish
Storyboard-like management – presets up to 8 scenes for later while streaming and during performances to reduce the need to interact with hardware

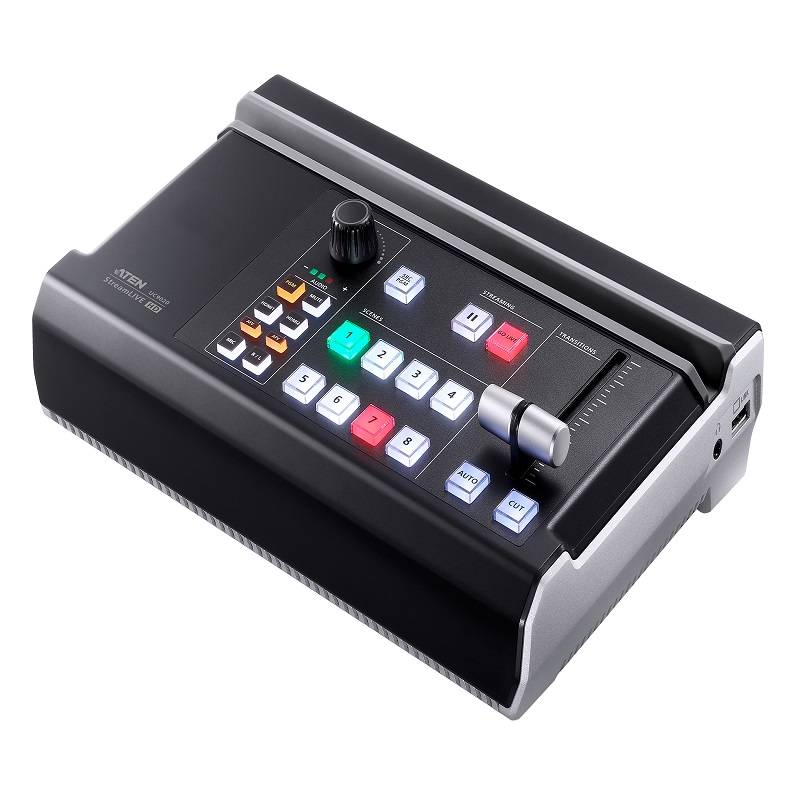

Compact mixer control panel – switches and mixes between multiple video & audio sources with the help of easily identifi able luminous keys
Fanless and optimized thermal air fl ow system for quiet operation
Multitask designed handle-stand to enhance portability and ergonomic comfort angle
Supports Android / Windows devices or iPads
Works with ATEN Stream to USB software – converts streams from multiple StreamLIVE HDs into USB webcam signals for delivering remote presentations on Skype, Zoom, MS Teams, OBS and more
Receives clean HDMI camera feed via ATEN OnAir Cam app – the app helps capture the iPhone / iPad camera feed and turn it into a clean 1080p @ 60 Hz HDMI video source without on-screen icons or overlays for the StreamLIVE HD's usage

Technical Specification

Video Input

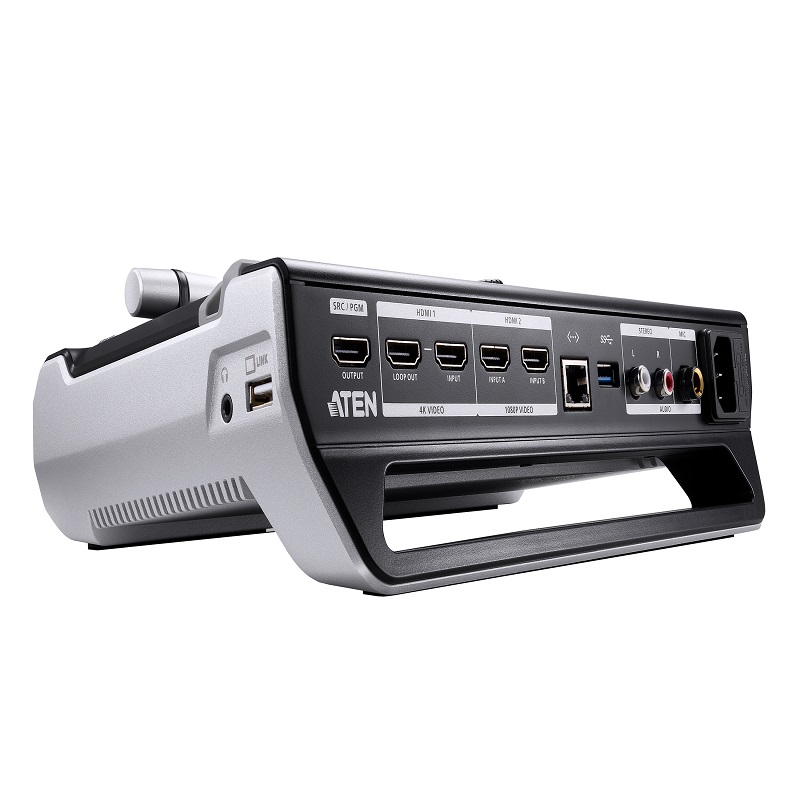

Interfaces	1 x 4K HDMI Type-A Female (up to 2160p60, unencrypted) 2 x HDMI Type-A Female (up to 1080p60, switcher, unencrypted )
Video Output
Interfaces	1 x 4K Loop-Thru HDMI Type-A Female (up to 2160p60, unencrypted) 1 x PGM HDMI Type-A Female (up to 1080p60, unencrypted)
Video Sampling	4:2:2 8-bit
Color Space	4:2:2 YUV
Video Resolution	HDMI 1 Input: VGA(640x480@60), 480p60/50/30/25, SVGA(800x600@60), XGA(1024x768@60), 720p60/50/30/25, SXGA(1280x1024@60), WXGA+(1440x900@60), UXGA(1600x1200@60 RB), WUXGA+(1680x1050@60), 1080p60/50/30/25, 2160p60/50/30/25 HDMI 2A/2B Input:* VGA(640x480@60), 480p60/50/30/25, SVGA(800x600@60), XGA(1024x768@60), 720p60/50/30/25, SXGA(1280x1024@60), WXGA+(1440x900@60), UXGA(1600x1200@60 RB), 1080p60/50/30/25 *Only selected port show video, another one show non-video photo or graph. SRC/PGM HDMI Output: 480p60/50/30/25, 576p60/50/30/25, 720p60/50/30/25, 1080p60/50/30/25 HDMI Loop-Through Output: VGA(640x480@60), 480p60/50/30/25, SVGA(800x600@60), XGA(1024x768@60), 720p60/50/30/25, SXGA(1280x1024@60), WXGA+(1440x900@60), UXGA(1600x1200@60 RB), WUXGA+(1680x1050@60), 1080p60/50/30/25, 2160p60/50/30/25
Audio Inputs
Interfaces	HDMI captured inputs (stereo) 1 x Mic input, 1/4" TRS jack (dual mono) 1 x Line input, RCA jack, signal level: -10 dBV
Audio Outputs
Interfaces	HDMI outputs (stereo) 1x 1/8" TRS jack (stereo)
Network Protocol	Dual-stream encoder supports direct live streaming to CDN sever over ethernet using Real Time Messaging Protocol (RTMP/RTMPS) ------------------------------------------------------- Video Encoding Format: H.264 Bit rate: 512Kbps~10Mbps Color format: YUV420 Resolution: 1080p30/25, 720p60/50/30/25, 480p60/50/30/25 ------------------------------------------------------------------- Audio Encoding Format: AAC Sampling Rate: 48kHz Bit rate: 128kbps
Recording Storage	Max. video resolution: 1080p30/25 File format：MP4 Support media: USB 3.x compatible mobile drive (HDD / SSD), at least 32GB of free space
Connection	1x USB 3.1 Gen1 Type-A Female (Blue) 1x USB2.0 Type-A(White) 1x GbE LAN port
Environmental
Operating Temperature	0 - 40 ºC
Storage Temperature	-20 – 60 ºC
Humidity	0 - 80% RH, Non-Condensing
OS Support	• iPad Pro (3rd gen or later) with iOS 11 and above The following iPad with iOS 11 and above (Additional Apple Lightning USB 3 Adapter is required): • iPad Pro (1st and 2nd gen) • iPad (5th gen or later) • iPad Air (3rd gen or later) • iPad Mini (5th gen or later)
Power
Maximum Input Power Rating	IEC C14, 100-240 Vac (w/250V fuse)
Power Consumption	AC110V:12.9W:80BTU AC220V:12.7W:79BTU
Physical Properties
Housing	Metal
Weight	1.89 kg ( 4.16 lb )
Dimensions (L x W x H)	28.85 x 18.99 x 9.66 cm (11.36 x 7.48 x 3.8 in.)
