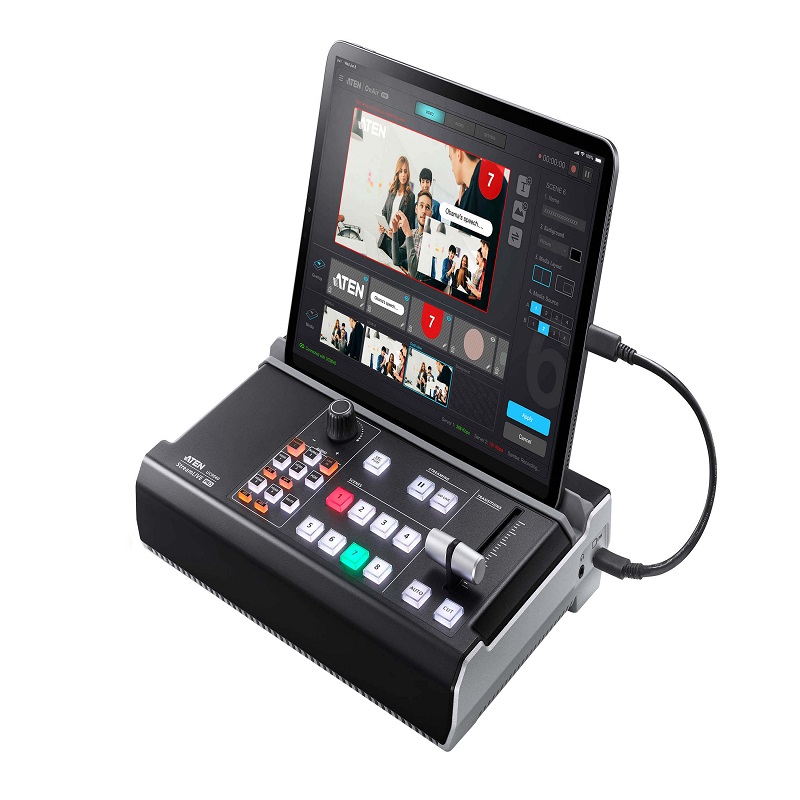

StreamLIVE™ PRO All-in-one Multi-channel AV Mixer

Product Code : UC9040

Brand Category : Capture

Description

All-in-one design to simplify streaming workflow – integrates capabilities of 1080p video capture, video recorder, video switch, streaming encoder, video converter, video splitter, and audio mixer
Professional-quality live streaming everywhere – compatible with every major platform and can livestream to two platforms at the same time from virtually anywhere
1080p recording – features media recording that can be used to record a program and save recordings directly to a connected external hard drive via USB

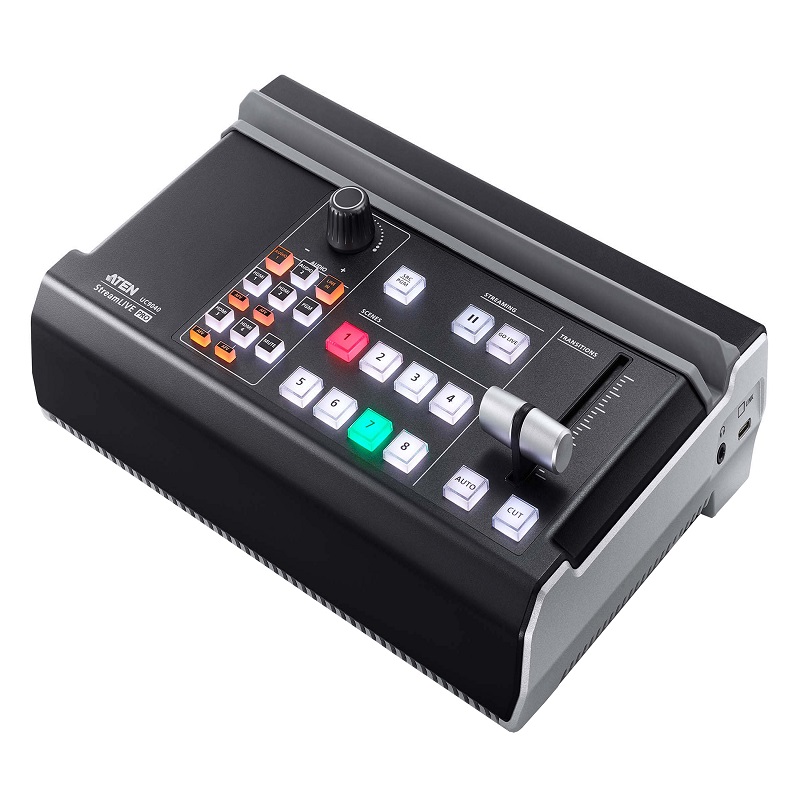

Compact mixer control panel – switches and mixes multiple AV sources with the easily identifi able luminous keys
Intuitive and powerful app OnAir – allows for preset up to 8 scenes with custom video layout, preview and full screen program monitoring, real-time editing, transitions in stunning DVE, PbP or PiP visual effects, and graphic and text overlays for a professional finish
DVE (Digital Video Effect) video transition – includes circle drop, window slice, polka dot, circle open, fade, heart, cross hatch, and random square
Storyboard-like management – quick and smooth transitions control for professional programming during live events
Audio Management – multi-channel audio mixing with faders, meters, and balance for every input
Fanless and optimized thermal air flow system for quiet operation
Multitask designed handle-stand to enhance portability and ergonomic comfort angle
Supports Android / Windows devices or iPads
Works with ATEN Stream to USB software – converts streams from multiple StreamLIVE™ PROs into USB webcam signals for delivering remote presentations on Skype, Zoom, MS Teams, OBS and more
Receives clean HDMI camera feed via ATEN OnAir Cam app – the app helps capture the iPhone / iPad camera feed and turn it into a clean 1080p @ 60 Hz HDMI video source without on-screen icons or overlays for the StreamLIVE PRO's usage

Technical Specification

Video Input
Interfaces	1 x 4K HDMI Type-A Female (up to 2160p60, unencrypted) 3 x HDMI Type-A Female (up to 1080p60, switcher, unencrypted )
Video Output
Interfaces	1 x 4K Loop-Thru HDMI Type-A Female (up to 2160p60, unencrypted) 1 x PGM HDMI Type-A Female (up to 1080p60, unencrypted)
Video Sampling	4:2:2 8-bit
Color Space	4:2:2 YUV
Video Resolution	HDMI 1 Input: VGA(640x480@60), 480p60/50/30/25, SVGA(800x600@60), XGA(1024x768@60), 720p60/50/30/25, SXGA(1280x1024@60), WXGA+(1440x900@60), UXGA(1600x1200@60 RB), WUXGA+(1680x1050@60), 1080p60/50/30/25, 2160p60/50/30/25 HDMI 2/3/4 Input: VGA(640x480@60), 480p60/50/30/25, SVGA(800x600@60), XGA(1024x768@60), 720p60/50/30/25, SXGA(1280x1024@60), WXGA+(1440x900@60), UXGA(1600x1200@60 RB), 1080p60/50/30/25 SRC/PGM HDMI Output: 480p60/50/30/25, 576p60/50/30/25, 720p60/50/30/25, 1080p60/50/30/25 HDMI Loop-Through Output: VGA(640x480@60), 480p60/50/30/25, SVGA(800x600@60), XGA(1024x768@60), 720p60/50/30/25, SXGA(1280x1024@60), WXGA+(1440x900@60), UXGA(1600x1200@60 RB), WUXGA+(1680x1050@60), 1080p60/50/30/25, 2160p60/50/30/25
Audio Inputs
Interfaces	HDMI captured inputs (stereo) 2 x 1/4"" TRS jack (dual mono)
Audio Outputs
Interfaces	HDMI outputs (stereo) 1x 1/8"" TRS jack (stereo)
Network Protocol	Dual-stream encoder supports direct live streaming to CDN server over ethernet using Real Time Messaging Protocol (RTMP/RTMPS) ------------------------------------------------------- Video Encoding Format: H.264 Bit rate: 512Kbps~10Mbps Color Format: YUV420 Resolution: 1080p30/25, 720p60/50/30/25, 480p60/50/30/25 ------------------------------------------------------------------- Audio Encoding Format: AAC Sampling rate: 48kHz Bit rate: 128kbps
Recording Storage	Max. video resolution: 1080p30/25 File format：MP4 Support media: USB 3.x compatible mobile drive (HDD / SSD), at least 32GB of free space
Connection	2x USB 3.1 Gen1 Type-A Female (blue) 1x USB Type-C 1x GbE LAN port
Environmental
Operating Temperature	0 - 40 ºC
Storage Temperature	-20 – 60 ºC
Humidity	0 - 80% RH, Non-Condensing
OS Support	System requirements for iPads: • iPad Pro (3rd gen or later) with iOS 11 and above The following iPad with iOS 11 and above (Additional Apple Lightning USB 3 Adapter is required): • iPad Pro (1st and 2nd gen) • iPad (5th gen or later) • iPad Air (3rd gen or later) • iPad Mini (5th gen or later) System requirements for Android tablets: • Android 9 and above • Octa-Core ARM Cortex grade CPU and above • Minimum 2.75GB system RAM • UC9040 with Firmware Ver.1.1.109 is also required System requirements for Chromebook: • Chromebook with Android APP support • UC9040 with Firmware Ver.1.3.121 is also required System requirements for Windows PC: • A PC with Windows 10 version 17763.0 or higher, 32/64-bit • CPU: Intel® i3 Dual Core 2.8Ghz or higher • RAM: 4GB or more • OnAir App for Window from Windows Store • UC9040 with Firmware Ver.1.3.122 is also required
Power
Maximum Input Power Rating	DC12V, 7.5A
Power Consumption	DC12V:17.37W:184BTU
Physical Properties
Housing	Metal
Weight	1.85 kg ( 4.07 lb )
Dimensions (L x W x H)	28.85 x 18.99 x 9.66 cm (11.36 x 7.48 x 3.8 in.)
