TC-H35

Product Code : U933TRDY

Brand Category : Simultaneous translation system by IR

Description

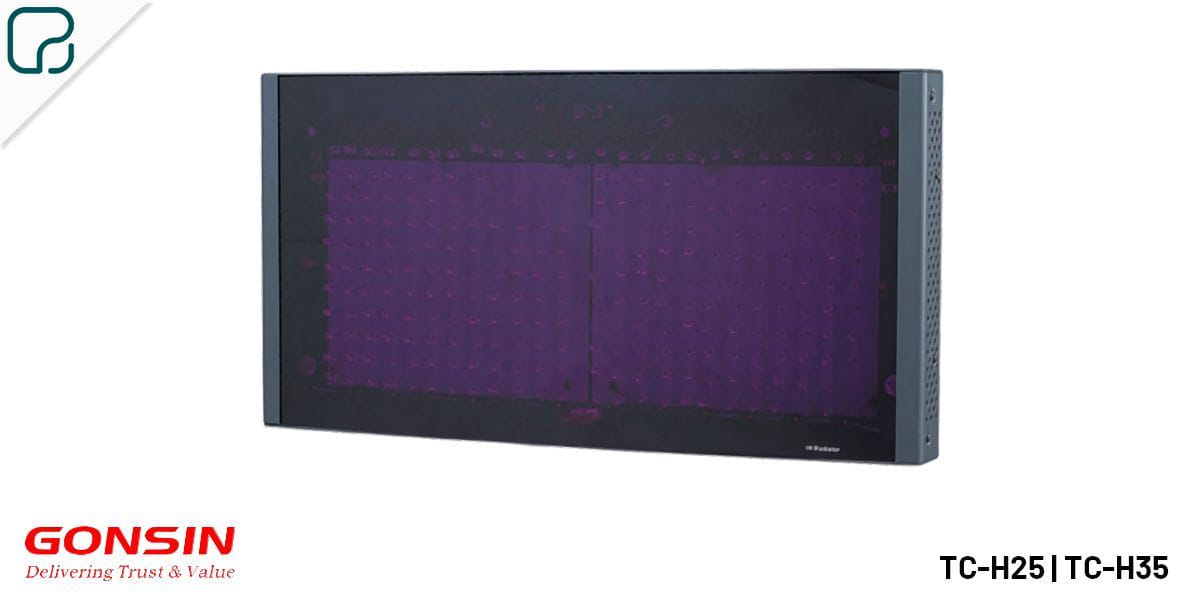

Radiator IR 35 W (60 m)

High-power infrared radiator with the possibility of connection at 50% power to adapt to rooms of different sizes. Featuring a high-frequency sensor that automatically turns the power built into the radiator on and off upon receiving the carrier signal, automatic gain control to ensure maximum efficiency of diode operation, and silent, maintenance-free convection cooling for continuous operation. Several infrared radiators can be connected in cascade to extend the range of the system. Installation on wall or ceiling, or on a tripod (GX-315, option).

Technical Specification

Frequency band	2.0 - 6.0 MHz
IR output power	25 W / 35 W
Output level	High/low switchable
Maximum range	40 m / 60 m
Angle at medium intensity	± 22°
RF output impedance	55 - 75 ohms
RF output voltage	100 - 2000 mV
Consumption	55 W (8 W in stand by)
Power supply	110 / 240 V AC, 50 ~ 60 Hz
Temperature range	0 ~ 40 ºC
Cable	75 Ω-4 coaxial, BNC connectors
Dimensions (mm)	450 × 211 × 82 mm
