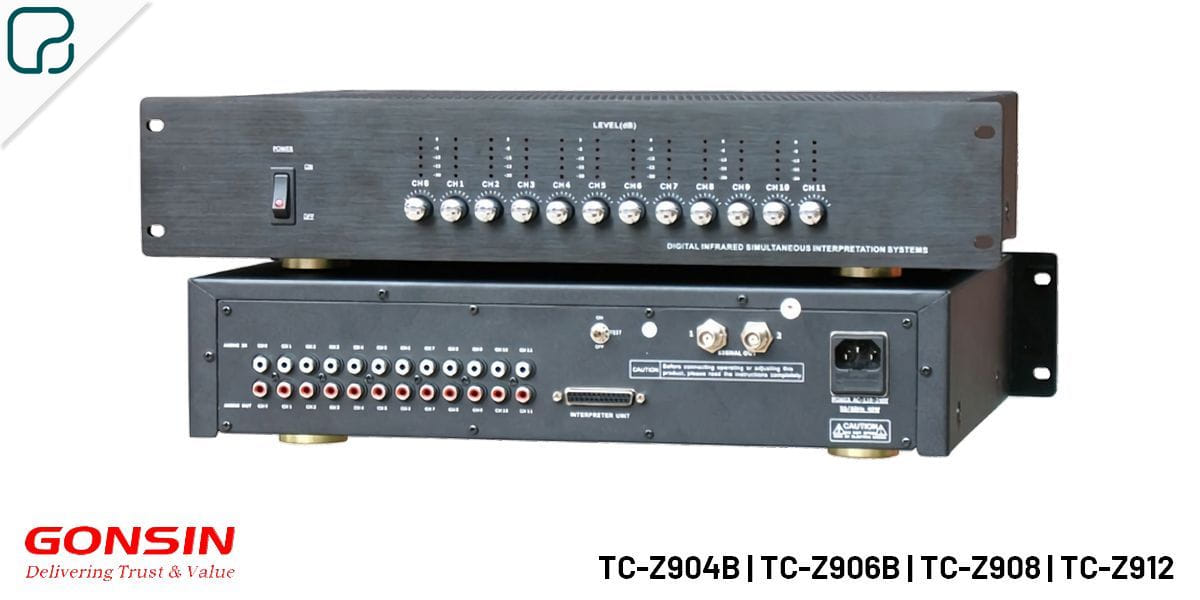

TC-Z906B

Product Code : U933TC6

Brand Category : Simultaneous translation system by IR

Description

6 channel IR transmitter

Central unit of the infrared simultaneous translation system. It modulates and transmits the audio channels at different carrier frequencies to the infrared radiators. It includes level controls and indicators for each channel, independent audio outputs, two BNC connectors to connect up to two lines of infrared radiators and the ability to connect multiple interpreter desks.

Technical Specification

Modulation mode	FM / PLL superheterodyne
Frequency band	2.0 ~ 6.0 MHz
Frequency response	100 ~ 14,000 Hz
Distortion at 1kHz	< 0>
Channel separation	30 dB
SNR ratio	> 75 dB
Consumption	40 W
Power supply	110/240 V AC, 50 - 60 Hz
Dimensions mm (W×H×D)	430 × 99 × 325 (2 u rack)
Weight	7.6 kg
