TC-Z912

TC-Z912

Product Code : U933TC12

Brand Category : Simultaneous translation system by IR


Description

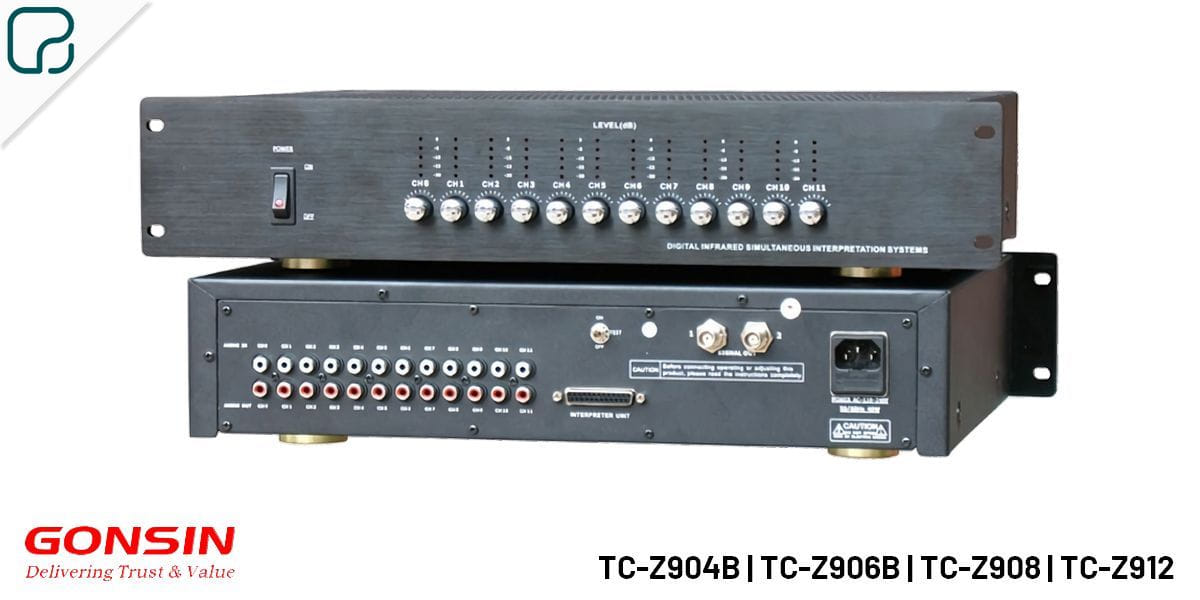

12 channel IR transmitter



Central unit of the infrared simultaneous translation system. It modulates and transmits the audio channels at different carrier frequencies to the infrared radiators. It includes level controls and indicators for each channel, independent audio outputs, two BNC connectors to connect up to two lines of infrared radiators and the ability to connect multiple interpreter desks.


Add to Query Cart PDF Download


Technical Specification


Modulation mode

FM / PLL superheterodyne

Frequency band

2.0 ~ 6.0 MHz

Frequency response

100 ~ 14,000 Hz

Distortion at 1kHz

< 0>

Channel separation

30 dB

SNR ratio

> 75 dB

Consumption

40 W

Power supply

110/240 V AC, 50 - 60 Hz

Dimensions mm (W×H×D)

430 × 99 × 325 (2 u rack)

Weight

7.6 kg
