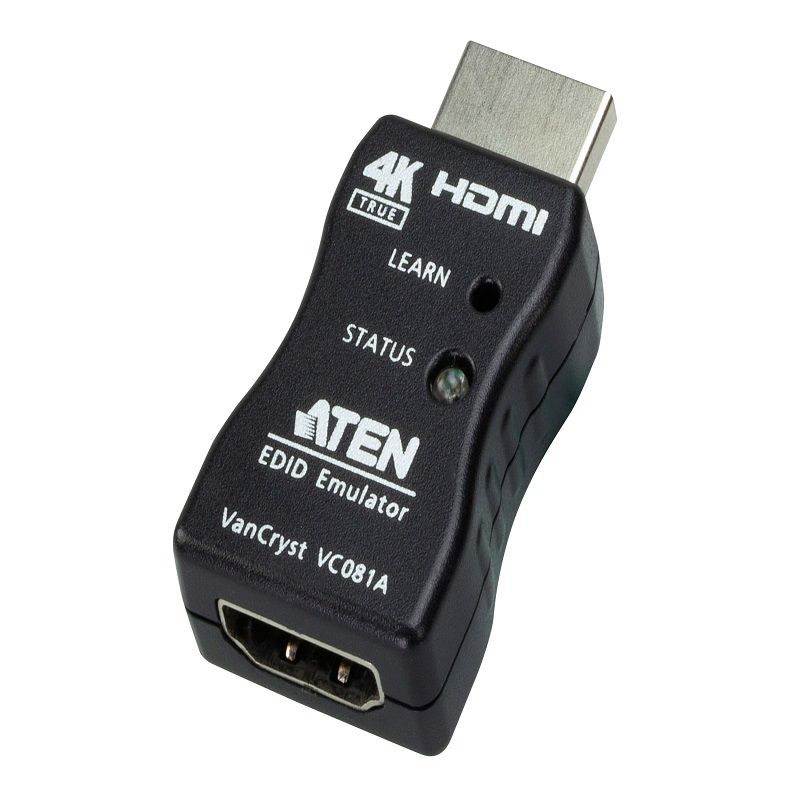

True 4K HDMI EDID Emulator Adapter

Product Code : VC081A

Brand Category : Video Converters

Description

Manages EDID communication between connected devices
Effectively learns and saves the EDID from the connected HDMI display via single pushbutton and relays it to the video source
HDMI (3D, Deep Color, True 4K); HDCP 2.2 compliant
Supports superior video quality up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4) via EDID Learning Mode
LED indicators to show learning status
Powered by HDMI source
Compact and lightweight design

Technical Specification

Video Input
Interfaces	1 x HDMI Type A Male (Black)
Impedance	100 Ω
Video Output
Interfaces	1 x HDMI Type A Female (Black)
Impedance	100 Ω
Video
Compliance	HDMI (3D, Deep Color, True 4K) HDCP 2.2 Compatible Consumer Electronic Control (CEC)
Max. Resolution	Default: 1080P@60Hz Learning: 3840x2160@60Hz 4:4:4 & 4096x2160@60Hz 4:4:4
EDID Settings	EDID Mode: Default / Learning
Connectors
Power	Bus-powered (5V DC from source device)
Switches
Mode Switch	EDID Learning
LEDs
Status	Learning (Blue x 1)
Power Consumption	DC5V:0.1WBTU
Environmental
Operating Temperature	0 - 50 ºC
Storage Temperature	-20 - 60 ºC
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Plastic
Weight	0.08 kg ( 0.18 lb )
Dimensions (L x W x H)	4.40 x 2.40 x 1.18 cm (1.73 x 0.94 x 0.46 in.)
Carton Lot	20 pcs
