True 4K HDMI Optical Receiver (4K@300m (K1, MM) / 10km (K2, SM))

True 4K HDMI Optical Receiver (4K@300m (K1, MM) / 10km (K2, SM))

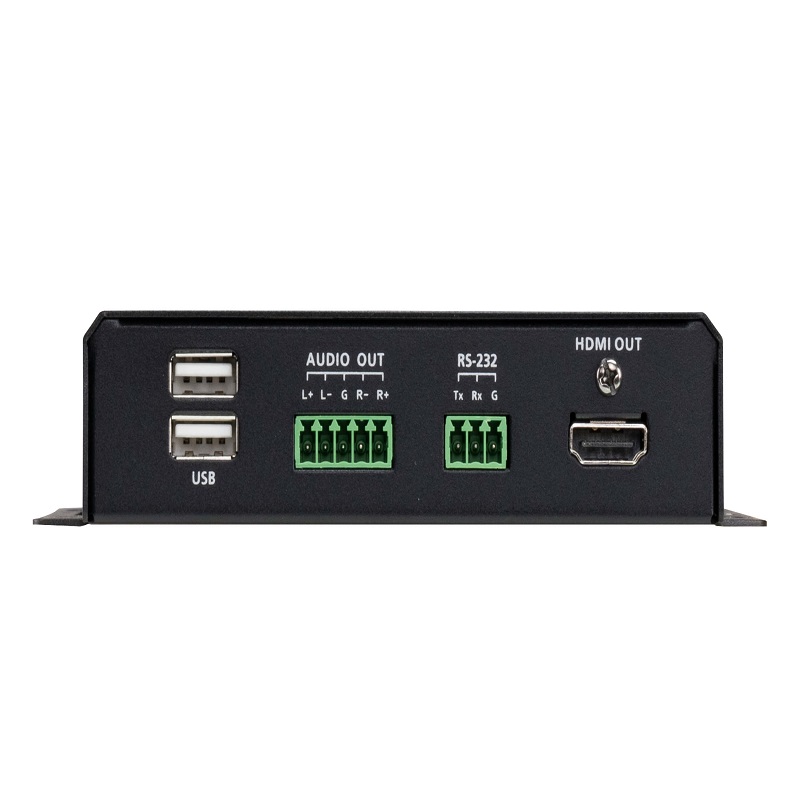

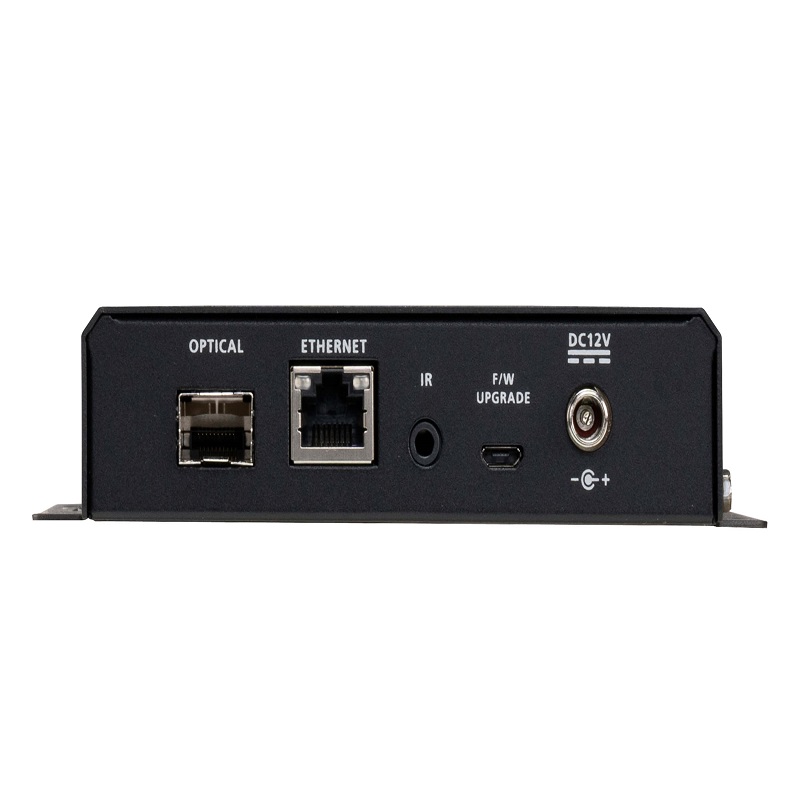

Product Code : VE883AR

Brand Category : Video Extenders

Description

  • Extends HDMI video, audio, IR, RS-232 control, and Ethernet signals over a duplex fiber optic cable across up to 10 km*
  • Lossless transmission of up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4) signals
  • HDMI (3D, Deep Color, True 4K); HDCP 2.2 compliant
  • ATEN’s exclusive FarSmooth technology – prevents lagging and freezing by matching the output rates to the input rates and ensures the 4K@60Hz video display to be stable, smooth and identical to the source through 10 Gbps bandwidth
  • Supports transparent USB 2.0 signals for expanded connectivity with USB peripherals at a maximum transfer rate of 25MB/s
  • Bi-directional IR signal transmission – IR transmission is processed one direction at a time, ranged from 30 kHz to 56 kHz
  • Features RS-232 serial port for connecting peripherals such as touch screens, and barcode scanners
  • Supports batch upgrades using Firmware Upgrade Utility
  • Built-in 8 kV / 15 kV ESD protection
  • Plug-and-play
  • Hot-pluggable
  • Rack-mountable

    Note:
    • The maximum transmission distance may vary depending on the fiber type, bandwidth, connector splicing, losses, model, chromatic dispersion, environmental factor, and kinks.
    • For long distance transmissions, ATEN recommends using SFP+ modules to allow compatibility with single or multi mode fibers. Depending on the chosen package (VE883AK1 or VE883AK2), different SFP+ modules are supplied:
      • VE883AK1: 10 Gbps/300m SFP+ Duplex Multi Mode Transceiver
      • VE883AK2: 10 Gbps/10 km SFP+ Duplex Single Mode Transceiver
    • ATEN recommends using Single Mode fibers that conform to IEC 11801 (OS1, OS1a, OS2), and Multi Mode fibers that conform to IEC 11801 (OM3, OM4) specifications.
    • The Device is class 1 laser product. It meets the safety regulations of IEC/EN 60825-1, 21 CFR 1040.10, and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.

Add to Query Cart PDF Download

Technical Specification

Video Output
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance Up to 5 m
Video
Max. Data Rate 10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock 594 MHz
Compliance HDMI (3D, Deep Color, 4K)
HDCP 2.2/2.3 Compatible
Max. Resolution 4096x2160@60Hz (4:4:4) / 3840x2160@60Hz (4:4:4)
Max. Distance 1 x SFP Module (*Note)
VE883AK1: 4Kx2K/60Hz 4:4:4 up to 300m (MM, OM3, Black)
VE883AK2: 4Kx2K/60Hz 4:4:4 up to 10km (SM, Blue)
Audio
Input N/A
Output 1 x Terminal Block, 5 pole (Green)
Connectors
Unit To Unit 1 x bi-directional SFP (LC)
Firmware Upgrade 1 x Micro USB (Type B) Female (Black)
Power 1 x DC Jack with locking
Fiber Optics
Data Rate 10.3 Gbps
Wavelength VE883AK1: 850 nm
VE883AK2: 1310 nm
Fiber Type VE883AK1: Multimode(MM), OM3, LC Duplex Type
VE883AK2: Singlemode(SM), LC Duplex Type
Control
USB Channel 2 x USB Type A Female (White)
RS-232 Channel 1 x Terminal Block, 3 pole (Green)
IR Channel 1 x Mini Stereo Jack Female (Black);
30K~56 KHz full range transmission
Ethernet Channel 1 x GbE (RJ-45 Female)
LEDs
Power 1 (Green)
Link 1 (Orange)
Video Output 1 (Orange)
Power Consumption DC12V:6.5W:52BTU
Environmental
Operating Temperature 0-40°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.66 kg ( 1.45 lb )
Dimensions (L x W x H) with bracket 16.94 x 14.69 x 3.00 cm
(6.67 x 5.78 x 1.18 in.)
Dimensions (L x W x H) without bracket 16.60 x 12.49 x 2.90 cm
(6.54 x 4.92 x 1.14 in.)
Note 1. Operating distance is approximate. A typical maximum distance may vary depending on factors such as fiber type, bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks.
2. It is recommended that you use Single Mode fibers that conforms to IEC 60793- 2-50 B1.1 or ITU-T G.652.B specifications; Use Multi Mode fibers that conform to IEC 11801 (OM3) specifications.
3. The Device is class 1 laser product. It meet the safety regulations of IEC-60825, FDA 21 CFR 1040.10, and FDA 21 CFR 1040.11.



HDMI Fibre Extender in UAE



HDMI Fiber Extenders allow carrying out high-definition, long-distance video and audio transmission with the least latency. It confirms the crystal-clear 4K resolution over fibre optics. It is perfect for interference-free and reliable connections.



WTC Systems LLC is here with the top-tier HDMI fibre extenders in the UAE from ATEN. Our products are just ideal for different kinds of applications, which include broadcasting, digital signage, and control rooms. The advanced HDMI Fibre Extenders ensures superior signal quality with least latency and even better ranges.



Trust us to give you the highly advanced HDMI extension solutions in the UAE, Middle East and North African regions. We keep things easy to manage and handle. Contact us now for more information.
