U-PB

Product Code : L358FU

Brand Category : Call and signaling modules

Description

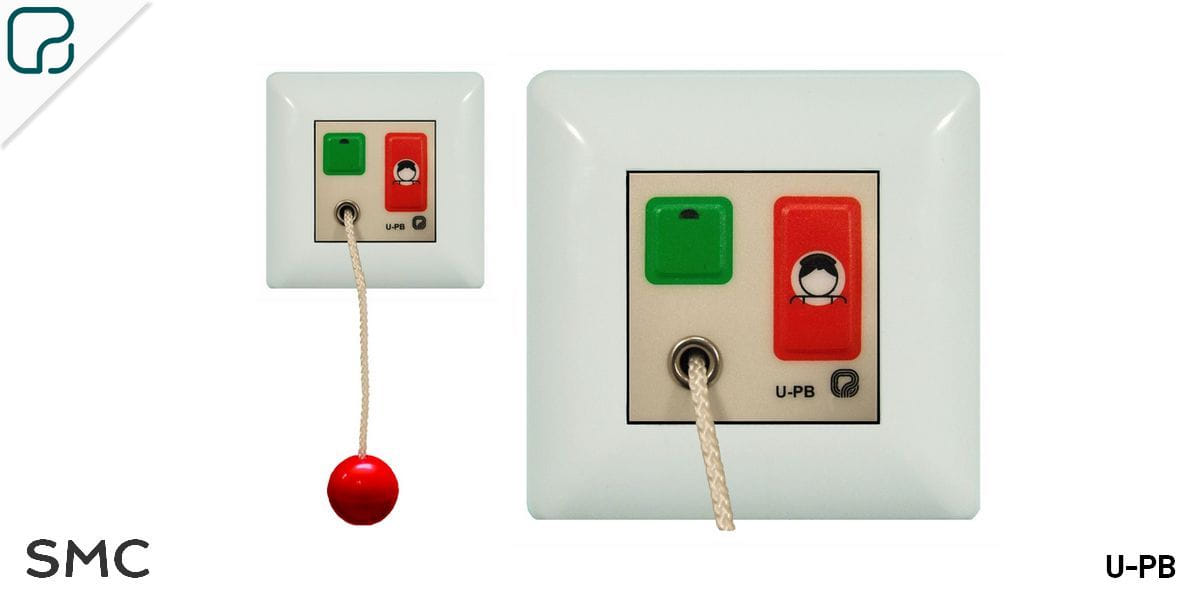

Call and presence module with pull-cord. Standar box, without frame

Signalling and call mechanism for flush mounting and signalling of call to the centres. It is connected to a remote unit (UR or UC series) or to a TH-02F/TH-03F intercommunicator to complete the equipment of the call points. The mechanism has presence and normal call buttons, pull cord for emergency call, call in progress and active presence LEDs, and the possibility of making an emergency call. For universal box, it does not include a frame (M-420W).

Technical Specification

Power supply	24 V DC
Consumption	24 mA
Dimensions (mm)	45 x 45 x 45
Finish	ABS with ivory cover
Connections (push buttons)	2 x 0,25 mm2 (to TH / UR)
Connections (LEDs)	3 x 0,25 mm2 (to TH / UR)
