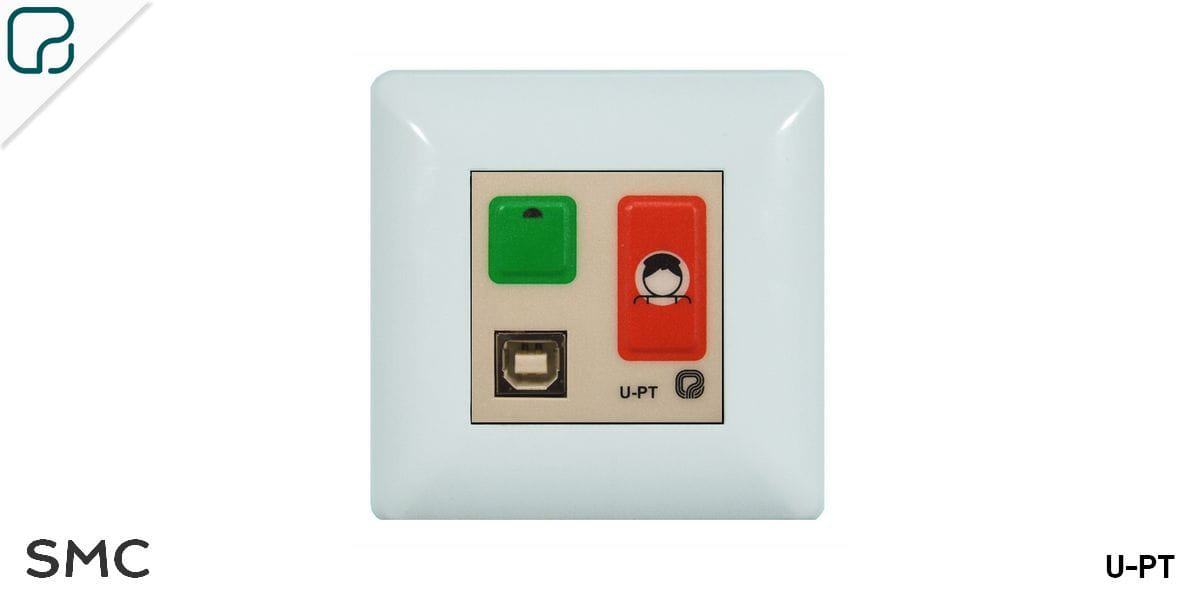

U-PT

Product Code : L356FU

Brand Category : Call and signaling modules

Description

Call and presence module with connector for handheld calling unit. Standar box, without frame

Signalling and call mechanism for flush mounting and signalling of call to the centres. It is connected to a remote unit (UR or UC series) or to a TH-02F/TH-03F intercommunicator to complete the equipment of the call points. The mechanism has buttons for presence and normal call, emergency call, USB connector for U-ML control, disconnected control warning and LEDs of call in progress and active presence. For universal box, it does not include a frame (M-420W).

Technical Specification

Power supply	24 V DC
Consumption	24 mA
Dimensions (mm)	45 x 45 x 45
Finish	ABS with ivory cover
Connections (push buttons)	2 x 0,25 mm2 (to TH / UR)
Connections (LEDs)	3 x 0,25 mm2 (to TH / UR)
